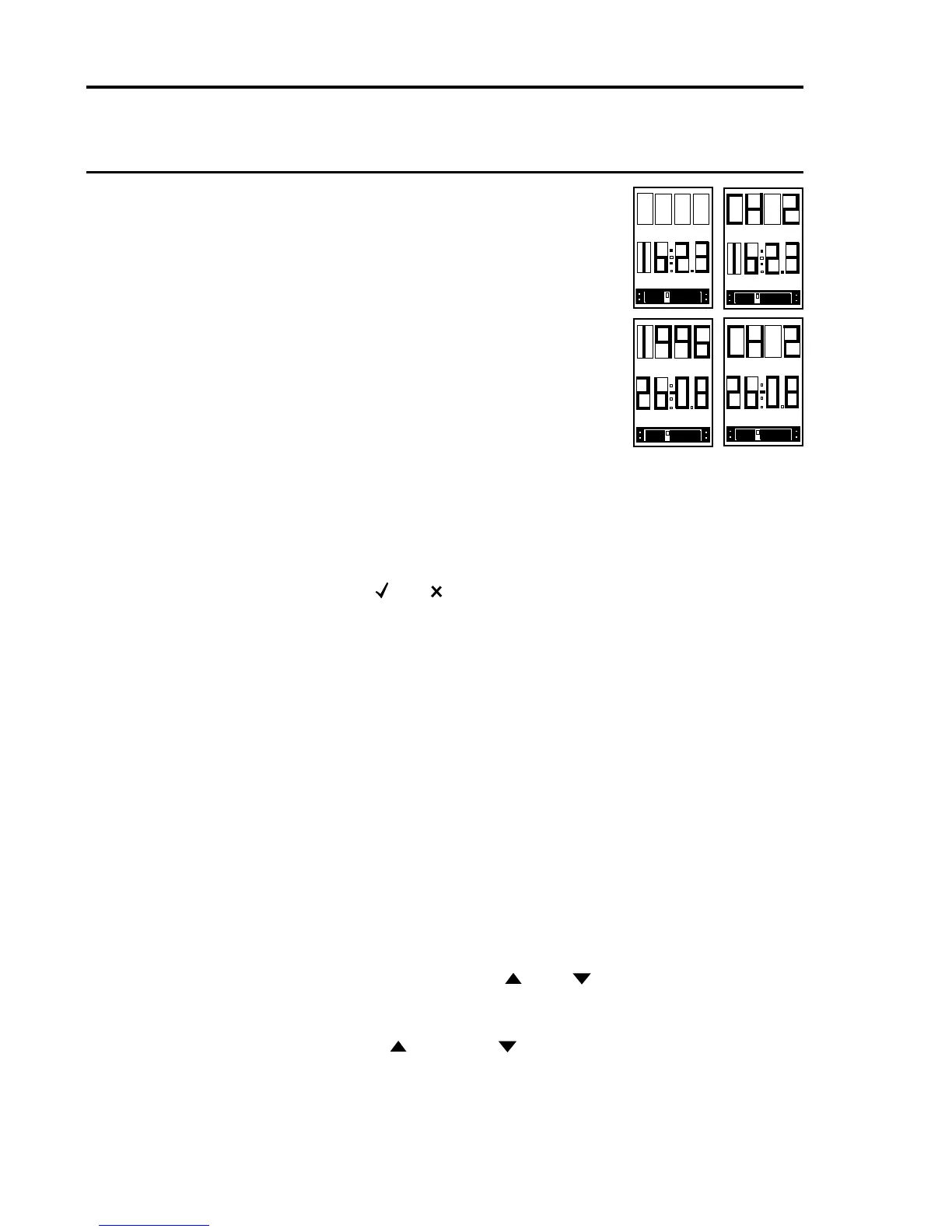

(2) Push the CLOCK push-button and the
selected channel card display will indicate
the present time alternating with the
selected channel number.
Note: The clock uses the 24 hour format.
(3) Push the CLOCK push-button a second
time and the selected channel card display
will indicate the present day, month and
year alternating with the selected channel
number.
Note: 1. The display format for day and month can read either DD.MM
or MM.DD depending on the conīæguration of the system.
2. Further pushes of the CLOCK push-button will toggle the
display between time and date.
(4) Push the (
) or ( ) push-buttons or wait 30 seconds to exit the
CLOCK mode.
4.8 Maintenance Record Print Out
A detailed printout of the status for each channel or a summary of the
whole rack can be initiated using the Engineering Card. The data is fed
in ASCII text format to the engineering serial port on the Engineering
Card front panel.
To output the maintenance record for each channel card, proceed as
follows:
(1) Plug a RS232 printer into the Engineering card serial port.
(2) Push and hold the required channel card RESET/SELECT push-
button for approximately 1.5 seconds until the selected icon appears
on the channel display.
(3) Use the Engineering Card (
) and ( ) push-buttons to select the
required channel.
(4) Push the up (
) and down ( ) buttons simultaneously. The selected
channel card will display PRN while outputting the following data:
