CHAPTER 2 - SYSTEM DESCRIPTION
3. CABINETS
Two wall mounted cabinets are used to house:
a. the full width 16 card front access rack,
(Part Number 05701-A-0451)
b. or the eight card half width front access rack.
(Part Number 05701-A-0452)
A front door on each cabinet provides security and dust protection, while
a clear panel in the door allows the channel card displays to be viewed
when the door is closed. The base of each cabinet contains a selection
ofpreformedknockoutcableglandentries.Aremovableplateisxed
to the inside of the cabinet for mounting accessories.

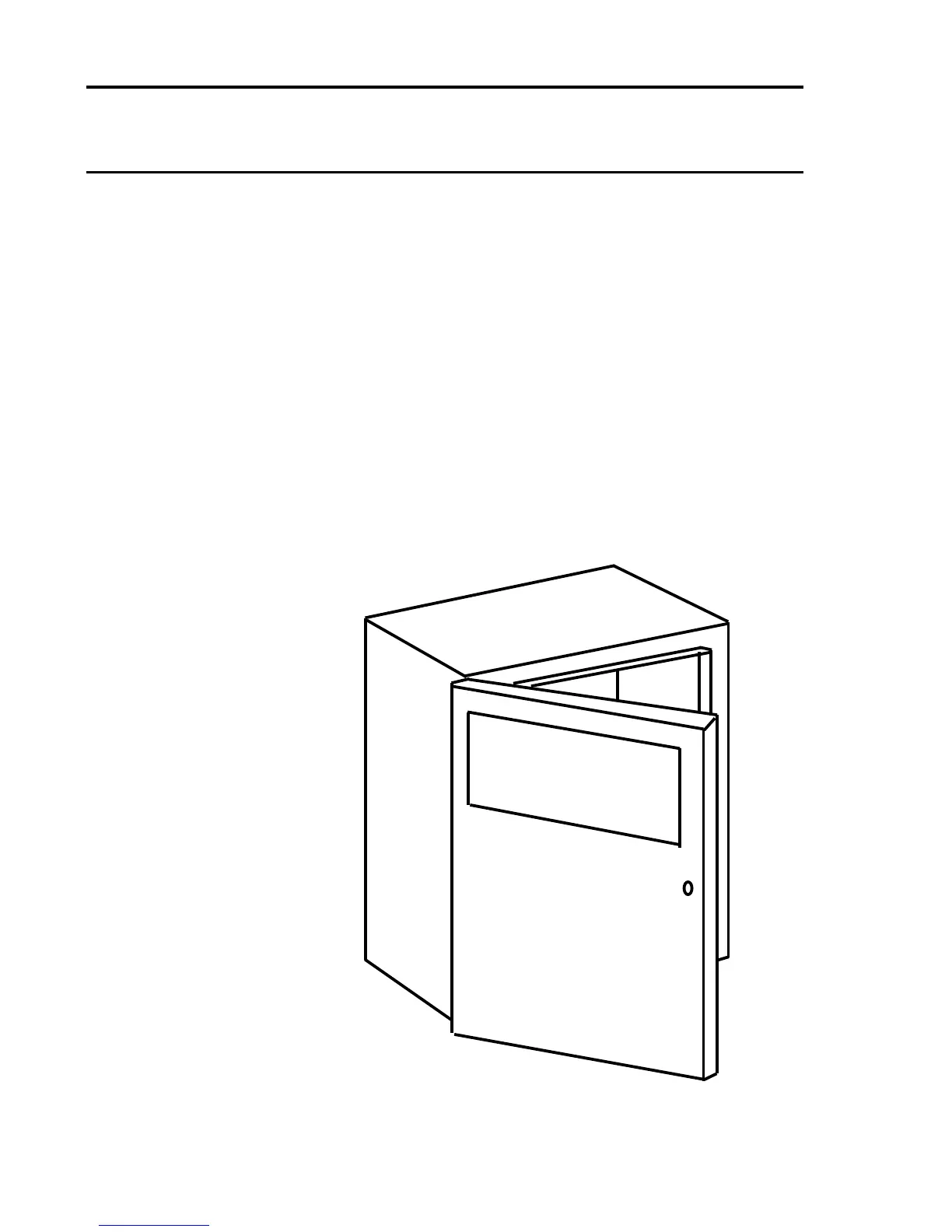

Cabinet
