MAN0448_Issue 13_01-2010 5704 Control System
005704-M-5001 A03249
CHAPTER 2 - SYSTEM DESCRIPTION

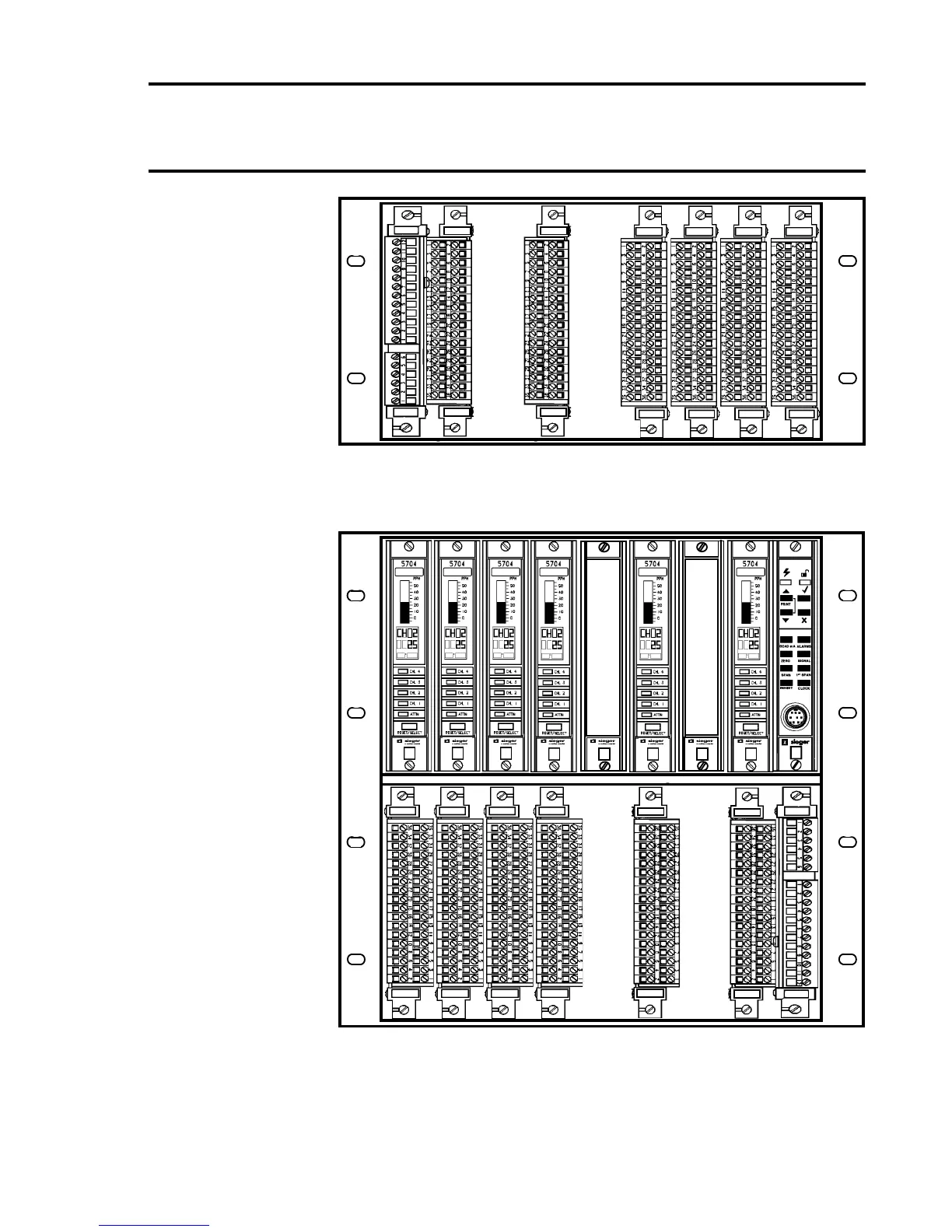

Typical Eight Card Front Access Rack
(Relay/Interface Chamber Front Cover Removed)
Typical Eight Card Rear Access Rack - Rear View
