CHAPTER 4 - INSTALLATION INSTRUCTIONS
13.2 Analogue Output

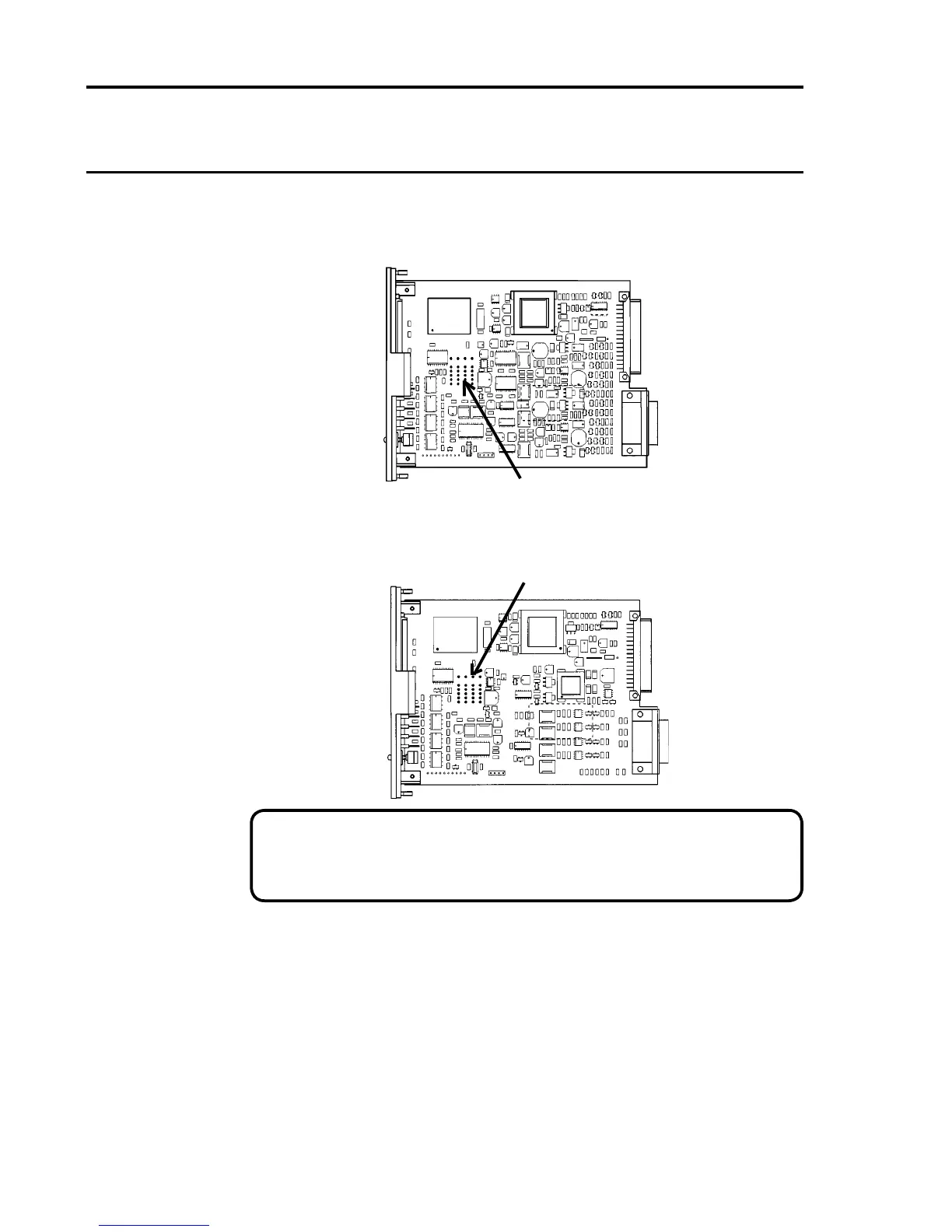

Analogue Output Modules, when tted, plug into the Four Channel
Control Card as shown below:
CAUTION
Connecting the analogue output to a loop voltage in excess of 40V
may cause permanent damage to the analogue output module.
The Analogue Output Modules provides a current loop output that
follows each sensor signal level. The loop output is isolated from the
control card supply and provides:
a. fully isolated operation per card when powered from an external
supply.
b. Non-isolated operation when powered from the System 57 power
supply.
The analogueoutputs canbe congured for 0 -20mA or 4- 20mA
outputmodes.Checkthecongurationsheetsuppliedwiththesystem
Plug-in Sockets for Analogue Output Modules:
04200-A-0145 Sink
04200-A-0146 Source
(From left to right - Channel 1 2 3 4)
