CHAPTER 2 - SYSTEM DESCRIPTION
2. RACKS
Each rack assembly contains a sub-rack, Engineering Card, DC Input
Card, key kit and where necessary an interconnecting cable.
Dependentuponconguration,thecontrolsystemishousedinoneof
fourstandardsizesub-racksasfollows:
a. Full 19 inch wide by 3U high - Part Number 05701-A-0511,
  forreareldwiringconnections.
b. Full 19 inch wide by 6U high - Part Number 05701-A-0501,
  forfronteldwiringconnections.
c. Half 19 inch wide by 3U high - Part Number 05701-A-0512,
  forreareldwiringconnections.
d. Half 19 inch wide by 6U high - Part Number 05701-A-0502,
  forfronteldwiringconnections.
All four versions have two separate chambers. One is sealed against
electromagnetic interference and contains the control cards while the
other chamber contains the relay interface cards. A backplane between
the two chambers provides a path for signal routeing between individual
control cards and the Engineering Card.

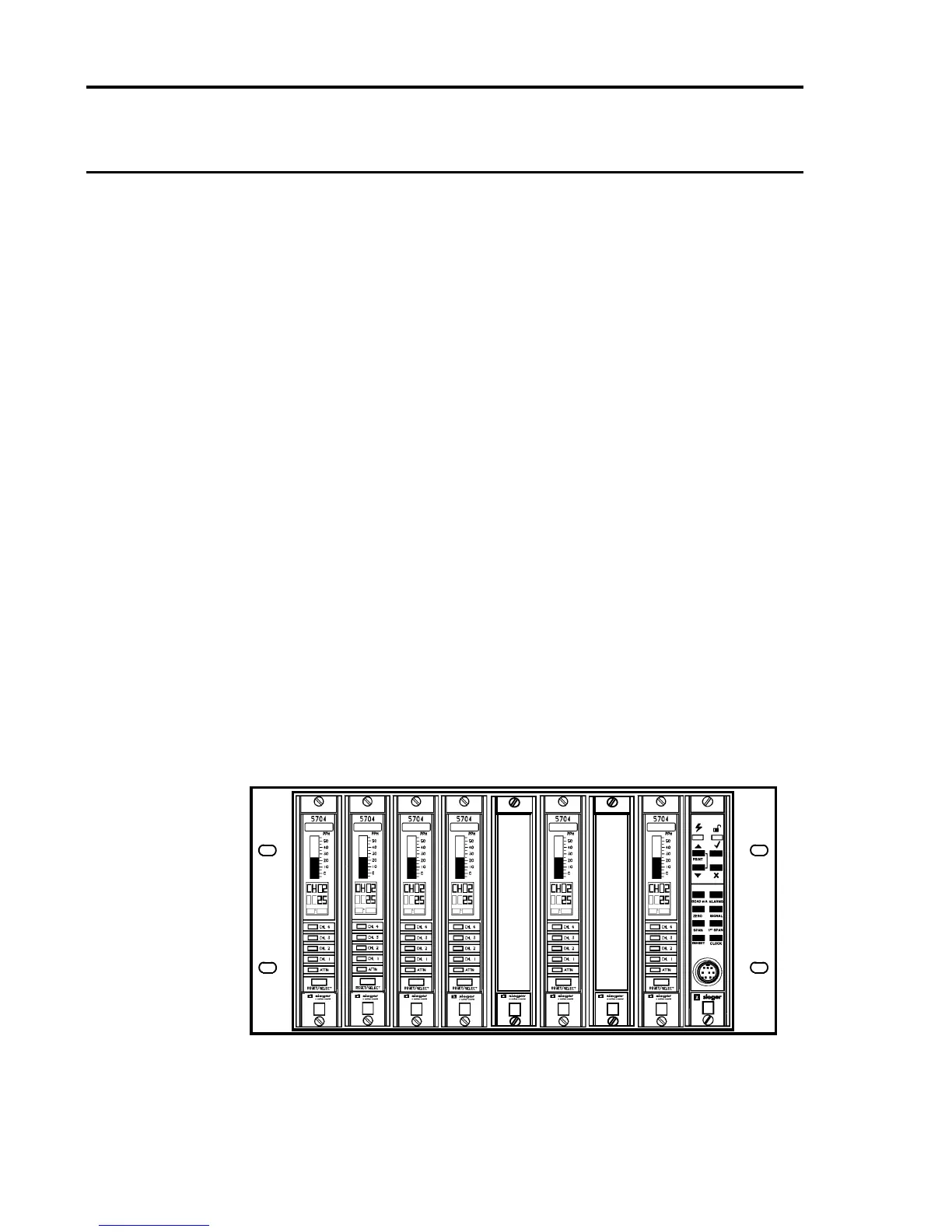

Typical Eight Card Rear Access Rack - Front View
