Honeywell 5704

4-13
CHAPTER 4 - INSTALLATION INSTRUCTIONS
MAN0448_Issue 13_01-2010 5704 Control System
005704-M-5001 A03249

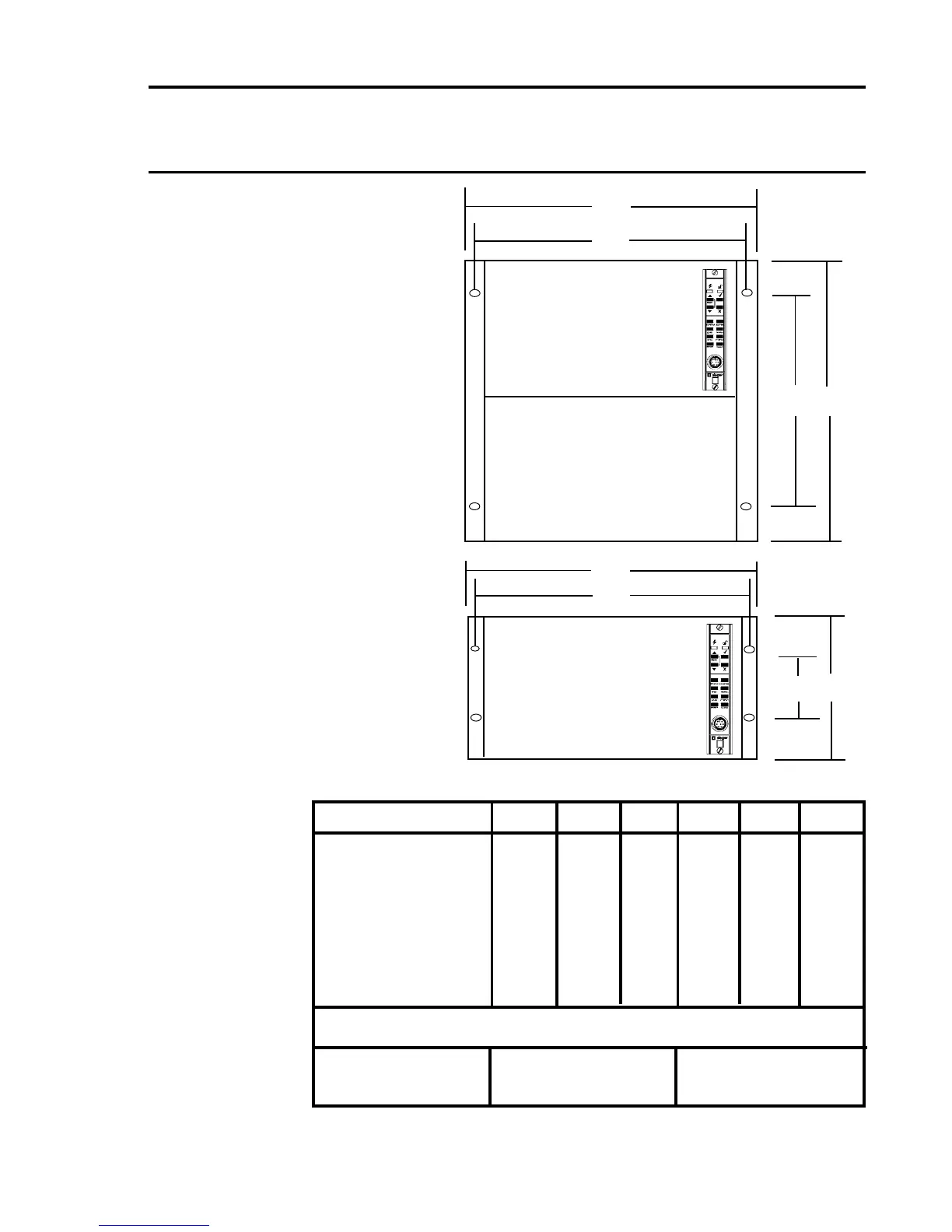

Rack Assembly A B C D E Depth
8 Way Rear Access 279.4 261.9 57.0 37.8 132.5 287.6
8 Way Front Access 279.4 261.9 190.5 37.8 266.0 217.6
16 Way Rear Access 482.6 465.1 57.0 37.8 132.5 287.6
16 Way Front Access 482.6 465.1 190.5 37.8 266.0 217.6
Panel Cut-out Clearance
8 Way Width: 247 Height as column E
16 Way 450 as column E
A
B
C E
D
(holes 6mm
diameter)
Rack Table of Sizes (mm)
A
B
C E
D
(holes 6mm
diameter)
