Section 9: System Operation
Operation of the control panel is simple. Menus guide you step-by-step through operations. This section of the manual is an overview of the
Operation Menus. Please read this entire section carefully before operating the panel.
9.1 Annunciator Description
Figure 9.1 shows the annunciator that is part of the control panel board assembly.
9.1.1 LCD Display
The control panel LCD displays system messages, annunciates alarms, supervisories and troubles, provides status information, and prompts
for input. These messages can be up to 160 characters, displaying over four lines of 40 characters each. Annunciator keys beep when they are
pressed.
9.1.2 Banner
The banner is the message that displays on the control panel when the system is in normal mode (no alarm or trouble condition exists and
menus are not in use). You can create a customized message that will display instead of the internal (default) message. See Section 8.6.7 for
information on customizing the banner.
ENTER
NEXT
BACK
BACK
NEXT
NEXT
ACK
DRILL
RESET
SILENCE
1
4
7
8
9
*
0
#
5
6
2
3
F1
F2
F3
F4
BACK
silence alarms/troubles
single key acknowledge
reset alarms/troubles
fire drill
Arrow keys for moving
through menus. Enter
key accepts selections.
number keys for
entering numeric data
programmable
function keys
five system status LEDs
160-character LCD
Messages display on 4 lines
with up to 40 characters per line.

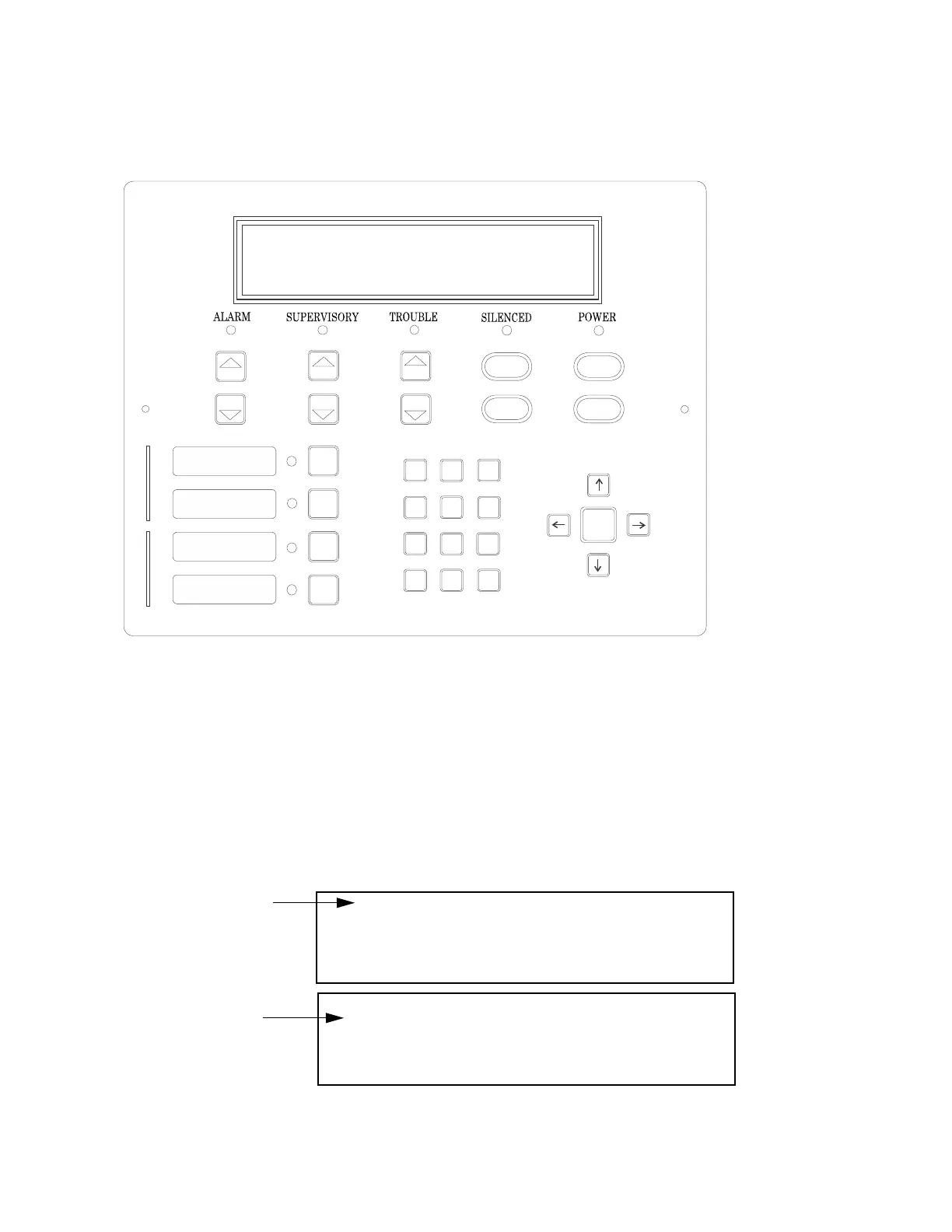

Figure 9.1 Control Panel Annunciator
Site 1
Honeywell - Model IFP-300
ALL SYSTEMS NORMAL
08/03/21 01:15:06PM
Site 1
ABC COMPANY - FIRE SYSTEM
ALL SYSTEMS NORMAL
08/03/21 01:15:06PM
internal banner text
custom banner
example
Figure 9.2 Banner Display Examples
Site 1
Honeywell - Model IFP-300
ALL SYSTEMS NORMAL
08/03/21 01:15:06PM
