Keypad and LED Indicators
LED Color State Definition
Select Keys Red On The corresponding area is active for the ECS message currently playing
Off The corresponding area is not active.
Green On The corresponding area is active for the microphone.
Off The corresponding area is not active for the microphone.
Blink One or more associated network page destination panels are unable to output the
page.
ECS Control LED Green Blink When this LED is blinking, someone has requested control of the ECS System.
On LOC has ECS Control and the user is able to make changes to the ECS.
Off LOC does not have ECS Control.
ECS Message LED Red On The corresponding ECS event was activated by an ECS device.
Off The corresponding ECS event was not activated from this LOC.
Green On The corresponding ECS event is active and was generated from the LOC (or was
activated from another LOC, but this LOC now has ECS Control).
LED Conditions
ALL CALL
ECS CONTROL
NON-ACTIVE
CALL
READY
TO TALK

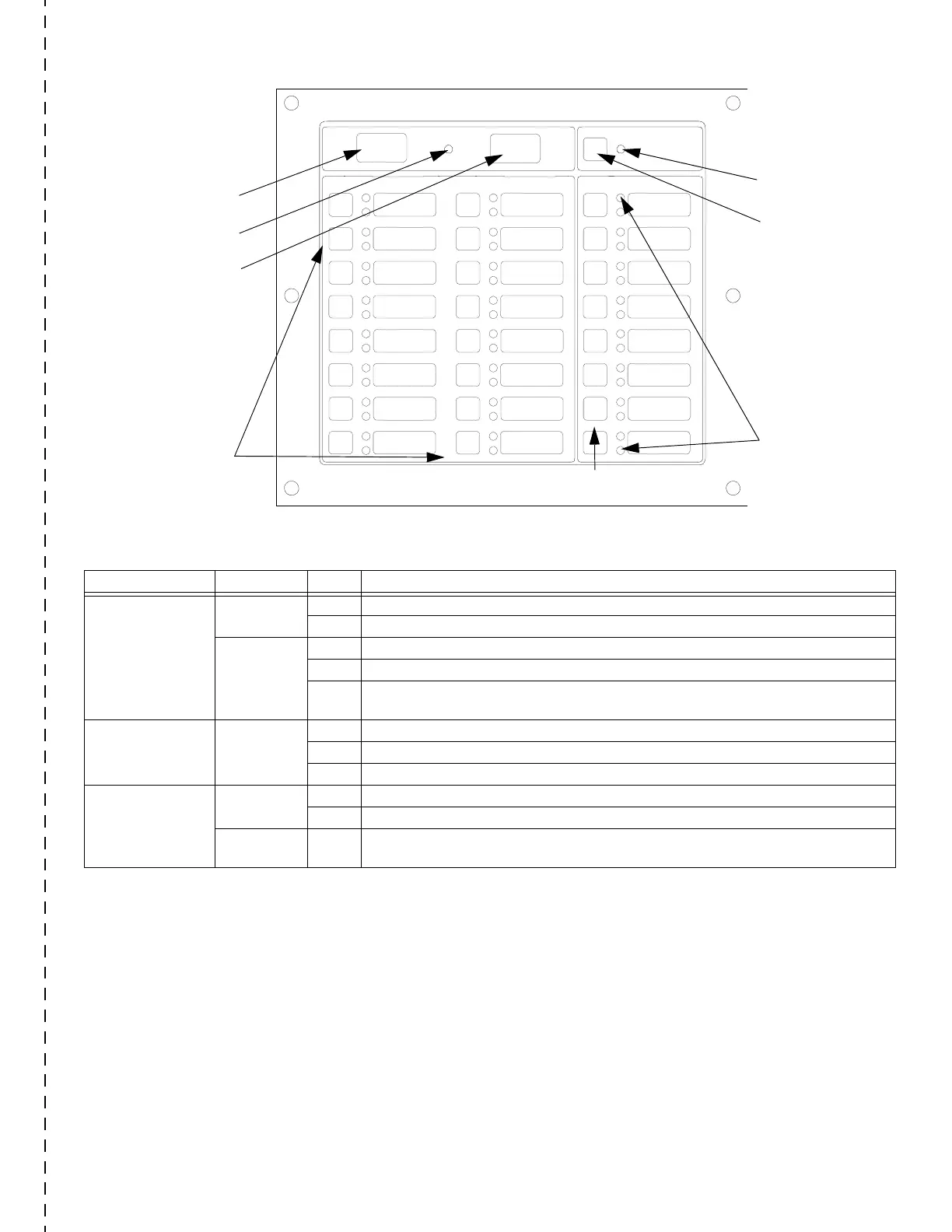

Front View of ECS Keypad
All Call
button
Ready To
Talk LED
Non-Active
Call button
ECS Control
LED
ECS Control
button
output group
select buttons
ECS message 1-8
activate buttons
ECS status/
alarm LEDs
