Control Panel Installation RA-1000 Remote Annunciator Installation
8. Place the trim ring over the back box as shown below.
9. Attach the door assembly to the backbox using the screws provided. Refer to Figure 4.14.
4.7.2 RA-100 Connection to the Panel
Connect the RA-100 to the panel as shown below.
4.8 RA-1000 Remote Annunciator Installation
The RA-1000 is an optional remote annunciator. Up to 16 annunciators can be added to the IFP-300 system.

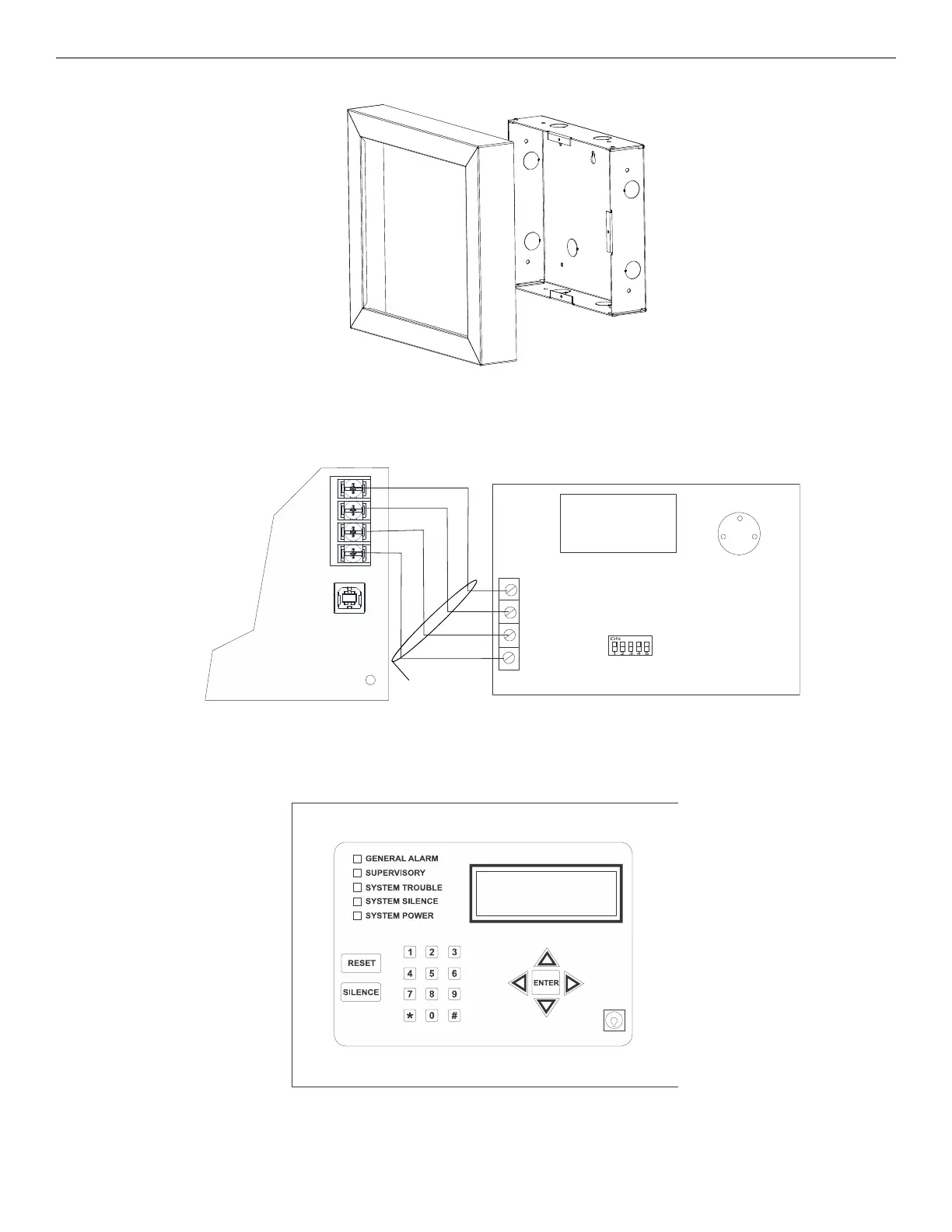

Figure 4.15 Installing Trim Ring
SBUS OUT
- +
A B
SB
SA
S+
S-
Figure 4.16 RA-100 Connection to the Panel
supervised,
power-limited
Class B
FIRE ALARM ANNUNCIATOR
Figure 4.17 RA-1000 Remote Annunciator
