IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022 33
AC Connection Control Panel Installation
4.4 AC Connection
At installation, connect the AC terminals to the power source as shown in Figure 4.5. It may be necessary for a professional electrician to
make this connection.
The AC terminals are rated at 120 VAC, 60 Hz, 3.25A.
4.5 Battery Power
The batteries must be sealed lead acid type. Before connecting the batteries to the FACP, make certain that the interconnect
cable between the batteries is not
connected. Do not connect the battery jumper cable until the system is completely installed.
Observe polarity when connecting the batteries.
The control panel battery charge capacity is 7.0 to 35 AH. The main control cabinet can house batteries up to 18 AH, larger capacity batteries
can be housed in a RBB (see Section 4.5.1 for details). Use 12V batteries of the same AH rating. Determine the correct AH rating as per your
current load calculation (see Section 3.5).
Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase the AH rating. It is recommended that you
replace batteries every five years.
WARNING: RISK OF ELECRICAL SHOCK AND EQUIPMENT DAMAGE
SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL. DISCONNECT ALL SOURCES OF
POWER BEFORE SERVICING. THE PANEL AND ASSOCIATED EQUIPMENT MAY BE DAMAGED BY REMOVING AND/OR
INSERTING CARDS, MODULES OR INTERCONNECTING CABLES WHILE THIS UNIT IS ENERGIZED.

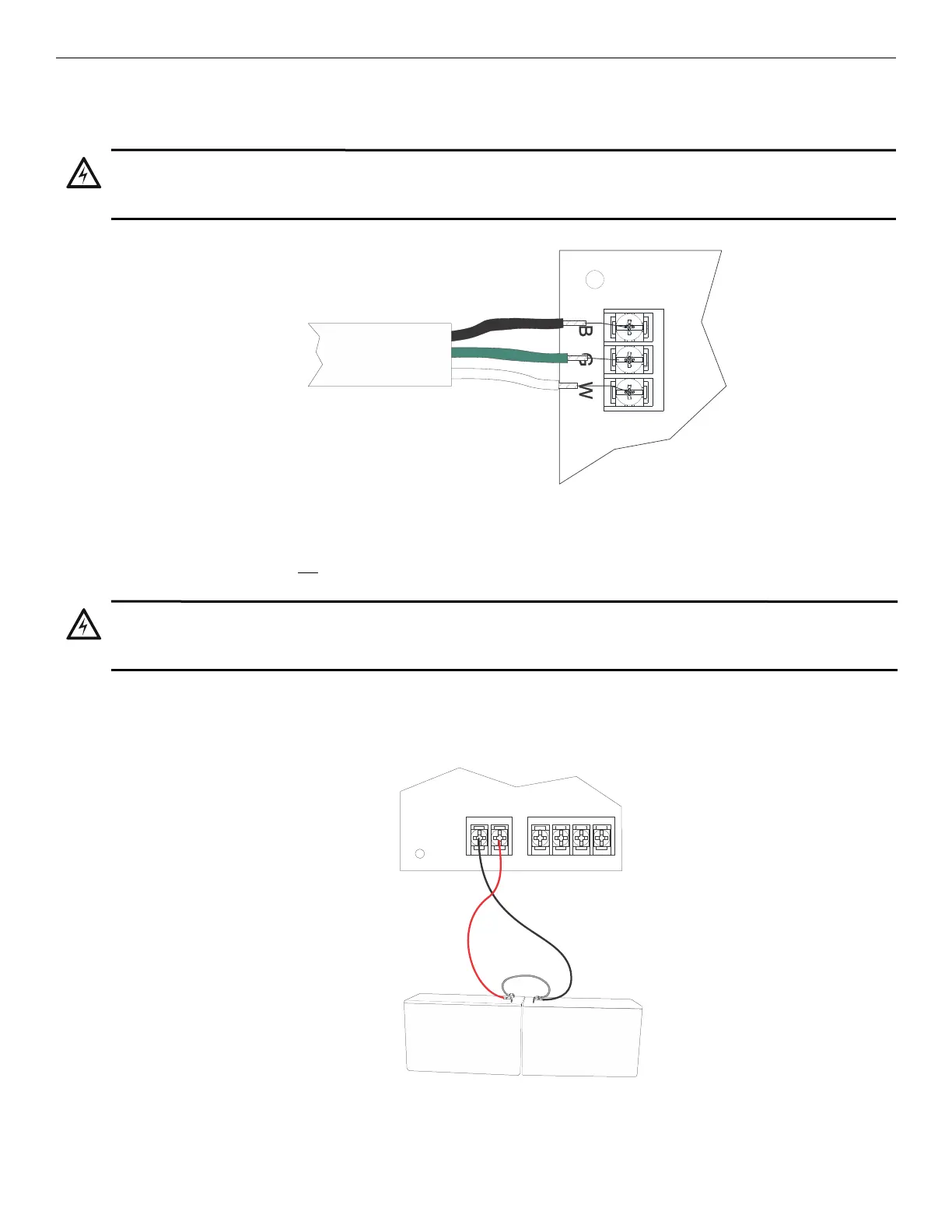

Figure 4.5 AC Power Connection
black
green
white
WARNING: RISK OF PERSONAL INJURY
BATTERY CONTAINS SULFURIC ACID WHICH CAN CAUSE SEVERE BURNS TO THE SKIN AND EYES AND CAN
DESTROY FABRICS. IF CONTACT IS MADE WITH SULFURIC ACID, IMMEDIATELY FLUSH THE SKIN OR EYES WITH
WATER FOR 15 MINUTES AND SEEK IMMEDIATE MEDICAL ATTENTION.
BATTERY
–
+
SLC
OUT– OUT+ IN– IN+
_
_
+
+
battery jumper
(P/N 140694)
shipped with panel
red black
Figure 4.6 Battery Connection
