IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022 69
Setting the Network ID for Each Panel Networking
Fiber-Optic and Twisted-Pair Wiring between Multiple Panels

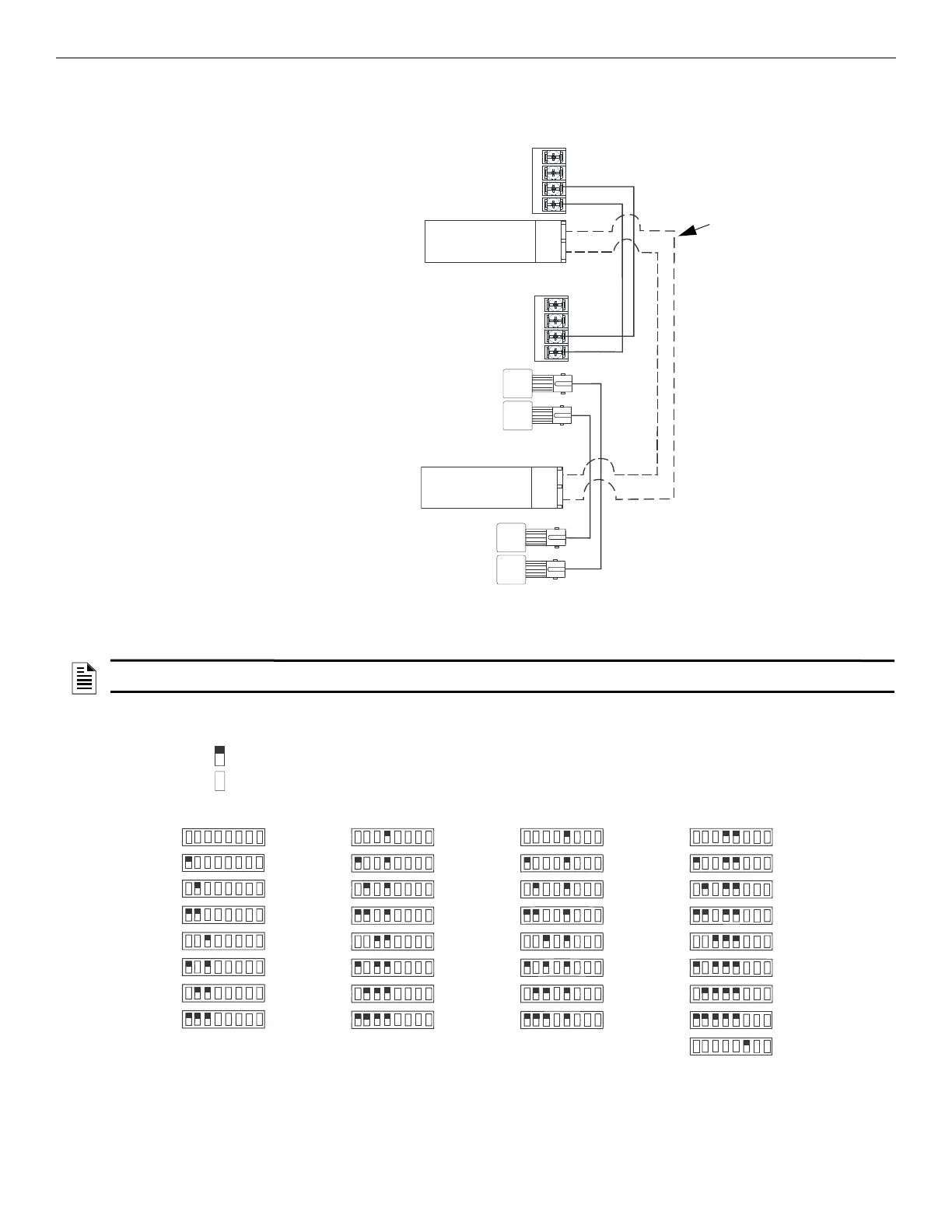

A mixture of fiber-optic cable and twisted pair wiring between multiple panels is shown in Figure 5.10. Class X cabling is shown with dotted
line.
5.5 Setting the Network ID for Each Panel
Use the DIP switch positions 1 through 6 to set the network ID for each panel. Note that switches 7 and 8 are not used and should remain in
the OFF position. See the figure below for possible DIP switch settings. Address 0 is an invalid address and cannot be used.
port 1
Class X
wiring
port 2
last control panel/SK-NIC
next control panel/SK-NIC
first control panel/SK-NIC
port 1
port 2
port 1
port 2
in
out
in
out
in
out
in
out
Figure 5.10 Twisted-Pair and Fiber-Optic Combination Wiring Example
NOTE: It is important that much thought is given when choosing the network IDs for each panel. It is difficult to change the IDs once panel
programming has begun.
17845623 1 7845623 1 7845623 1 7845623
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Figure 5.11 Network ID Settings
ON
OFF
Address Address Address Address
