4.19.3 Using the Addressable Relay Module for City Box Connection
Wire the IDP/SK-RELAY module as shown below. .
12
3
4
1
4
TROUBLESBUS OUT
NC C NO
- +
A B
RELAY1
NC C NO
RELAY2
NC C NO
NAC1 NAC2 NAC3 NAC4
+ - + - + - + -
Intended for connection to a polarity
reversal circuit of a Remote Station
receiving unit having compatible ratings.
The shunt connection is recognized only as a
supplementary signaling unit as part of a local
control unit and is not recognized as an auxiliary
control unit connection per NFPA 72.
NAC circuit 1 used as an example.
Any NAC circuit can be used.
non-supervised,
non-power-limited
city box
orange
yellow
red
brown

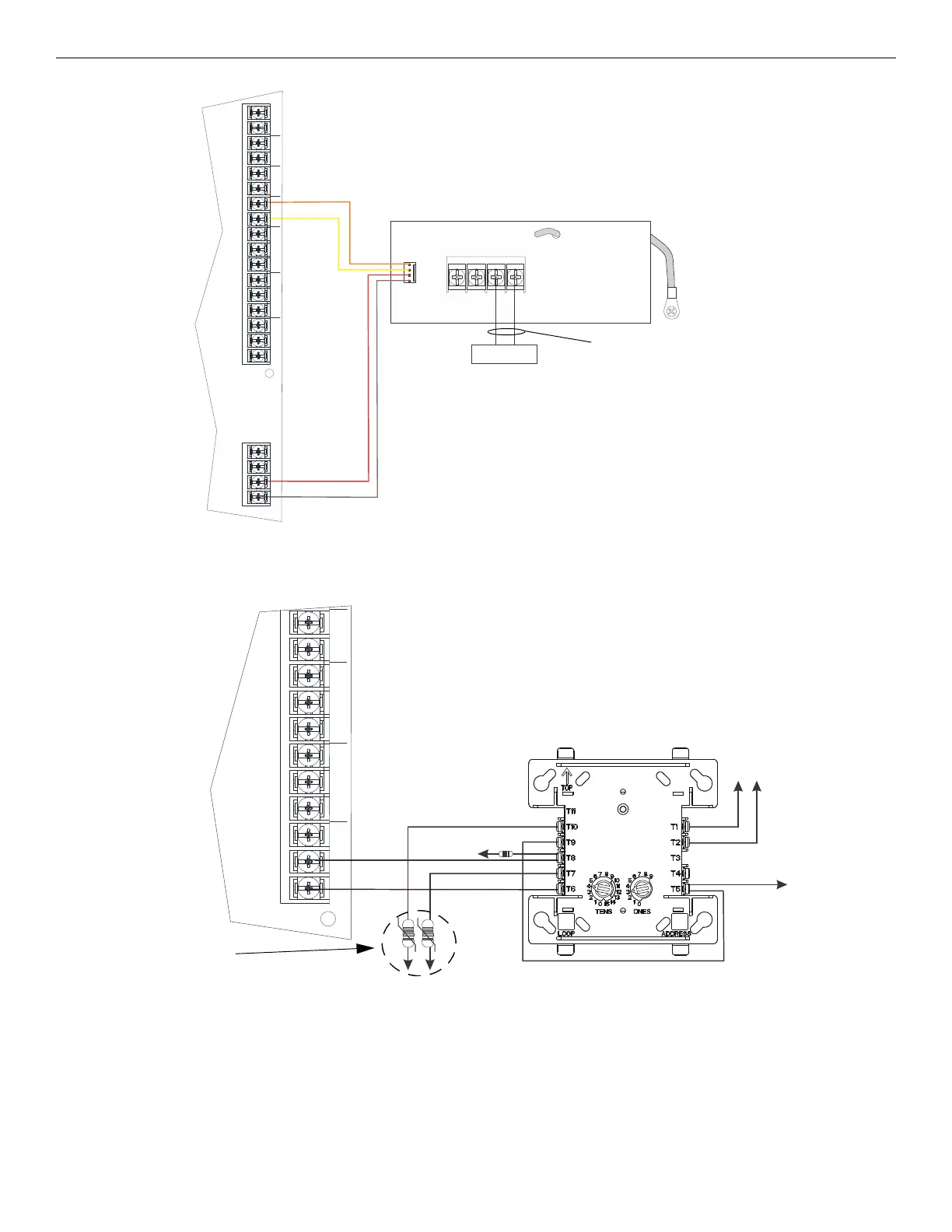

Figure 4.47 City Box Connection
TROUBLE
NC C NO
RELAY1
NC C NO
RELAY2
NC C NO
NAC1
+ -
UL listed EOL must
be Installed in City
Box Enclosure
to SBUS
out (+)
to SBUS out (-)
to SLC
(-) (+)
to city box
FACP
IDP-RELAY
Figure 4.48 Relay Module for City Box Connection
