80 IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022
Programming Overview Mapping Overview
7.2.3 Event Mapping
There are 11 types of Zone events, 14 types of Panel events, and 40 types of Site events that can be mapped. For each event type, you can
activate the output groups with specific output patterns. Mapping examples are shown in Figures 7.4, 7.5, and 7.6.
System Zone Panel Site
Fire
Manual Pull Alarm System Aux 1 Alarm Fire Drill
Water Flow Alarm System Aux 2 Alarm General Fire Alarm
Detector Alarm
(heat or smoke detectors)
General Fire Supervisory
Zone Aux 1 Alarm General Fire Pre-Alarm
Zone Aux 2 Alarm
Interlock Alert
Interlock Release
Pre-Alarm
Fire Supervisory
Status Point
CO Alarm
CO Supervisory
1
1 Temporal 4 coding cannot not be used for NAC circuits on CO Supervisory events.
Emergency
LOC ECS 1-8 Alarm
General ECS Alarm
General ECS Supervisory
Point ECS 1-8 Alarm
Advisory
Trouble SBUS Expander Trouble General Trouble
Status Point Active SBUS Class A Trouble Site Silenced
SLC Loop Trouble Voice Aux In 1-8 Alarm
AC Loss Trouble F1 Key Active
Battery Trouble F2 Key Active
Ground Fault Trouble F3 Key Active
Phone Line Trouble F4 Key Active
Reporting Account Trouble Voice Aux in 1-2
Printer Trouble System Mic Active
Aux Power Trouble Background Music
System Switch Trouble
Output Group Trouble

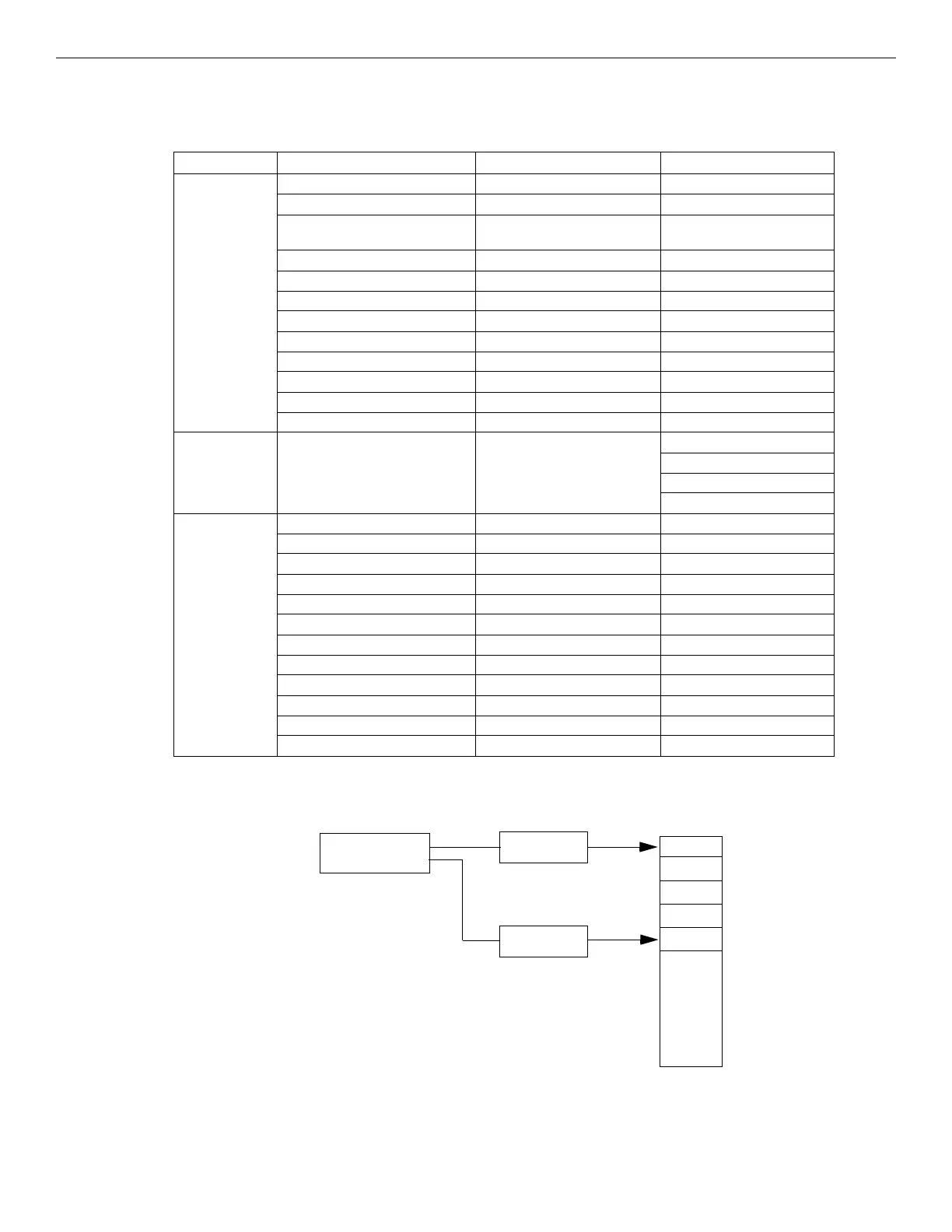

Table 7.2 Event Mapping
Zone 1:
manual pull alarm
pattern 00
constant
pattern 02
ANSI 3.41
This example shows Zone 1 manual pull alarm event mapped to:
• Group 1 using constant output.
• Group 5 using ANSI 3.41 output pattern.
group 1
group 2
group 3
group 4
group 5
group 6
through
group 250
Figure 7.4 Example of Zone Events Mapped to Output Groups and Patterns
