IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022 53
Telephone Connection Control Panel Installation
Refer to Section 8.2 to edit, add, delete, and view the module list.
4.15.2 SBUS Bandwidth Considerations
Each SBUS device generates a certain amount of traffic on the SBUS. Generally, the amount of traffic generated depends on the type of
SBUS device. To help you figure out the SBUS bandwidth usage of a given collection of devices, a tool is available on the Farenhyt website
(www.farenhyt.com). The tool will serve as a guide to help determine how heavily loaded an SBUS is with respect to bandwidth. We recom-
mend you use this tool if you plan to have more than eight SBUS devices per SBUS. Remember to include devices that are on RPS-1000
SBUS repeaters in your list of devices for SBUS bandwidth calculations. See Section Section 4.6.2.
4.16 Telephone Connection
Connect the telephone lines as shown in Figure 4.42. The 7860 phone cord is available from Honeywell for this purpose. A number of pro-
grammable options are available for customizing telephone lines. These options are described in Section 8.6.
14
5
623
14
5
623 1 4
5
623 1 4
5
623
ON
OFF
address address address address

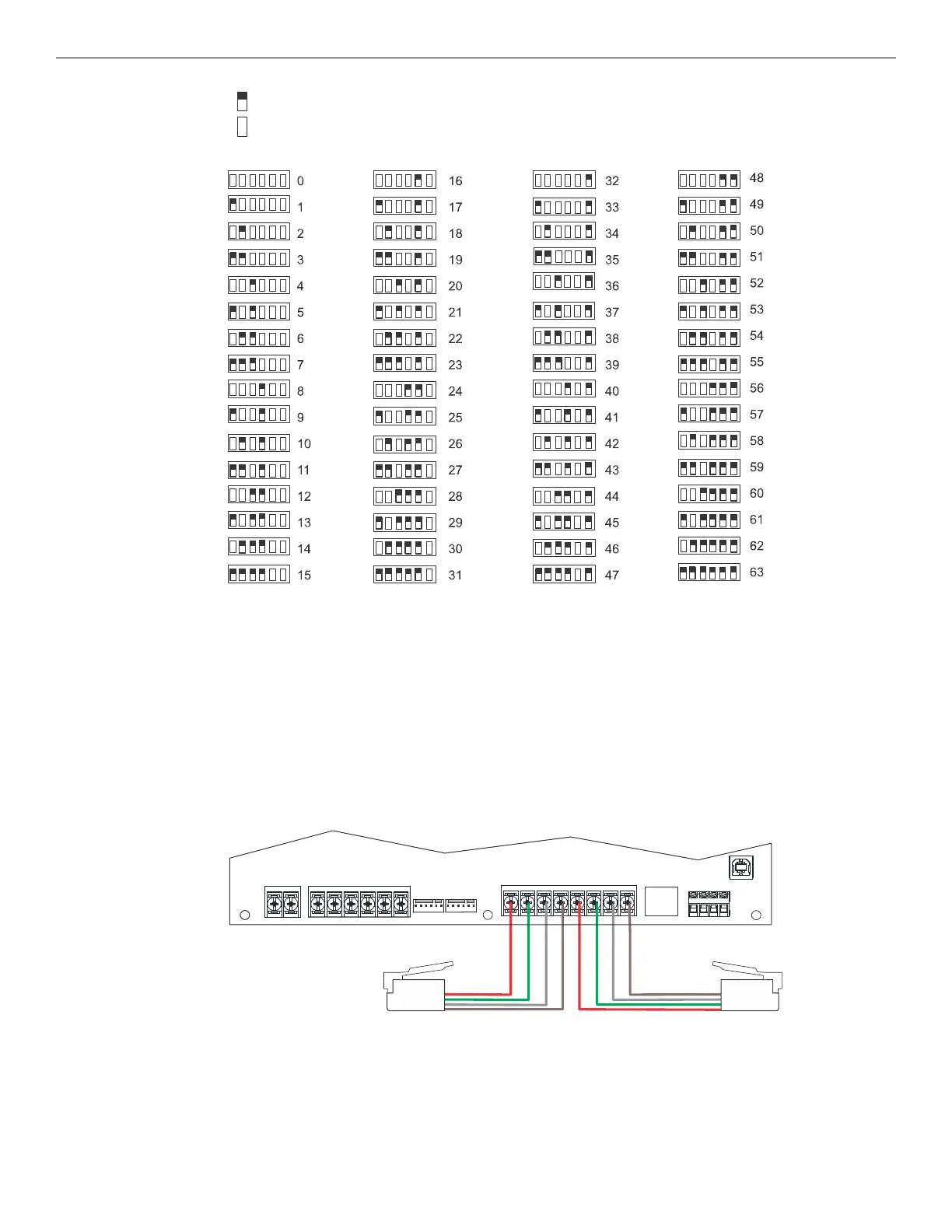

Figure 4.41 Possible SBUS Module Addresses
VOICE
NETWORK
DATA
NETWORK
TELCO PHONE TELCO PHONE SLC SLC PGM
BATTERY
RING1 TIP1 RING1 TIP1 RING2 TIP2 RING2 TIP2
OUT- OUT+ IN- IN+
- +
- +
red
green
gray
brown
red
green
gray
brown
Model
#7860
Model
#7860
supervised
Figure 4.42 Connection of Telephone Lines
