Networking SK-NIC Installation
Each fiber loop module can Transmit (TX) and Receive (RX) fiber-optic cable connecting to the SK-NIC. Up to two fiber loop cards can be
added to the SK-NIC, and both cards may be combined in the same configuration.
5.3.2 SK-NIC Mounting Kits
SK-NIC can be mounted in an accessory cabinet. An accessory kit is necessary to install the SK-NIC outside of the IFP-300cabinet.
• The SK-NIC-KIT includes a SK-NIC, small cabinet with locking door, cable, and mounting hardware.
• The 5815RMK includes a small cabinet with locking door and mounting hardware.
5.4 SK-NIC Installation
The SK-NIC is designed to mount on one of the SLC standoff sets inside the cabinet or remotely using the accessory cabinet.
Use the following steps to properly mount the SK-NIC inside the IFP-300.
1. Align the SK-NIC over the standoffs on the back of the IFP-300 cabinet and secure with supplied screws. Refer to Figure 5.2 for
location of standoffs.
2. Use the included 6-pin cable harness to connect the IFP-300 to the SK-NIC. Connect the SK-NIC to the pin connector on the control
panel labeled, Data Network.

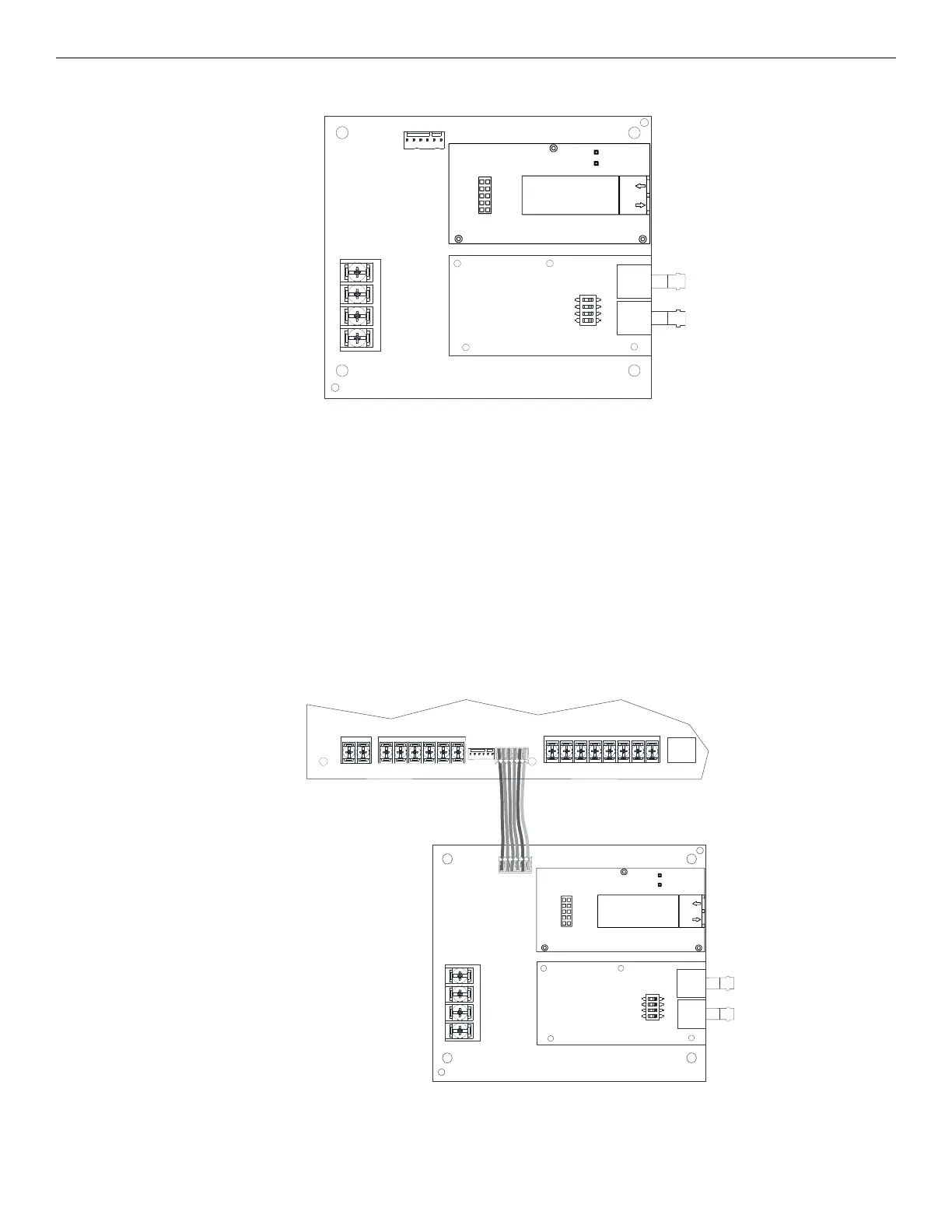

Figure 5.5 SK-NIC with Fiber Loop Modules
2
RX
TX
VOICE
NETWORK
DATA
NETWORK
TELCO PHONE TELCO PHONE SLC SLC PGM
BATTERY
RING1 TIP1 RING1 TIP1 RING2 TIP2 RING2 TIP2
OUT- OUT+ IN- IN+
- +
- +
Figure 5.6 Panel to SK-NIC Connection
FACP
SK-NIC
