38 IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022
Control Panel Installation RA-100 Remote Annunciator Installation
RA-100 installation involves the following steps:
1. Ensure power is off at the panel.
2. Mount the RA-100 in the desired location (see Section 4.7.1).
3. Connect the RA-100 to the panel (see Section 4.7.2).
4. Use the DIP switches on the back of the RA-100 to assign an ID#. (See Section Section 4.15.1.)
5. The new RA-100 module must be added to the system through programming. JumpStart
Auto-Programming will add the module
automatically (see Section 7.1). You can also add it manually (see Section 8.2.2). Select a name, if desired.
Model RA-100
Farenhytâ„¢ Series

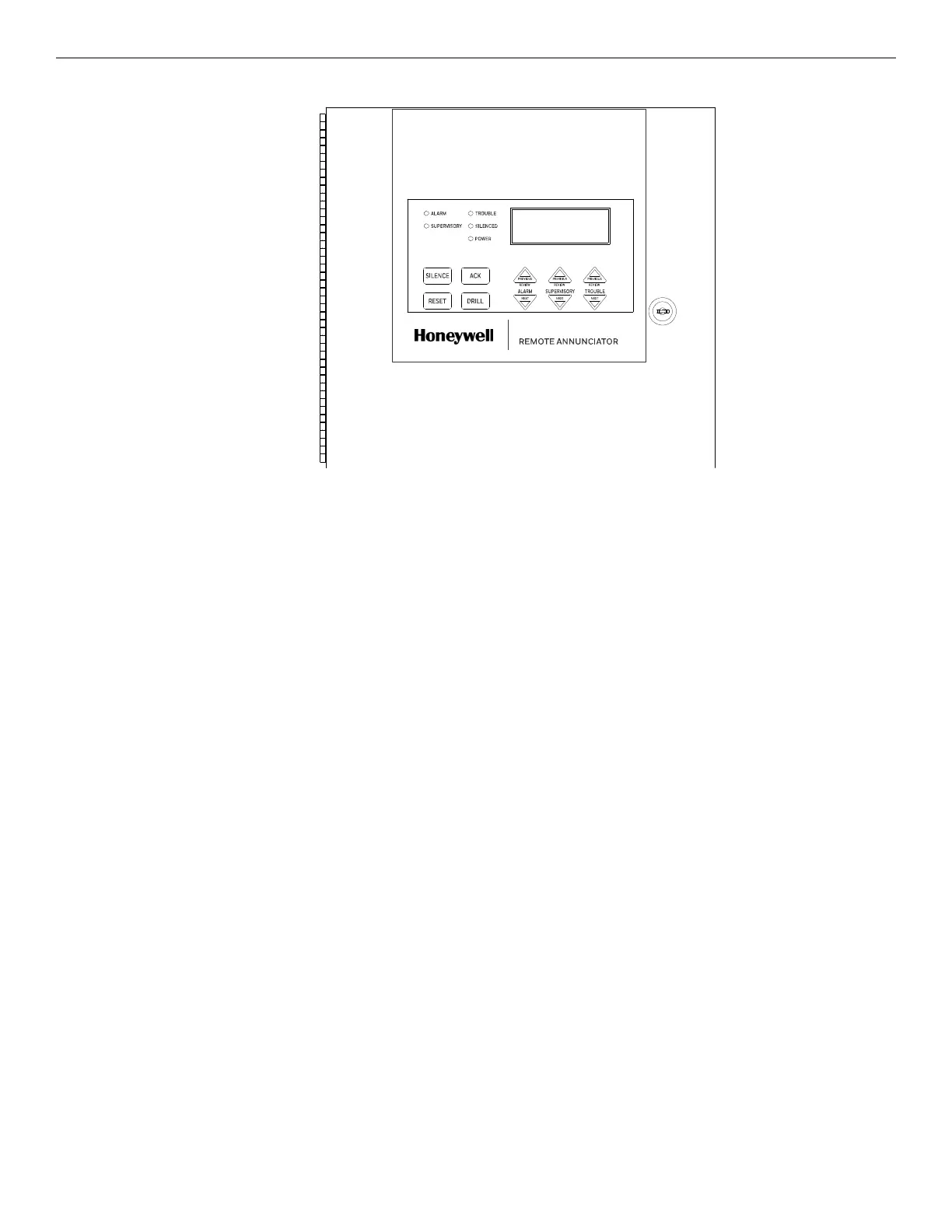

Figure 4.12 RA-100 Remote Annunciator
