Revision 6 HC900 Process & Safety Controller User and Installation Manual 97
21 April 2017
Resistance Temperature Device Inputs

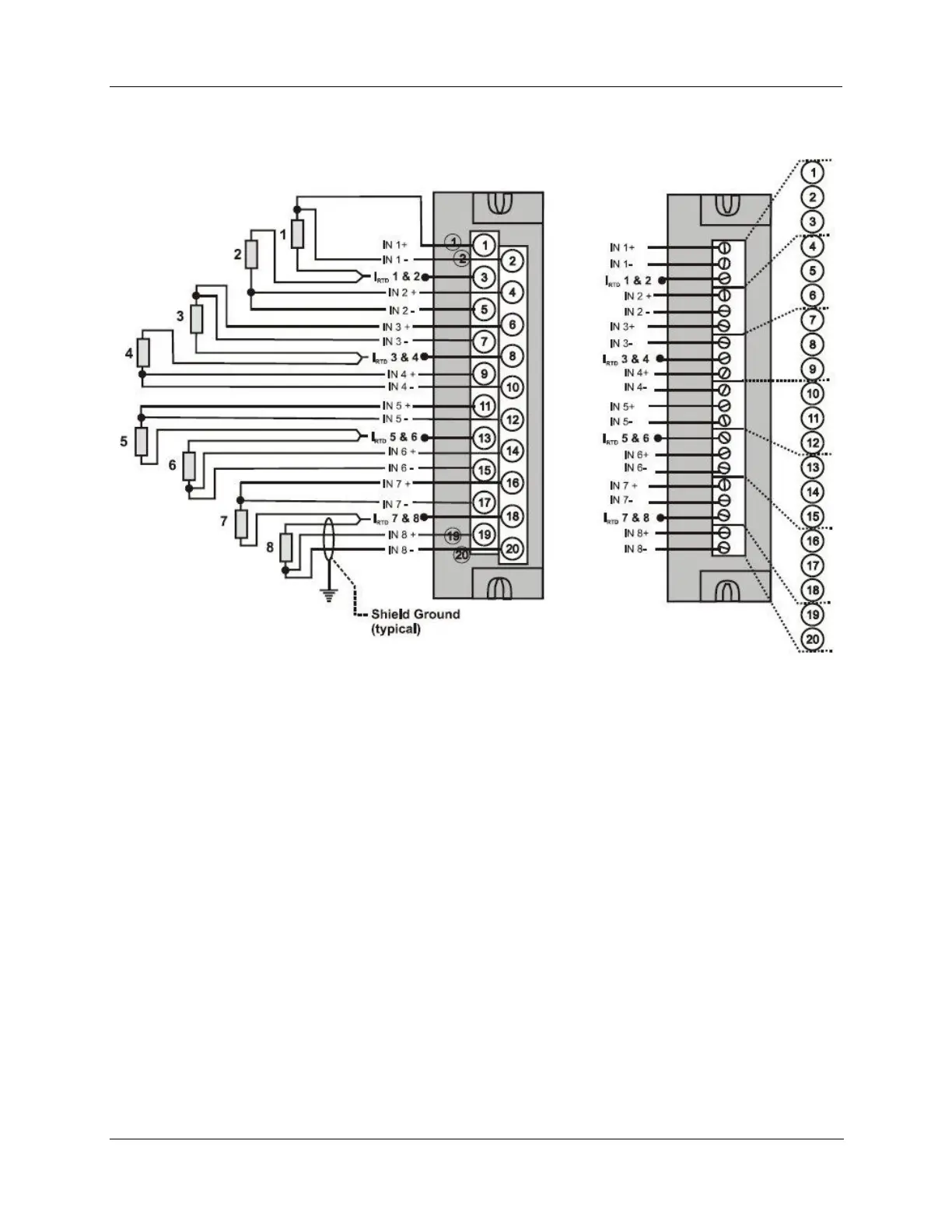

Figure 47 Analog Input Wiring - Eight RTDs
