242 HC900 Process & Safety Controller User and Installation Manual Revision 6
21 April 2017
8 Point Analog Output
Step
Action
4

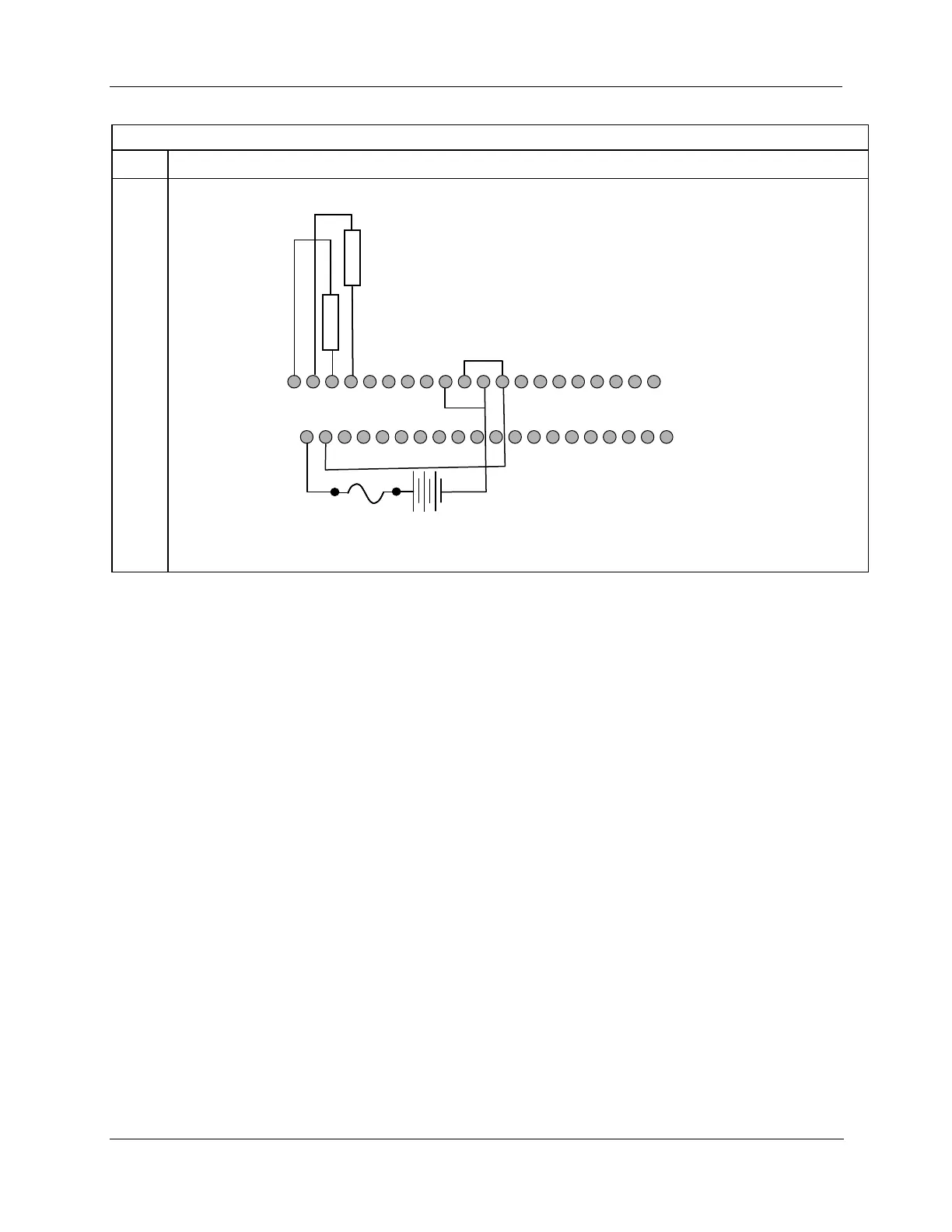

Connect field wiring.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15 16 17
18 19 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
LOADS ARE 0 to 750 ohm
AO1+
AO1
-
AO2+ AO2
-
LOAD
AO-1
LOAD
AO-2
LOAD
AO-1
LOAD
AO-2
AO3+
AO3
-
AO4+ AO4
-
AO5+
AO5
-
AO6+
AO6
-
AO7+
AO7
-
AO8+ AO8
-
ETC.
RTP A for
Inputs 1 to 8
External 24VDC supply
DC+
SDC+
EXT 24V RTN
EXT +24V
Install 24V wires as shown:
22 to 10
22 to 12
24VRTN to 9
24VRTN to 11
