www.honeywell.com/security
26 | HRGX DVR User Manual
Typical Installation

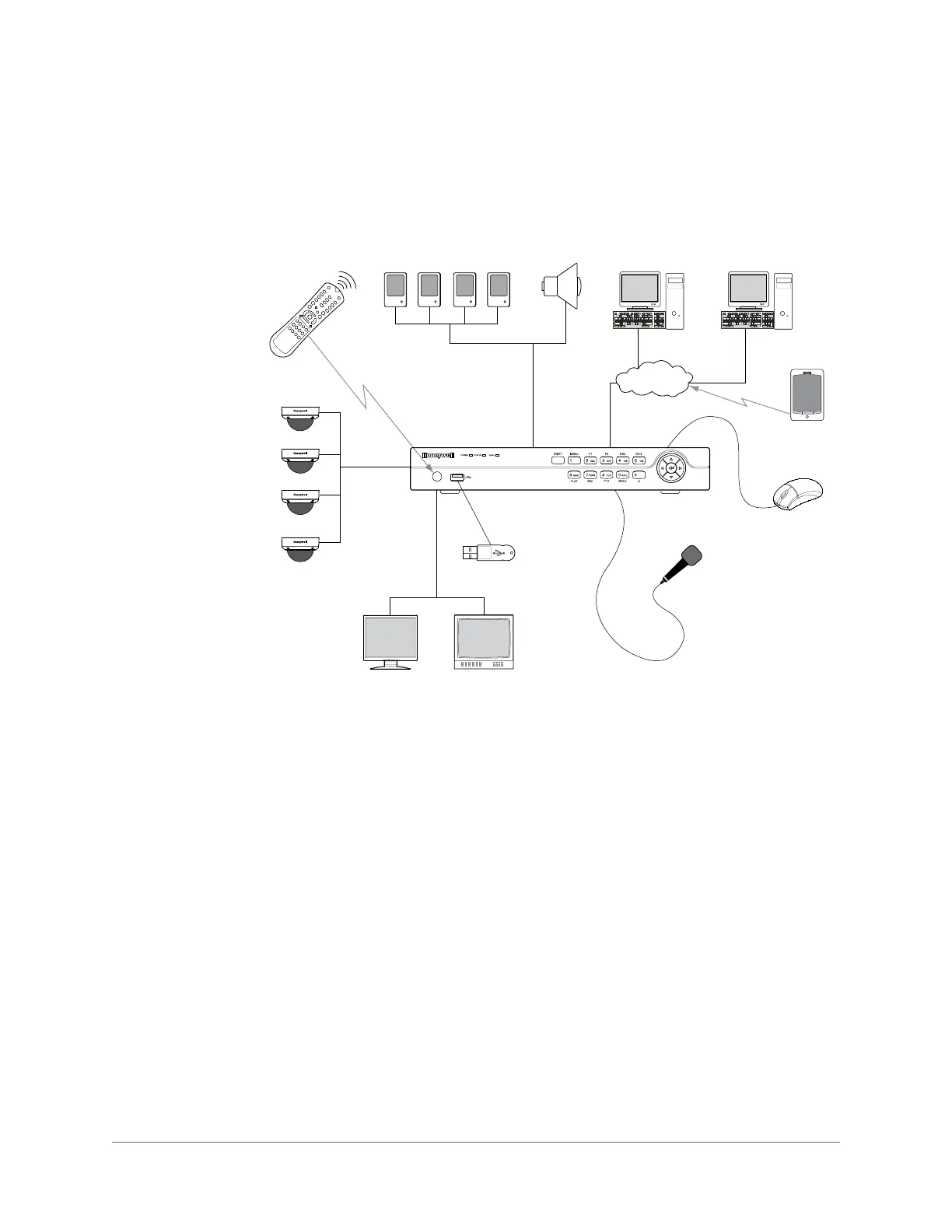

The following diagram shows a typical HRGX DVR installation:
Main Monitor
VGA
Spot Monitor
(BNC)
IR Remote
Control
USB Mouse
Support
Microphone
USB
Mobile
Device
Internet
For backing up
video clips
Multi-Site Software
Web Browser
Alarm Sensor Alarm Out
Alarm Input/Output
Video In
Cameras
Video Out
