PC45 Series Printer User Guide 29

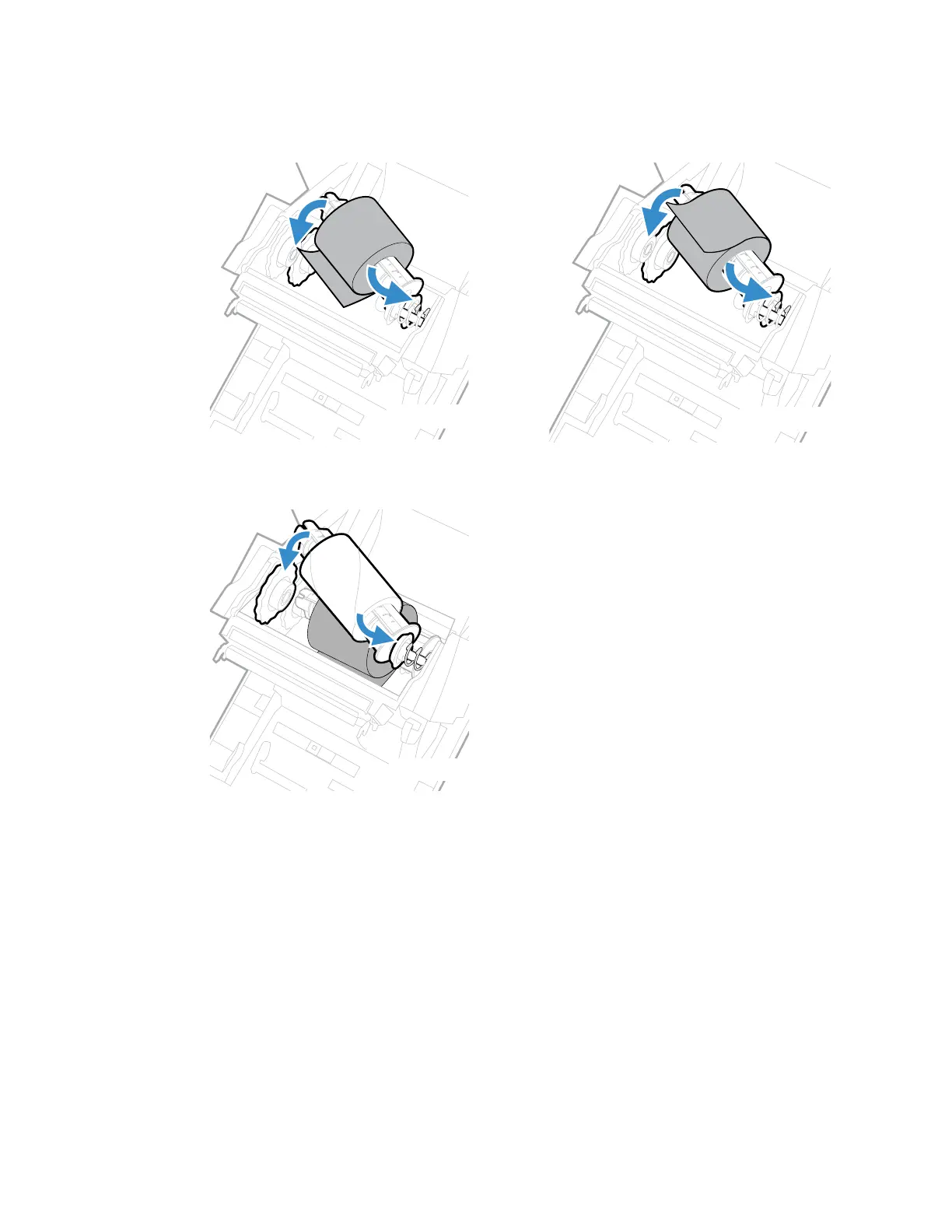

4. Place the ribbon roll and adapter into the rear media holders. For “ink out”
operation (default), the ribbon should come off the back of the roll. For “ink-in”
operation, the ribbon should come off the front of the roll.
5. Place the takeup core and adapter between the front media holders.
Ink-out
Ink-in
1 inch
