Chapter 5 – General Operation
Honeywell Confidential: Use or disclosure of information on this page is subject to the restrictions on the title page.
13841 Rev A
119

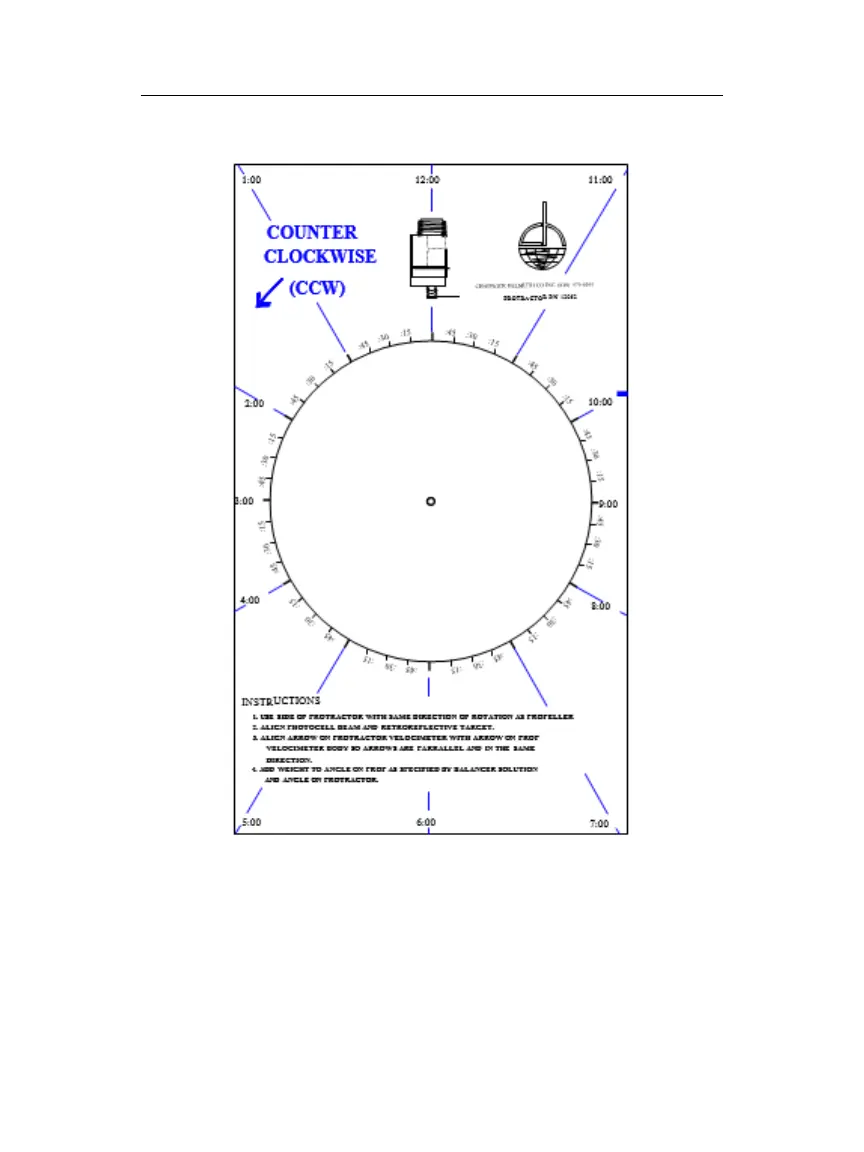

NOTE: The blue side of the Propeller Protractor is for counter-
clockwise rotation, and the red side is for clockwise.
Correct Location - To find the correct location on the
propeller for applying the balance weights, use the Propeller
Protractor, as follows:
