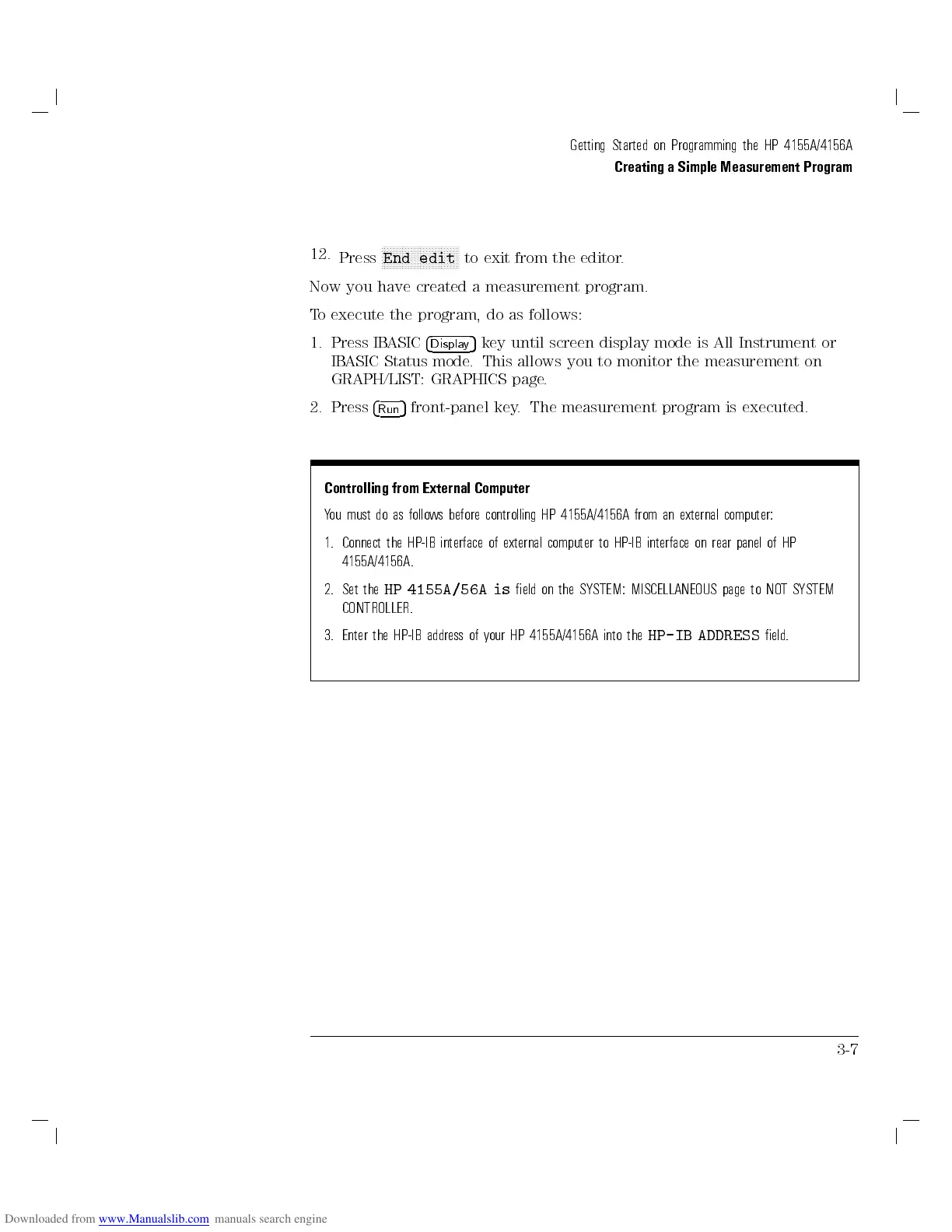

Getting Started on Programming the HP 4155A/4156A
Creating a Simple Measurement Program
12.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
End edit
to exit from the editor.
Now you have created a measurement program.
To execute the program, do as follows:
1. Press IBASIC
4
Display
5
key until screen display mode is All Instrument or
IBASIC Status mode. This allows you to monitor the measurement on
GRAPH/LIST: GRAPHICS page.
2. Press
4
Run
5
front-panel key. The measurement program is executed.
Controlling from External Computer
You must do as follows before controlling HP 4155A/4156A from an external computer:
1. Connect the HP-IB interface of external computer to HP-IB interface on rear panel of HP
4155A/4156A.
2. Set the
HP 4155A/56A is
eld on the SYSTEM: MISCELLANEOUS page to NOT SYSTEM
CONTROLLER.
3. Enter the HP-IB address of your HP 4155A/4156A into the
HP-IB ADDRESS
eld.
3-7
