HP 4155A/4156A SCPI Programming
Programming: File Operation

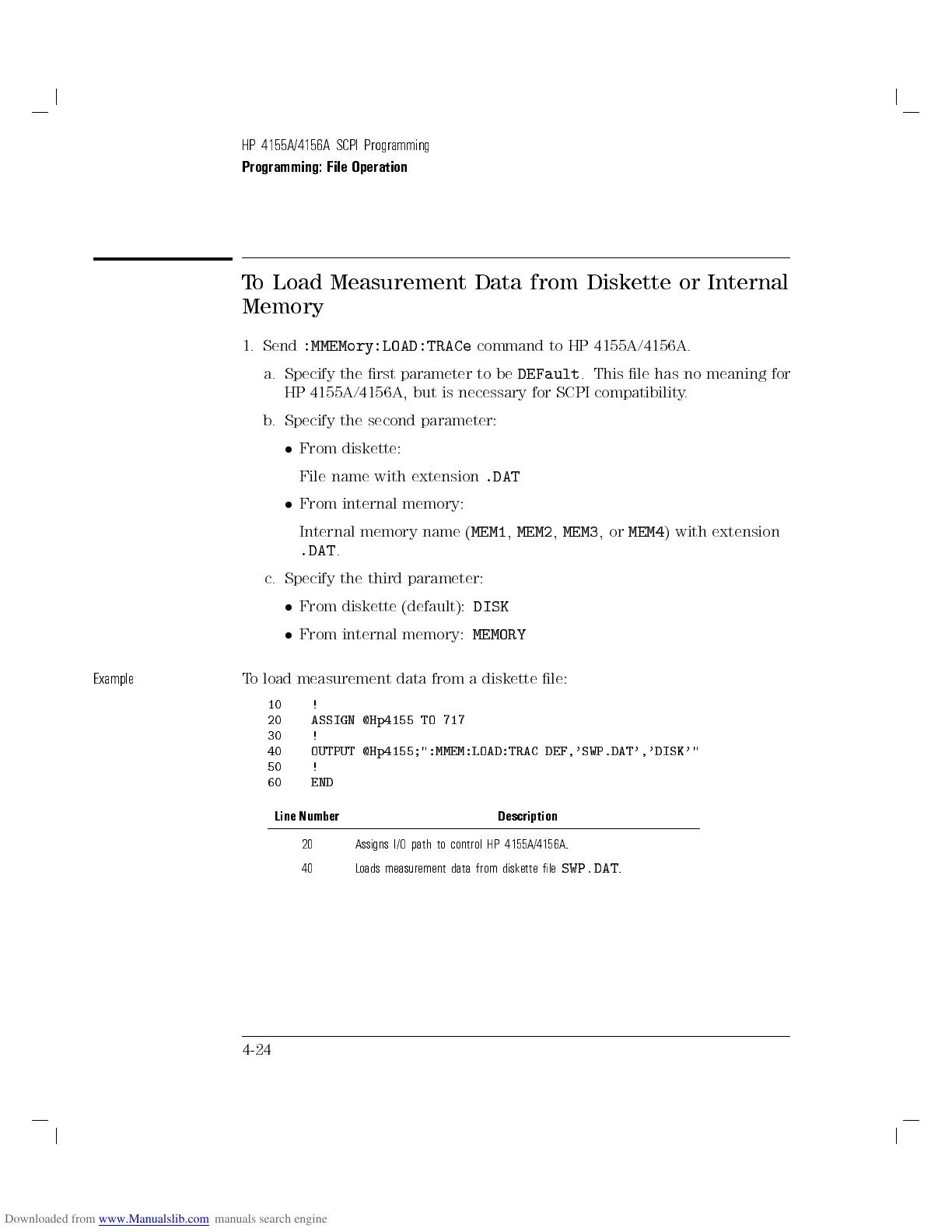

To Load Measurement Data from Diskette or Internal
Memory
1. Send :MMEMory:LOAD:TRACe command to HP 4155A/4156A.
a. Specify the rst parameter to be DEFault . This le has no meaning for
HP 4155A/4156A, but is necessary for SCPI compatibility.
b. Specify the second parameter:
 From diskette:
File name with extension .DAT
 From internal memory:
Internal memory name ( MEM1 , MEM2 , MEM3 ,or MEM4 ) with extension
.DAT .
c. Specify the third parameter:
 From diskette (default): DISK
 From internal memory: MEMORY
Example To load measurement data from a diskette le:
10 !
20 ASSIGN @Hp4155 TO 717
30 !
40 OUTPUT @Hp4155;":MMEM:LOAD:TRAC DEF,'SWP.DAT','DISK'"
50 !
60 END
Line Number Description
20 Assigns I/O path to control HP 4155A/4156A.
40 Loads measurement data from diskette le SWP.DAT .
4-24
