HP 4155A/4156A SCPI Programming

Programming: Measurement Execution

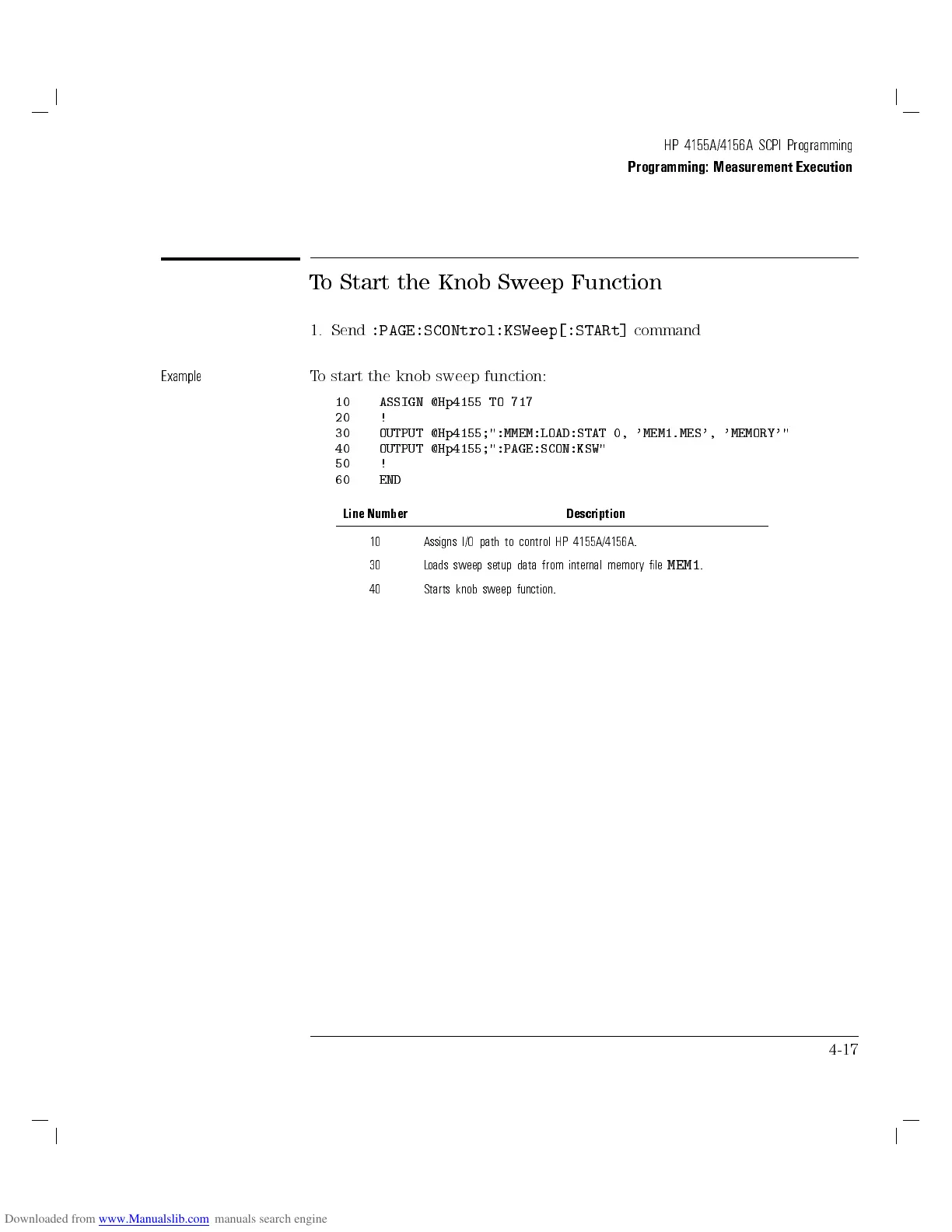

To Start the Knob Sweep Function

1. Send

:PAGE:SCONtrol:KSWeep[:STARt]

command

Example

To start the knob sweep function:

10 ASSIGN @Hp4155 TO 717

20 !

30 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0, 'MEM1.MES', 'MEMORY'"

40 OUTPUT @Hp4155;":PAGE:SCON:KSW"

50 !

60 END

Line Number Description

10 Assigns I/O path to control HP 4155A/4156A.

30 Loads sweep setup data from internal memory le

MEM1

40 Starts knob sweep function.

4-17
