Getting Started on Programming the HP 4155A/4156A

Creating a Simple Measurement Program

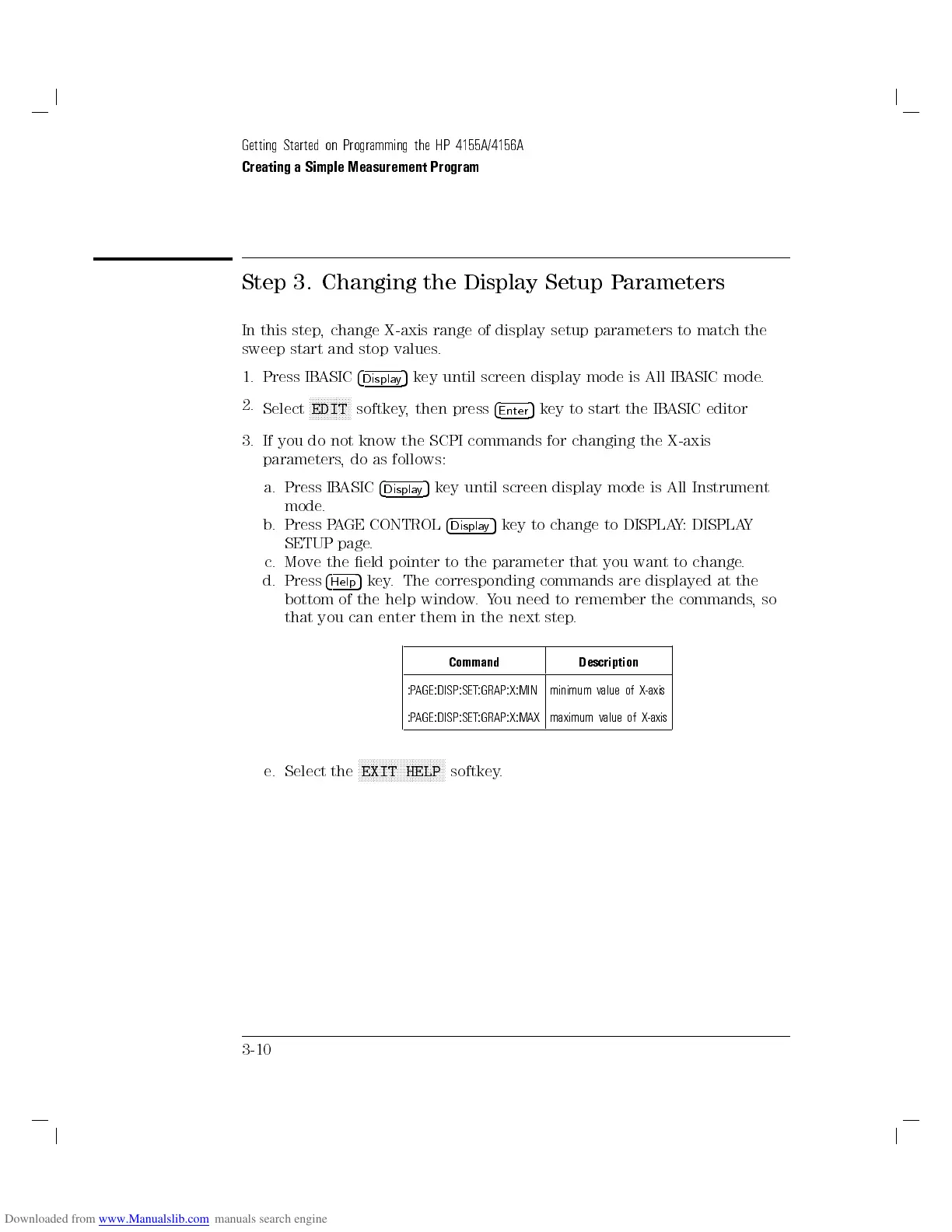

Step 3. Changing the Display Setup Parameters

In this step, change X-axis range of display setup parameters to match the

sweep start and stop values.

1. Press IBASIC

Display

key until screen display mode is All IBASIC mode.

Select

NNNNNNNNNNNNNN

EDIT

softkey, then press

Enter

key to start the IBASIC editor

3. If you do not know the SCPI commands for changing the X-axis

parameters, do as follows:

a. Press IBASIC

Display

key until screen display mode is All Instrument

mode.

b. Press PAGE CONTROL

Display

key to change to DISPLAY: DISPLAY

SETUP page.

c. Move the eld pointer to the parameter that you want to change

d. Press

Help

key. The corresponding commands are displayed at the

bottom of the help window.You need to remember the commands,so

that you can enter them in the next step

Command Description

:PAGE:DISP:SET:GRAP:X:MIN minimum value of X-axis

:PAGE:DISP:SET:GRAP:X:MAX maximum value of X-axis

e. Select the

NNNNNNNNNNNNNNNNNNNNNNNNNNNNN

EXIT HELP

softkey.

3-10

HP 4155A Programmer's Guide
