HP 4155A/4156A SCPI Programming
Programming: Measurement Execution

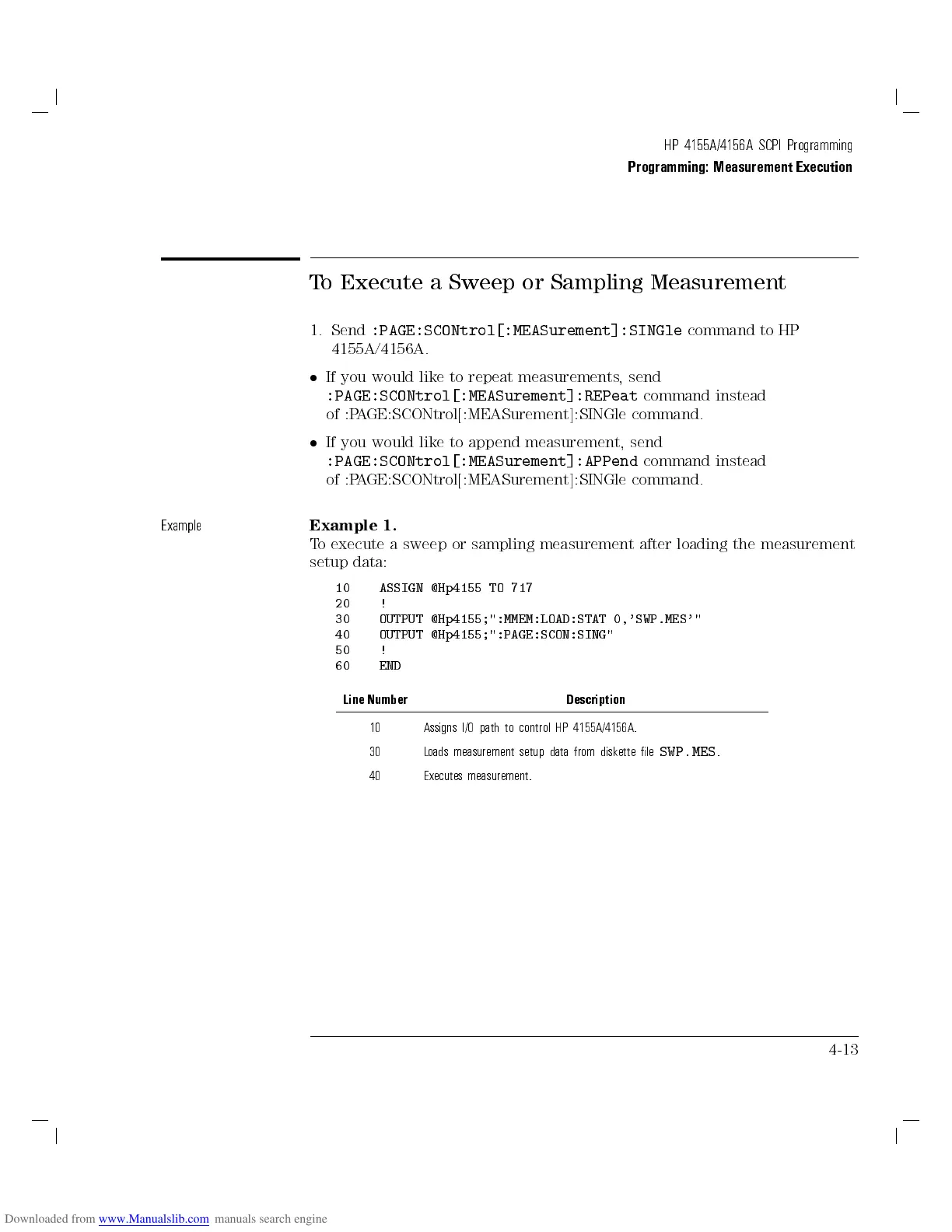

To Execute a Sweep or Sampling Measurement
1. Send :PAGE:SCONtrol[:MEASurement]:SINGle command to HP
4155A/4156A.
 If you would like to repeat measurements, send
:PAGE:SCONtrol[:MEASurement]:REPeat command instead
of :PAGE:SCONtrol[:MEASurement]:SINGle command.
 If you would like to append measurement, send
:PAGE:SCONtrol[:MEASurement]:APPend command instead
of :PAGE:SCONtrol[:MEASurement]:SINGle command.
Example Example 1.
To execute a sweep or sampling measurement after loading the measurement
setup data:
10 ASSIGN @Hp4155 TO 717
20 !
30 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'SWP.MES'"
40 OUTPUT @Hp4155;":PAGE:SCON:SING"
50 !
60 END
Line Number Description
10 Assigns I/O path to control HP 4155A/4156A.
30 Loads measurement setup data from diskette le SWP.MES .
40 Executes measurement.
4-13
