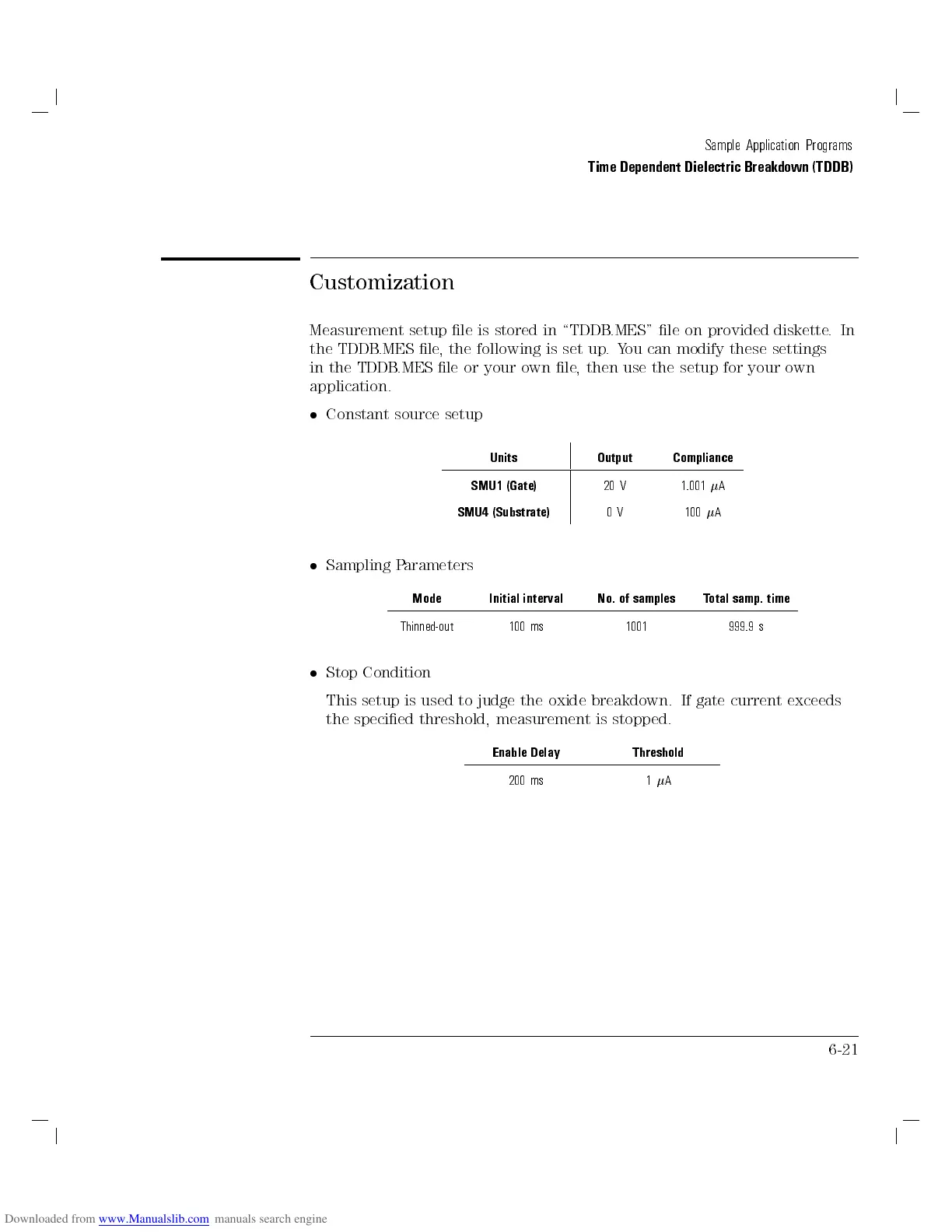

Sample Application Programs
Time Dependent Dielectric Breakdown (TDDB)
Customization
Measurement setup le is stored in \TDDB.MES" le on provided diskette.In
the TDDB.MES le, the following is set up.You can modify these settings
in the TDDB.MES le or your own le, then use the setup for your own
application.
Constant source setup
Units Output Compliance
SMU1 (Gate)
20 V 1.001
A
SMU4 (Substrate)
0V 100
A
Sampling Parameters
Mode Initial interval No. of samples Total samp. time
Thinned-out 100 ms 1001 999.9 s
Stop Condition
This setup is used to judge the oxide breakdown. If gate current exceeds
the specied threshold, measurement is stopped.
Enable Delay Threshold
200 ms 1
A
