HP 4155A Programmer's Guide

Electromigration
This setup forces a constant current to the DUT (metal), measures
time-to-failure of DUT, then calculates the total forced electric charge.
name
Program none
Setup le EM.MES
Application Overview

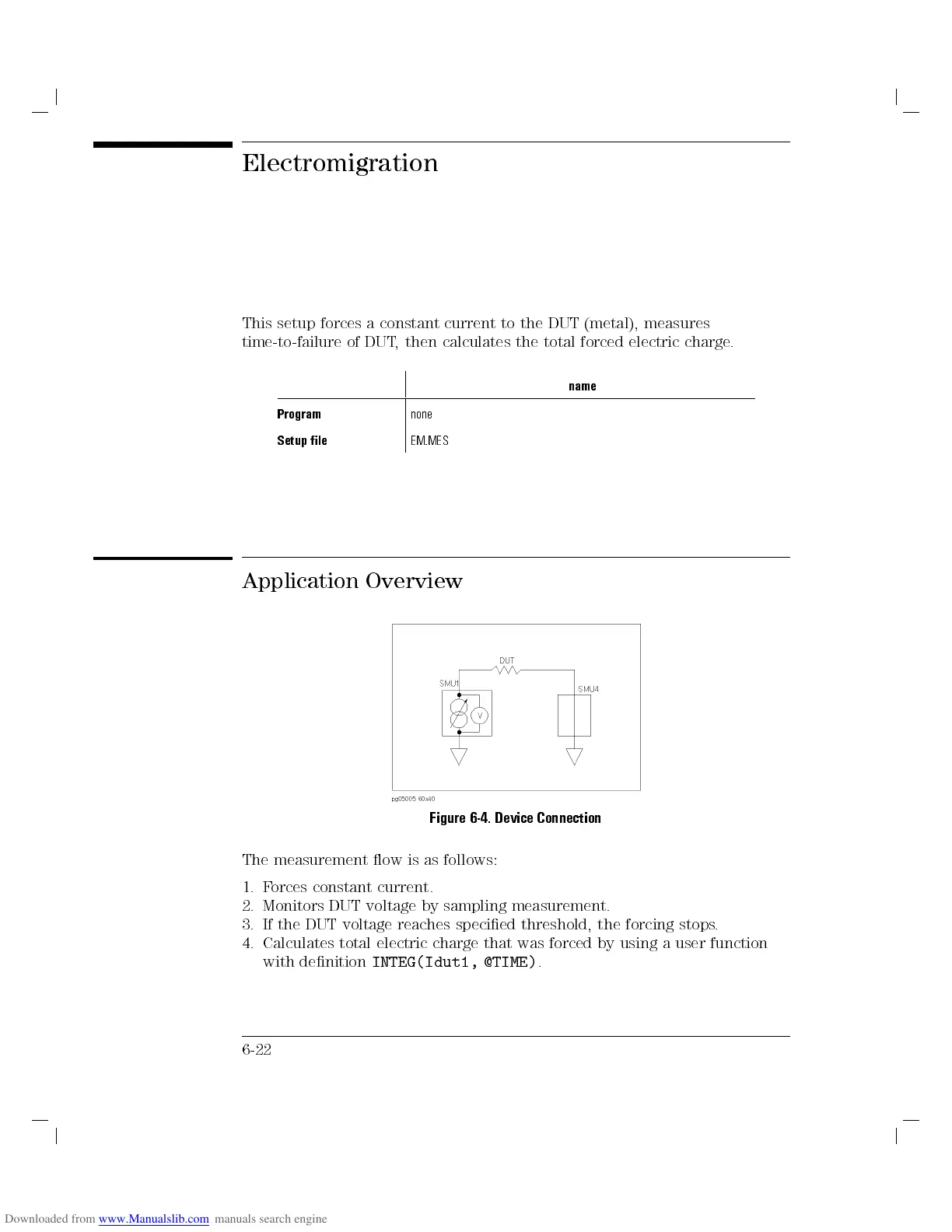

Figure 6-4. Device Connection
The measurement ow is as follows:
1. Forces constant current.
2. Monitors DUT voltage by sampling measurement.
3. If the DUT voltage reaches specied threshold, the forcing stops.
4. Calculates total electric charge that was forced by using a user function
with denition INTEG(Idut1, @TIME) .
