Using HP Instrument BASIC

Control from External Computer

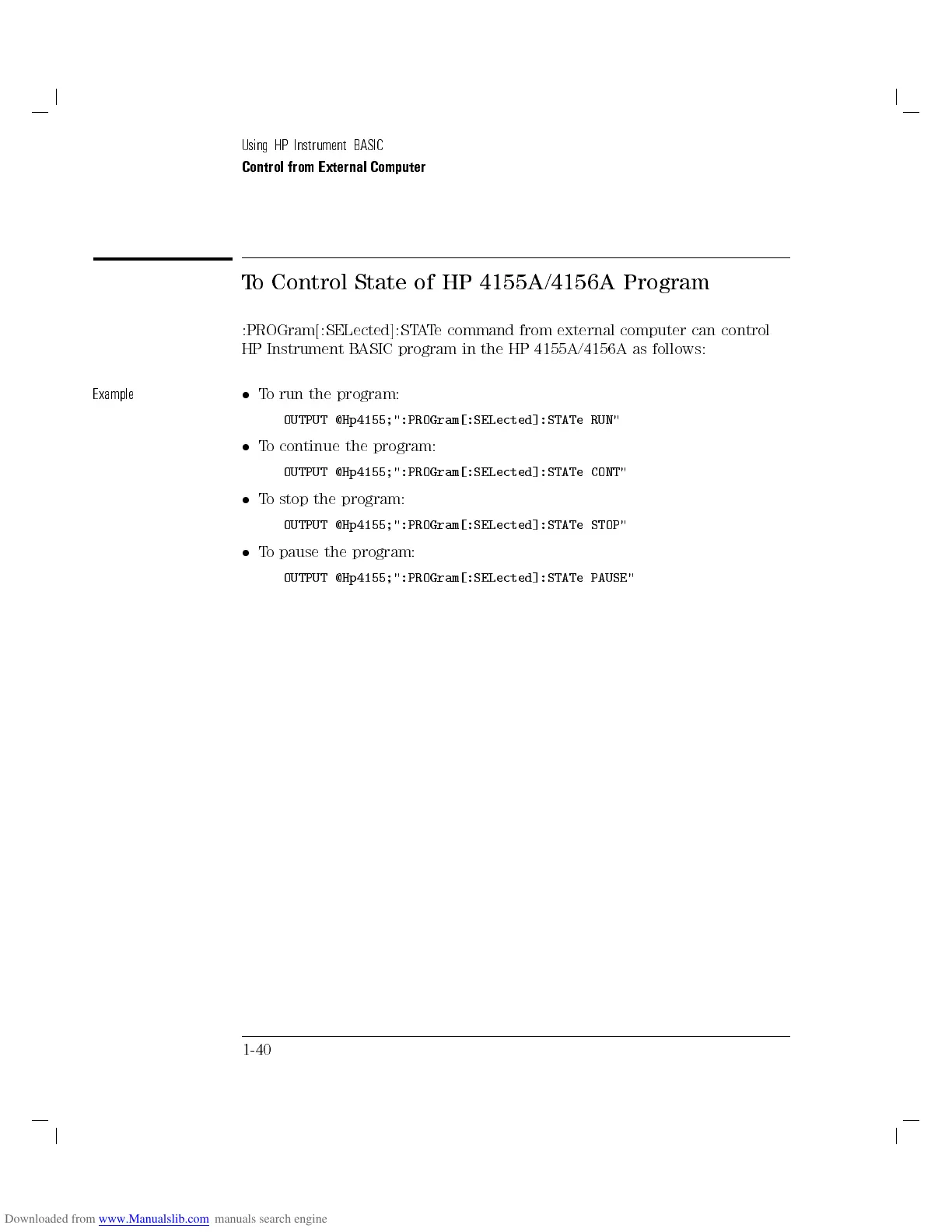

To Control State of HP 4155A/4156A Program

:PROGram[:SELected]:STATe command from external computer can control

HP Instrument BASIC program in the HP 4155A/4156A as follows:

Example



To run the program:

OUTPUT @Hp4155;":PROGram[:SELected]:STATe RUN"



To continue the program:

OUTPUT @Hp4155;":PROGram[:SELected]:STATe CONT"



To stop the program:

OUTPUT @Hp4155;":PROGram[:SELected]:STATe STOP"



To pause the program:

OUTPUT @Hp4155;":PROGram[:SELected]:STATe PAUSE"

1-40
