HP 4155A Programmer's Guide
4
of 1
of 1 rating
241 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

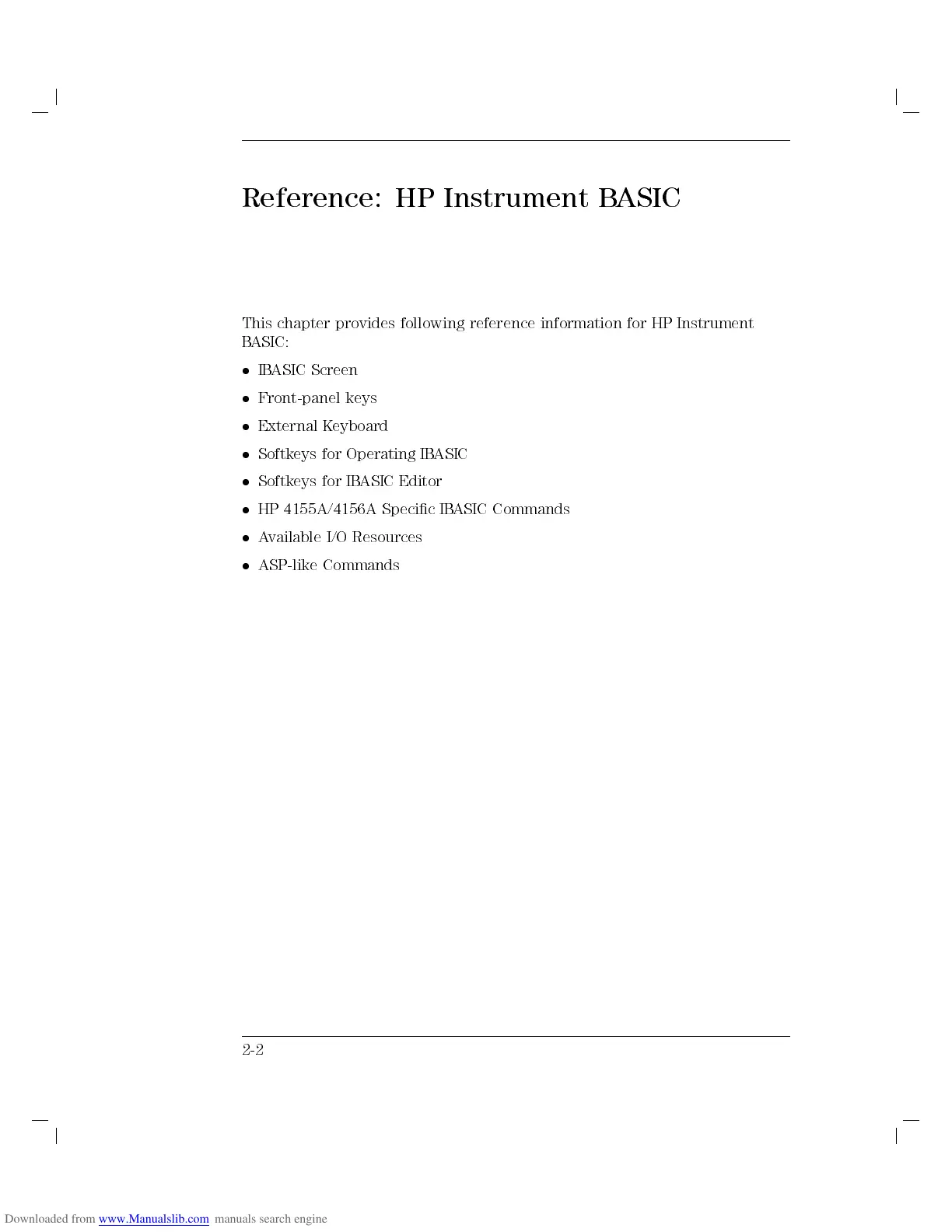

Reference:
HP
Instrument
B
ASIC
This
chapter
provides
following
reference
information
for
HP
Instrument
B
ASIC:
IB
ASIC
Screen
Front-panel
keys
External
K
eyboard
Softkeys
for
Operating
IB
ASIC
Softkeys
for
IB
ASIC
Editor
HP
4155A/4156A
Specic
IB
ASIC
Commands
A
vailable
I/O
Resources
ASP-like
Commands
2-2
66
68
Table of Contents
Programming Overview
5
How to Migrate Programs
6
Manual Overview
7
Text Conventions
7
Table of Contents
8
Figures List
17
Tables List
17
Using HP Instrument
19
Before Operating
20
To Switch Screen Mode
21
To Use the Help Function
22
To Move the Field Pointer
23
To Search for a Command
23
To Enter a Command into the Editor
23
Creating and Executing a Simple Program
24
Editing
24
Exiting from Editor
26
Executing Program
26
Modifying Program by Using Editor Functions
27
Inserting Lines
28
Deleting a Line
29
Renumbering
30
Inserting Characters
31
Recalling Deleted Line
32
Indenting
32
Saving and Getting a Program
33
Listing Contents of Diskette
34
Clearing a Program
35
Getting a Program
35
Summary of Softkeys and Keyboard Operations for Editor
36
Other Basic Features
37
Branching/Repeating
38
Subprograms and COM Blocks
39
Basic Operation Tasks
41
To Execute HP Instrument BASIC Commands
42
To Execute Program
42
To List Files
43
To Retrieve Program
44
To Save Program
45
Editor Tasks
46
To Start the Editor
47
To Quit the Editor
47
To Move the Cursor
48
To Insert Characters
48
To Delete Character
49
To Insert Line
49
To Delete Line
50
To Scroll Pages
50
To Recall most Recently Deleted Line
51
Control from External Computer
52
To Download a Program to HP 4155A/4156A
53
To Upload a Program from HP 4155A/4156A
55
To Control State of HP 4155A/4156A Program
57
Creating ASP-Like IBASIC Programs
58
Creating Programs by Using the Typing Aid Softkeys
58
Executing the Program
60
Creating a Longer Program
60
Programming Tips
62
Reading HP 4155/56 Data to IBASIC Variables
63
Auto Scaling
64
HP 4145 ASP and HP 4155A/4156A Corresponding Keywords
65
Reference: HP Instrument BASIC
67
Screen
68
Status Screen
71
Keys
72
Front-Panel Keys
73
Primary Softkeys in Idle, Pause, Run, or Input? Execution Status
76
Secondary Softkeys in Idle or Pause Execution Status
77
Secondary Softkeys in Run or Input? Execution Status
78
Primary Softkeys in Edit Execution Status
79
Secondary Softkeys in Edit Execution Status
80
External Keyboard
84
HP 4155A/4156A Speci C IBASIC Keywords
90
Available I/O Resources
92
CRT Display
93
HP-IB Interfaces
93
Serial Interface
94
Built-In Diskette Drive
95
ASP-Like Commands
96
Execute
96
Get Setup Directive
97
Single Directive
97
Standby Directive
98
Stress Directive
98
Auto-Scale Directive
99
Save Data Directive
99
Read Data Variable Directive
100
Define User Variable Directive
101
Print/Plot Directive
102
Curve Plot Directive
102
Getting Started on Programming
105
Creating a Simple Measurement Program
106
Before Creating a Program
107
Getting the Setup File and Making a Measurement
107
To Assign I/O Path
108
Controlling from External Computer
110
Changing the Sweep Setup Parameters
111
Changing the Display Setup Parameters
113
Saving All Measurement Results to a Diskette
115
Printing the Measurement Results
117
Programming for Data Extraction
119
Reading Setup Data
119
Reading Measurement Data
120
Transferring Speci C Data to a File
121
Complete Example Program for Vth Measurement
124
Example Application Setup for Vth Measurement
126
SCPI Programming
131
Preparation before Controlling the HP 4155A/56A Via HP-IB
133
Controlling from Built-In IBASIC Controller
133
SCPI Command Hierarchy
134
Using a Semicolon to Reduce Typing
134
To Control HP 4155A/56A by HP BASIC Programming
135
Programming: Measurement Setup
137
To Set or Change HP 4155/56 Setup Data Values
138
To Read Setup Data Values
140
Programming: Measurement Execution
141
To Execute a Sweep or Sampling Measurement
142
To Force Stress
144
To Start the Knob Sweep Function
146
To Control Standby Units
147
Programming: File Operation
149
To Store Setup Data to Diskette or Internal Memory
150
To Store Measurement Data to Diskette or Internal
151
Memory
151
To Load Setup Data from Diskette or Internal Memory
152
To Load Measurement Data from Diskette or Internal Memory
153
Programming: Data Transfer
154
To Read Measurement Data
155
To Transfer Data to HP 4155A/4156A (Using User Variable)
156
Programming: Print/Plot Operation
160
To Output Setup Data to Printer/Plotter
161
To Output Graphics Result Data to Printer/Plotter
166
To Output List Results Data to Printer/Plotter
169
To Dump Screen Image to Printer/Plotter
172
To Save Hardcopy Image to Diskette
175
Disabling Instrument Screen Update to Improve Speed
177
Auto-Loading of Files
178
Programming Example
179
Running HP 4145A/B Program Directly on HP 4155A/4156A
183
Non-Supported Commands
184
Considerations about DI Erences
185
Spot Measurement
185
Sweep Steps in Logarithmic Step Mode
185
Terminator
186
Sample Application Programs
189
Flash EEPROM Test
190
Device Connection for nor Type Flash EEPROM
191
Device Connection for NAND Type Flash EEPROM
192
Program Customization
197
Subprogram "Test Setting"
197
Measurement Setup File for Vth Measurement (for nor Type)
198
Stress Setup Fi le for Write Pulse of nor Type
199
Stress Setup File for Erase Pulse of nor Type
199
Stress Setup File for Write Pulse of NAND Type
200
Stress Setup Fi le for Erase Pulse of NAND Type
200
Program Listing
201
Time Dependent Dielectric Breakdown (TDDB)
207
Customization
208
Electromigration
209
Manual Changes Depending on ROM Version
213
Timing Considerations
214
Data Length Considerations
217
Different Data Length in System Mode
217
Different Data Length in User Mode
220
Index
223
Other manuals for HP 4155A
User's Task Guide
279 pages
Quick Start Guide
34 pages
Print/Plot Guide
61 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP 4155A and is the answer not in the manual?
Ask a question
