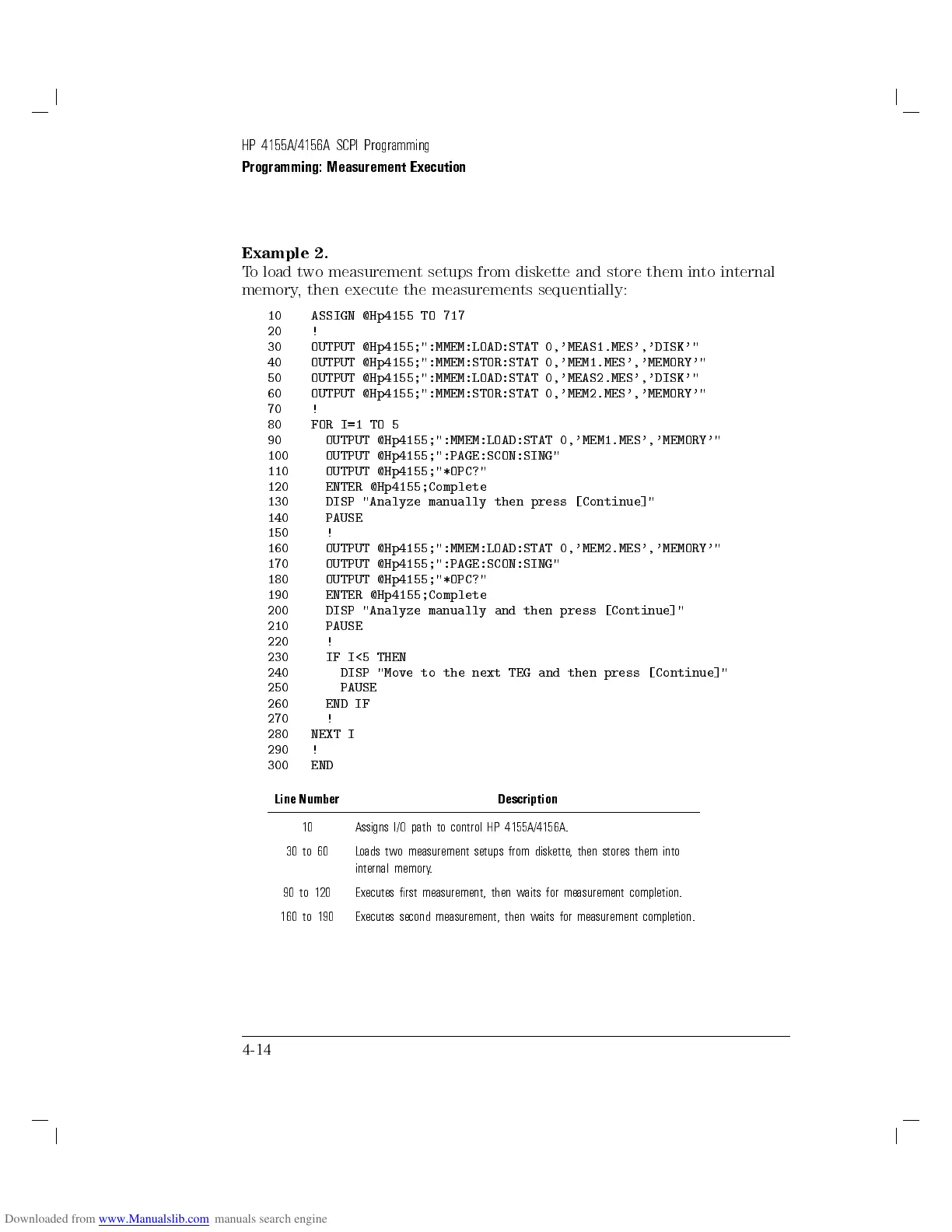

HP 4155A/4156A SCPI Programming
Programming: Measurement Execution
Example 2.
To load two measurement setups from diskette and store them into internal
memory, then execute the measurements sequentially:
10 ASSIGN @Hp4155 TO 717
20 !
30 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'MEAS1.MES','DISK'"
40 OUTPUT @Hp4155;":MMEM:STOR:STAT 0,'MEM1.MES','MEMORY'"
50 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'MEAS2.MES','DISK'"
60 OUTPUT @Hp4155;":MMEM:STOR:STAT 0,'MEM2.MES','MEMORY'"
70 !
80 FOR I=1 TO 5
90 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'MEM1.MES','MEMORY'"
100 OUTPUT @Hp4155;":PAGE:SCON:SING"
110 OUTPUT @Hp4155;"*OPC?"
120 ENTER @Hp4155;Complete
130 DISP "Analyze manually then press [Continue]"
140 PAUSE
150 !
160 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'MEM2.MES','MEMORY'"
170 OUTPUT @Hp4155;":PAGE:SCON:SING"
180 OUTPUT @Hp4155;"*OPC?"
190 ENTER @Hp4155;Complete
200 DISP "Analyze manually and then press [Continue]"
210 PAUSE
220 !
230 IF I<5 THEN
240 DISP "Move to the next TEG and then press [Continue]"
250 PAUSE
260 END IF
270 !
280 NEXT I
290 !
300 END
Line Number Description
10 Assigns I/O path to control HP 4155A/4156A.
30 to 60 Loads two measurement setups from diskette, then stores them into
internal memory.
90 to 120 Executes rst measurement, then waits for measurement completion.
160 to 190 Executes second measurement, then waits for measurement completion.
4-14
