Getting Started on Programming the HP 4155A/4156A

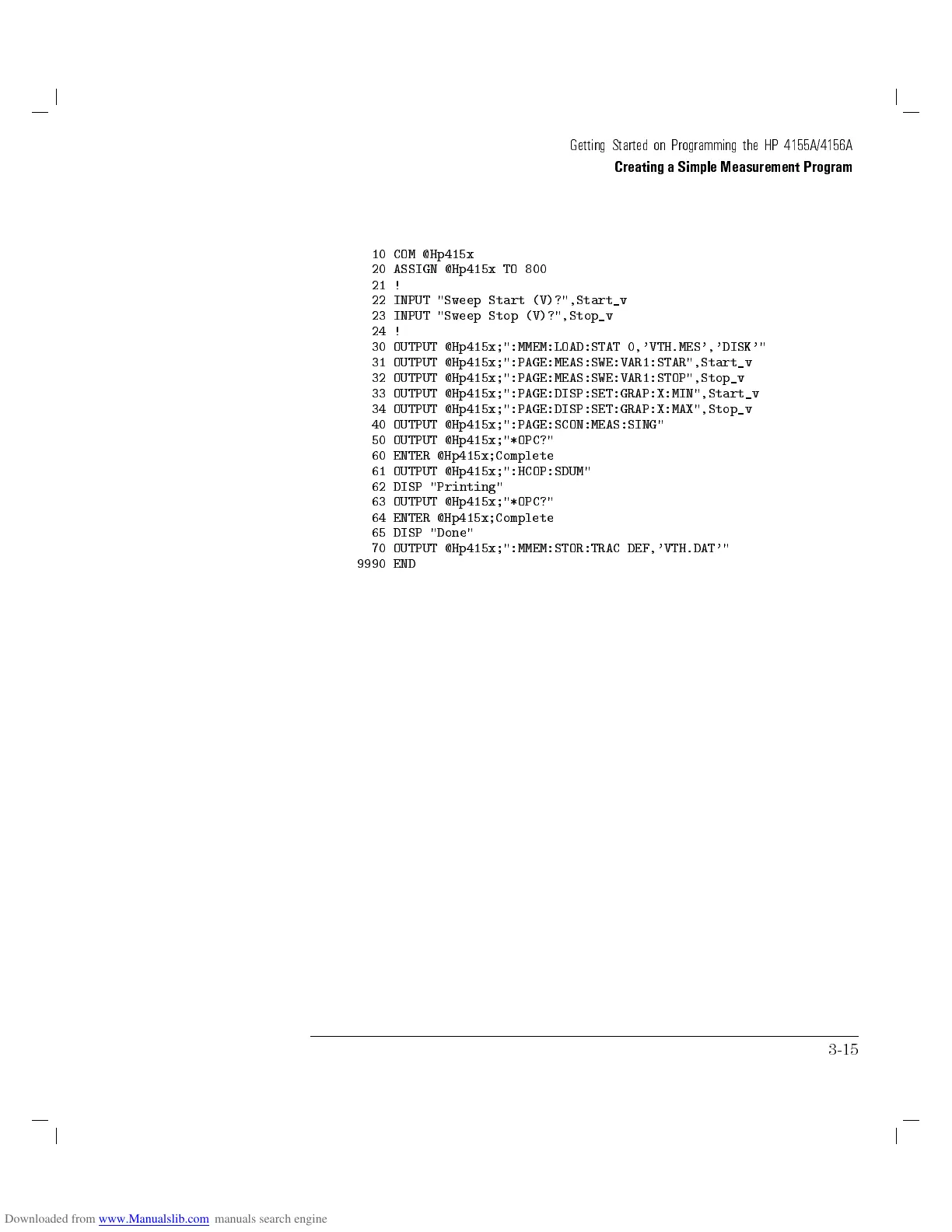

Creating a Simple Measurement Program
10 COM @Hp415x
20 ASSIGN @Hp415x TO 800
21 !
22 INPUT "Sweep Start (V)?",Start_v
23 INPUT "Sweep Stop (V)?",Stop_v
24 !
30 OUTPUT @Hp415x;":MMEM:LOAD:STAT 0,'VTH.MES','DISK'"
31 OUTPUT @Hp415x;":PAGE:MEAS:SWE:VAR1:STAR",Start_v
32 OUTPUT @Hp415x;":PAGE:MEAS:SWE:VAR1:STOP",Stop_v
33 OUTPUT @Hp415x;":PAGE:DISP:SET:GRAP:X:MIN",Start_v
34 OUTPUT @Hp415x;":PAGE:DISP:SET:GRAP:X:MAX",Stop_v
40 OUTPUT @Hp415x;":PAGE:SCON:MEAS:SING"
50 OUTPUT @Hp415x;"*OPC?"
60 ENTER @Hp415x;Complete
61 OUTPUT @Hp415x;":HCOP:SDUM"
62 DISP "Printing"
63 OUTPUT @Hp415x;"*OPC?"
64 ENTER @Hp415x;Complete
65 DISP "Done"
70 OUTPUT @Hp415x;":MMEM:STOR:TRAC DEF,'VTH.DAT'"
9990 END
3-15
