HP 4155A/4156A SCPI Programming
SCPI Programming Basics

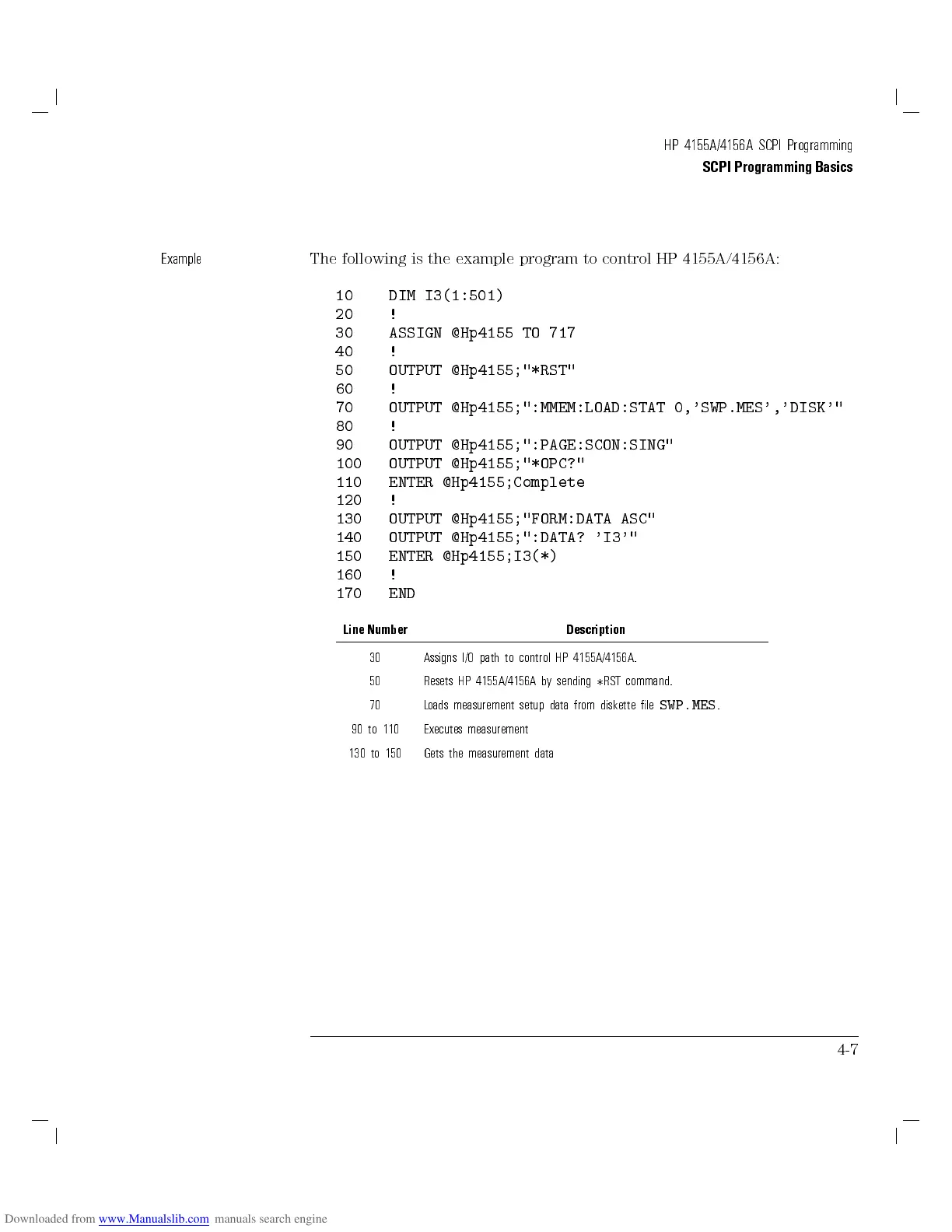

Example The following is the example program to control HP 4155A/4156A:
10 DIM I3(1:501)
20 !
30 ASSIGN @Hp4155 TO 717
40 !
50 OUTPUT @Hp4155;"*RST"
60 !
70 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'SWP.MES','DISK'"
80 !
90 OUTPUT @Hp4155;":PAGE:SCON:SING"
100 OUTPUT @Hp4155;"*OPC?"
110 ENTER @Hp4155;Complete
120 !
130 OUTPUT @Hp4155;"FORM:DATA ASC"
140 OUTPUT @Hp4155;":DATA? 'I3'"
150 ENTER @Hp4155;I3(*)
160 !
170 END
Line Number Description
30 Assigns I/O path to control HP 4155A/4156A.
50 Resets HP 4155A/4156A by sending 3 RST command.
70 Loads measurement setup data from diskette le SWP.MES .
90 to 110 Executes measurement
130 to 150 Gets the measurement data
4-7
