HP 4155A/4156A SCPI Programming
Programming: Data Transfer

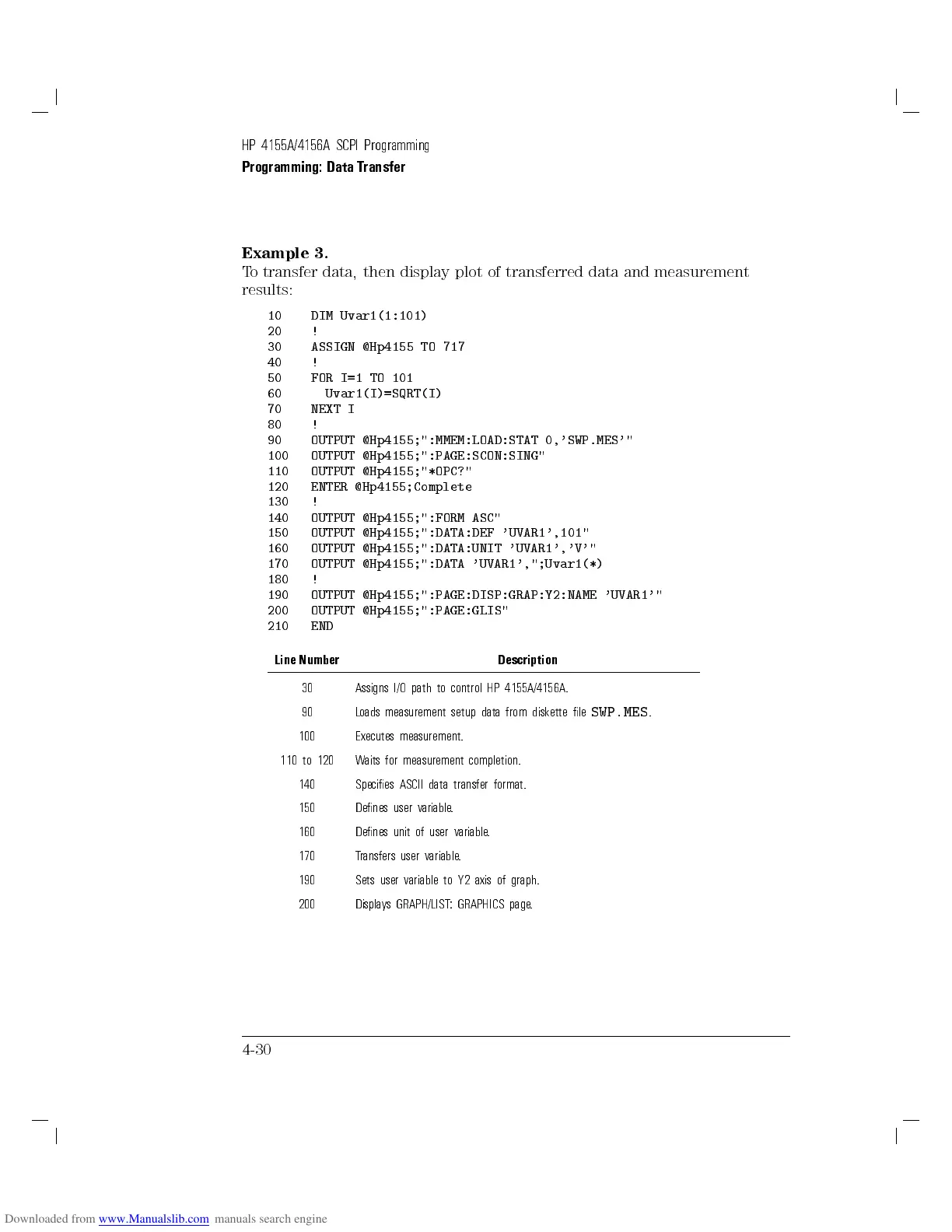

Example 3.
To transfer data, then display plot of transferred data and measurement
results:
10 DIM Uvar1(1:101)
20 !
30 ASSIGN @Hp4155 TO 717
40 !
50 FOR I=1 TO 101
60 Uvar1(I)=SQRT(I)
70 NEXT I
80 !
90 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'SWP.MES'"
100 OUTPUT @Hp4155;":PAGE:SCON:SING"
110 OUTPUT @Hp4155;"*OPC?"
120 ENTER @Hp4155;Complete
130 !
140 OUTPUT @Hp4155;":FORM ASC"
150 OUTPUT @Hp4155;":DATA:DEF 'UVAR1',101"
160 OUTPUT @Hp4155;":DATA:UNIT 'UVAR1','V'"
170 OUTPUT @Hp4155;":DATA 'UVAR1',";Uvar1(*)
180 !
190 OUTPUT @Hp4155;":PAGE:DISP:GRAP:Y2:NAME 'UVAR1'"
200 OUTPUT @Hp4155;":PAGE:GLIS"
210 END
Line Number Description
30 Assigns I/O path to control HP 4155A/4156A.
90 Loads measurement setup data from diskette le SWP.MES .
100 Executes measurement.
110 to 120 Waits for measurement completion.
140 Species ASCII data transfer format.
150 Denes user variable.
160 Denes unit of user variable.
170 Transfers user variable.
190 Sets user variable to Y2 axis of graph.
200 Displays GRAPH/LIST: GRAPHICS page.
4-30
