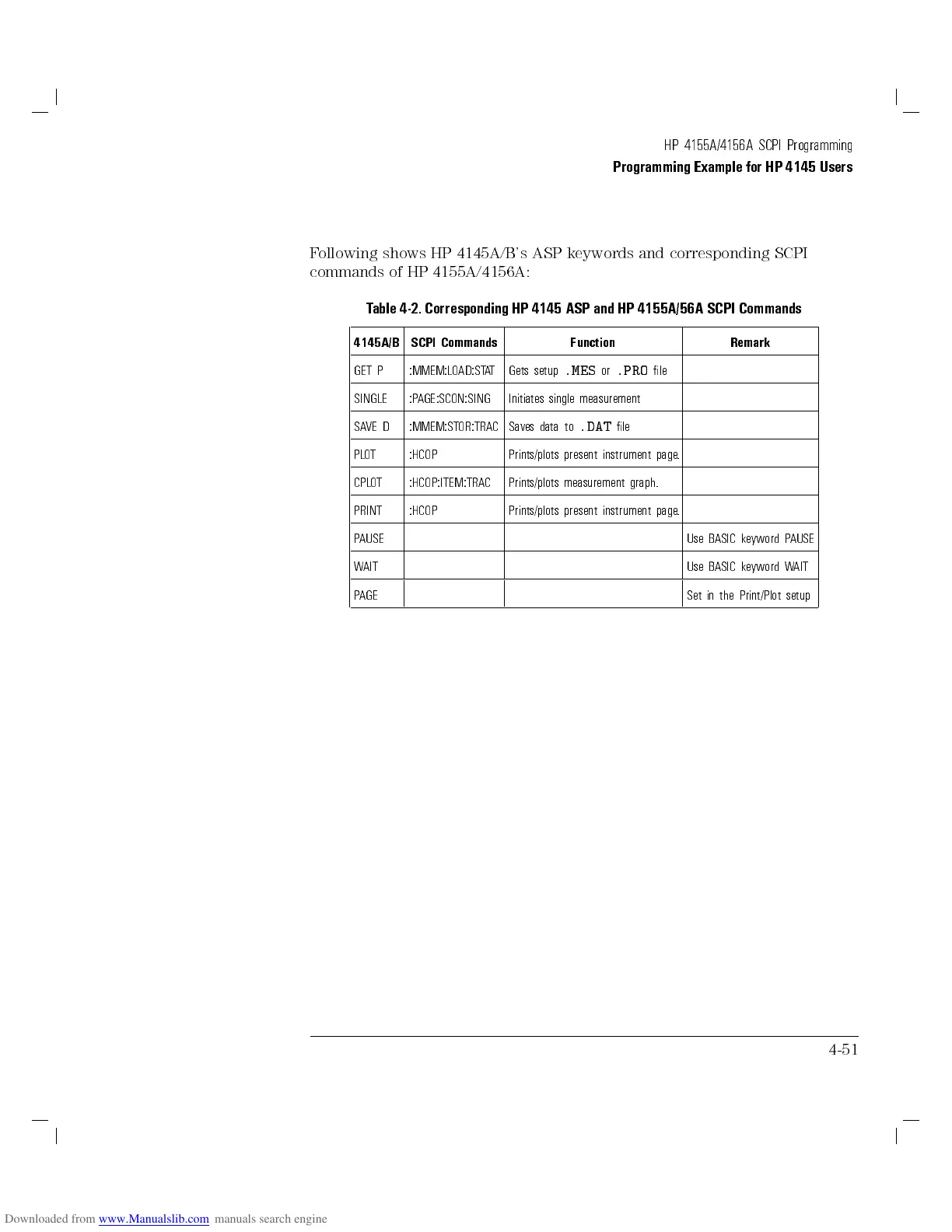

HP 4155A/4156A SCPI Programming

Programming Example for HP 4145 Users

Following shows HP 4145A/B's ASP keywords and corresponding SCPI

commands of HP 4155A/4156A:

Table 4-2. Corresponding HP 4145 ASP and HP 4155A/56A SCPI Commands

4145A/B SCPI Commands Function Remark

GET P :MMEM:LOAD:STAT Gets setup

.MES

.PRO

le

SINGLE :PAGE:SCON:SING Initiates single measurement

SAVE D :MMEM:STOR:TRAC Saves data to

.DAT

le

PLOT :HCOP Prints/plots present instrument page.

CPLOT :HCOP:ITEM:TRAC Prints/plots measurement graph.

PRINT :HCOP Prints/plots present instrument page.

PAUSE Use BASIC keyword PAUSE

WAIT Use BASIC keyword WAIT

PAGE Set in the Print/Plot setup

4-51
