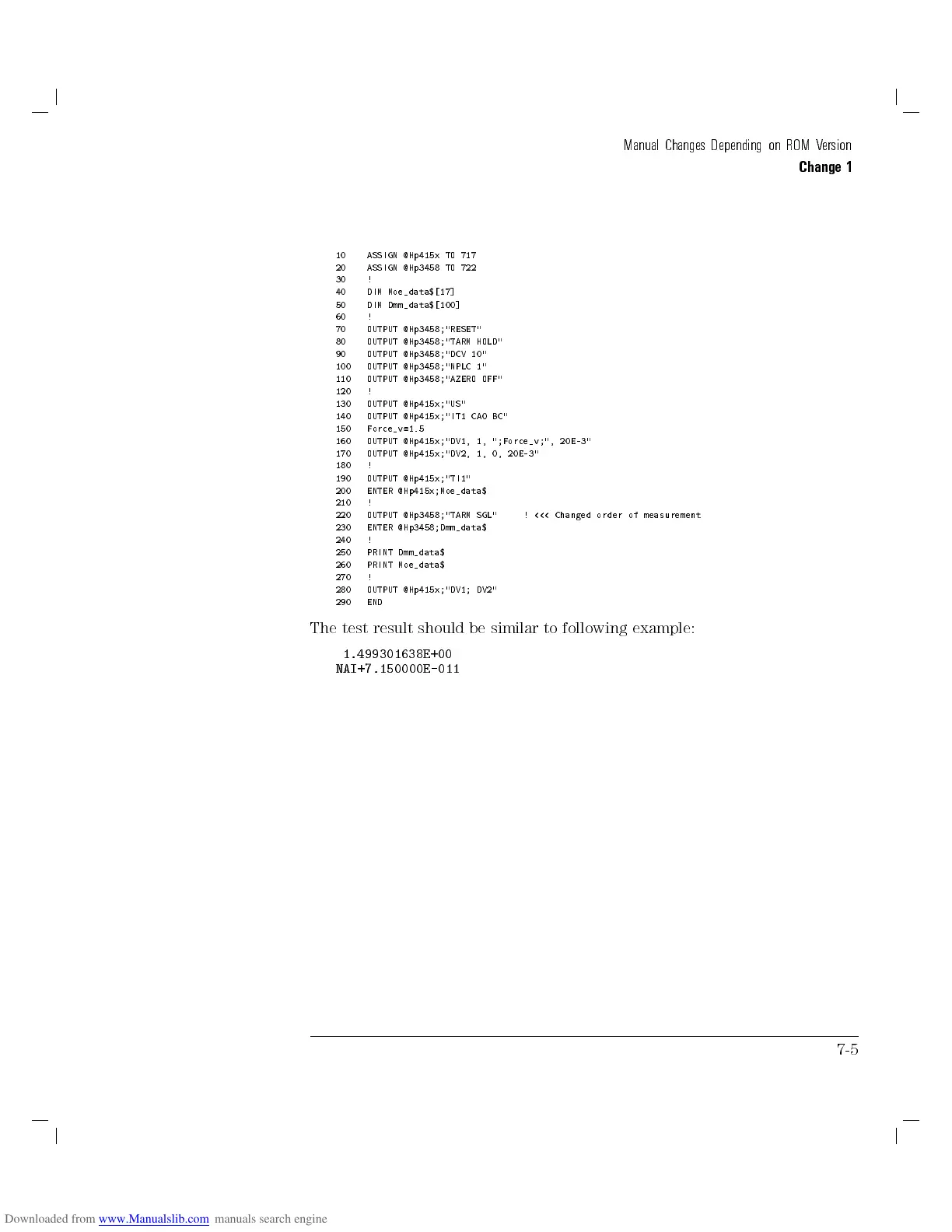

Manual Changes Depending on ROM Version
Change 1
10 ASSIGN @Hp415x TO 717
20 ASSIGN @Hp3458 TO 722
30 !
40 DIM Moe_data$[17]
50 DIM Dmm_data$[100]
60 !
70 OUTPUT @Hp3458;"RESET"
80 OUTPUT @Hp3458;"TARM HOLD"
90 OUTPUT @Hp3458;"DCV 10"
100 OUTPUT @Hp3458;"NPLC 1"
110 OUTPUT @Hp3458;"AZERO OFF"
120 !
130 OUTPUT @Hp415x;"US"
140 OUTPUT @Hp415x;"IT1 CA0 BC"
150 Force_v=1.5
160 OUTPUT @Hp415x;"DV1, 1, ";Force_v;", 20E-3"
170 OUTPUT @Hp415x;"DV2, 1, 0, 20E-3"
180 !
190 OUTPUT @Hp415x;"TI1"
200 ENTER @Hp415x;Moe_data$
210 !
220 OUTPUT @Hp3458;"TARM SGL" ! <<< Changed order of measurement
230 ENTER @Hp3458;Dmm_data$
240 !
250 PRINT Dmm_data$
260 PRINT Moe_data$
270 !
280 OUTPUT @Hp415x;"DV1; DV2"
290 END
The test result should be similar to following example:
1.499301638E+00
NAI+7.150000E-011
7-5
