HP Designjet 1050c Service Manual

Removal and Installation
8-6
HP DesignJets 1050C and 1055CM Printers Service Manual
Installation of the Right Hand Cover
NOTE Ensure the front panel cable and the aerosol fan cables are
secured inside the right hand cover with cable clamps and
retaining clips.
NOTE At the rear of the right hand side chassis is a hole for the cables
to go through. If the cables are not through this hole when the
cover is in place on the printer the cover cannot be properly
installed.
Front Panel Assembly
Removal
1. Remove the Printhead Cleaners (Refer to the User Guide).
WARNING Switch off the printer and remove the power cable.
1. Remove the following:
1. "Right Hand Cover" see page 8-4.
2. The Front Panel Assembly and the Front-Panel Assembly Cable can
be removed by releasing them from the retaining clips (item 1) and
cable clamps (item 2) inside the Right Hand Cover (item 3) (Refer
to Figure 2).

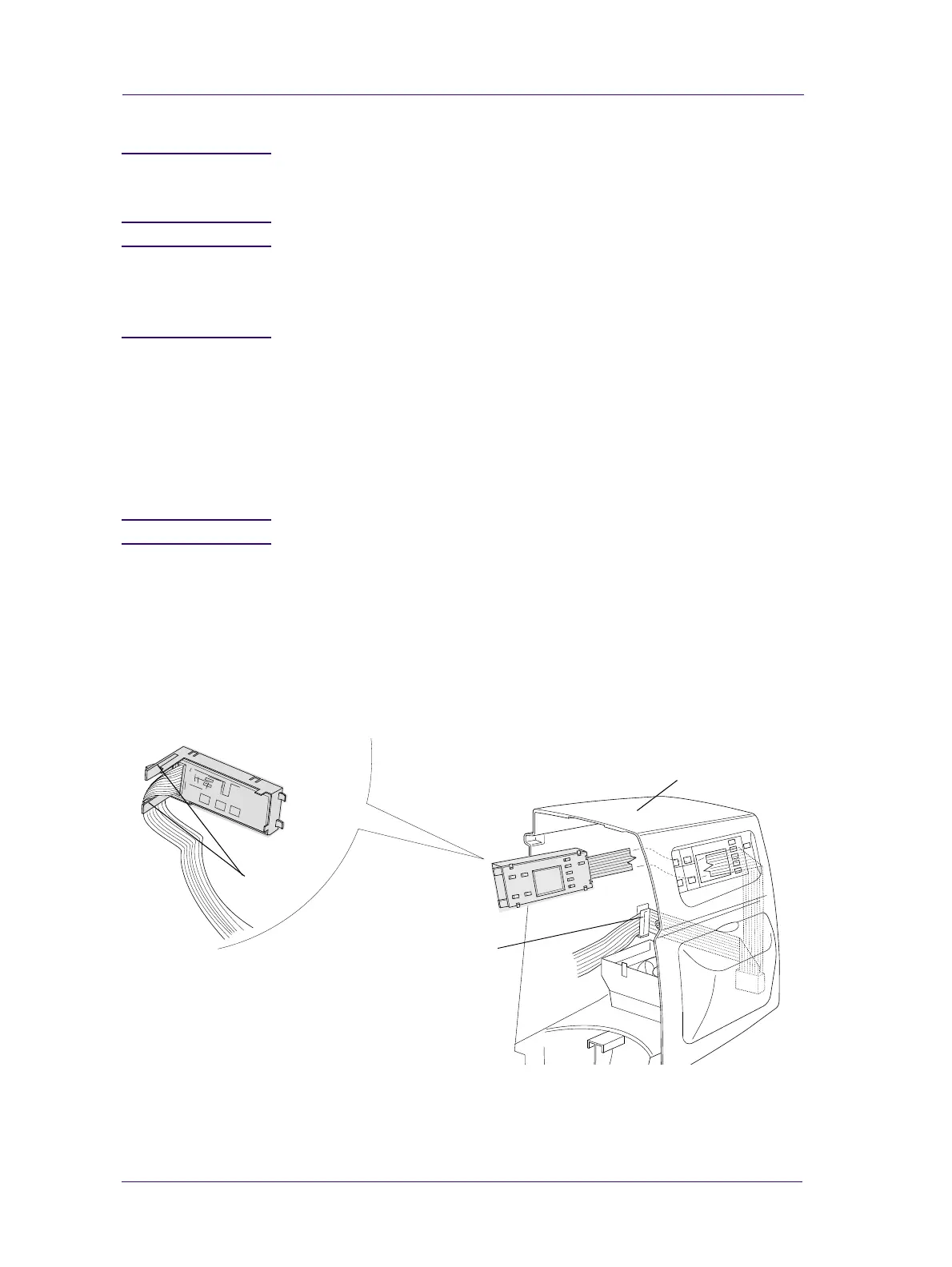

Figure 2: Front Panel
1
2
C607436
3

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
