HP Designjet 1050c Service Manual

Removal and Installation
8-27
HP DesignJets 1050C and 1055CM Printers Service Manual

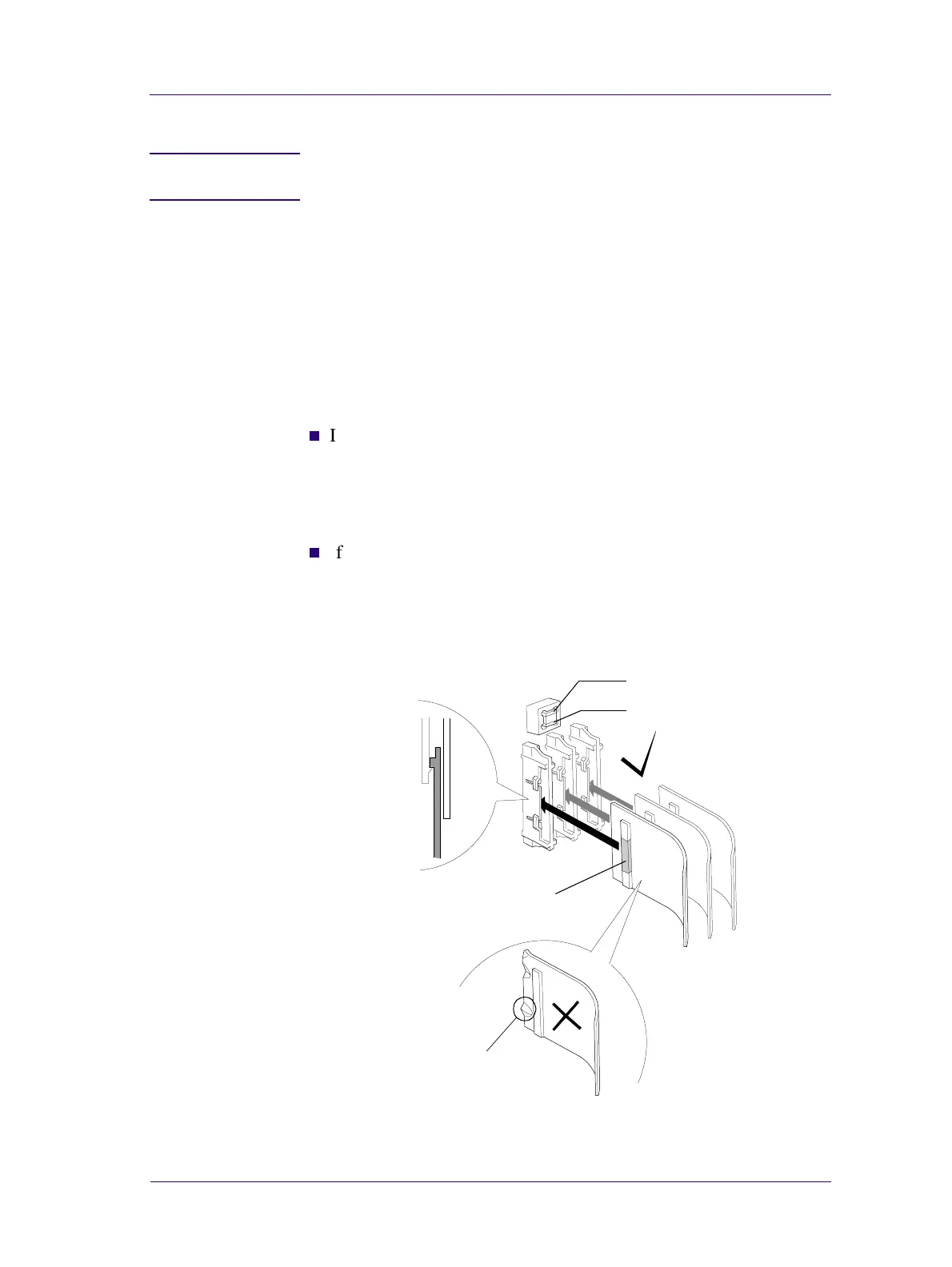

Installation of the Electronics Module
WARNING When reconnecting the Trailing Cable to the Electronics
Module, make sure you connect it correctly as follows:
1. Start reconnecting the Trailing Cable from left to right (the longest
strip will be connected to the 1st clip from the right).
2. Make sure you push the Trailing Cable in straight and not bent. Once
the Trailing Cable is inserted, you should hear an audible click.
3. When the Trailing Cable is inserted correctly, the shaded part (as
shown below) will not be visible.
4. Before powering ON the Printer, check the continuity (using a
tester) between the two points (as shown below).
n If there is continuity between the two points, then the Trailing
Cable is installed incorrectly. Do NOT power ON the Printer
because you will burn an internal Electronics Module fuse.
Disconnect the Trailing Cable and reconnect again using the
above steps.
n If there is no continuity between the two points, then it is
possible to power ON the Printer without burning the internal
Electronics Module fuse, but there is a possibility that you may
still get the System Error Code 0B0006, in which case you have
to reconnect the Trailing Cable using the above steps.
Check Continuity
between these 2 points
This part will NOT
be visible when installed
correctly
Do Not install a
damaged Trailing Cable
C607440

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
