HP Designjet 1050c Service Manual

Removal and Installation
8-60
HP DesignJets 1050C and 1055CM Printers Service Manual
Ink Leak Detector Assembly
Refer to Figure 64 to Figure 66.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Window" see page 8-30.
2. "Top Cover" see page 8-31.
3. "Back Cover" See Page 8-32.
4. "Right Rear Cover" See Page 8-24.
NOTE Working from the rear of the printer.
2. Open the door at the back of the left hand cover by removing two
T15 screws (item 1) (refer to Figure 64).

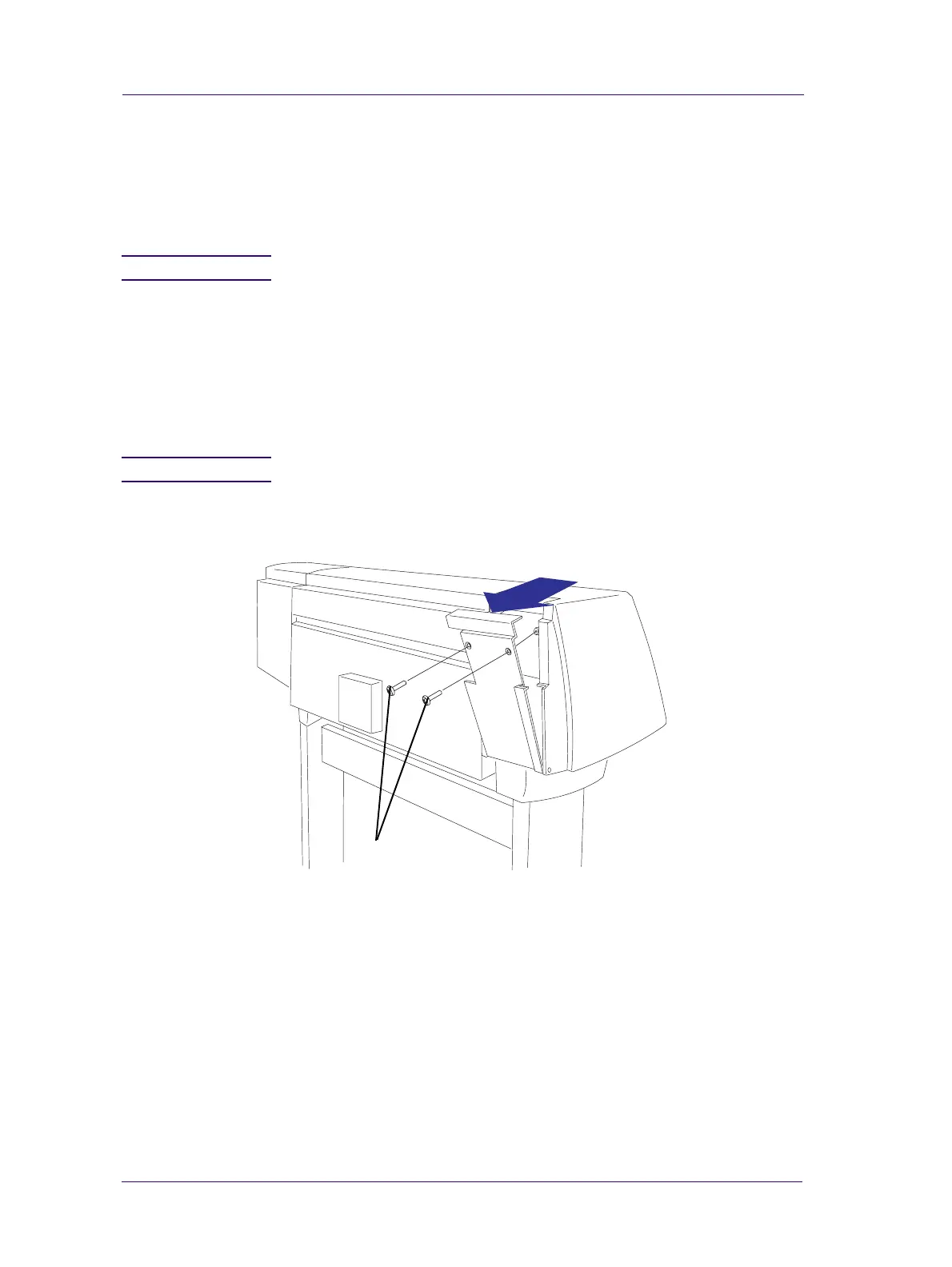

Figure 64: Rear Left Hand Cover
3. Disconnect the Leak Detector Cable from position P4 INK LEAK
DETECTOR on the Electronics Module.
4. Locate the clip that attaches the Leak Detector Cable to the side
plate. Remove the screw that attaches the clip to the side plate.
1

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
