Removal and Installation
8-37
HP DesignJets 1050C and 1055CM Printers Service Manual
Tensioner
Refer to Figure 33 to Figure 35.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following
1. "Left Hand Cover" see page 8-13.
2. To release the tension on the belt (item 1) from the left hand side of
the Printer, squeeze the spring (item 2) using the tensioner wedge
clip (item 3) until you hear it click into place (refer to Figure 33).

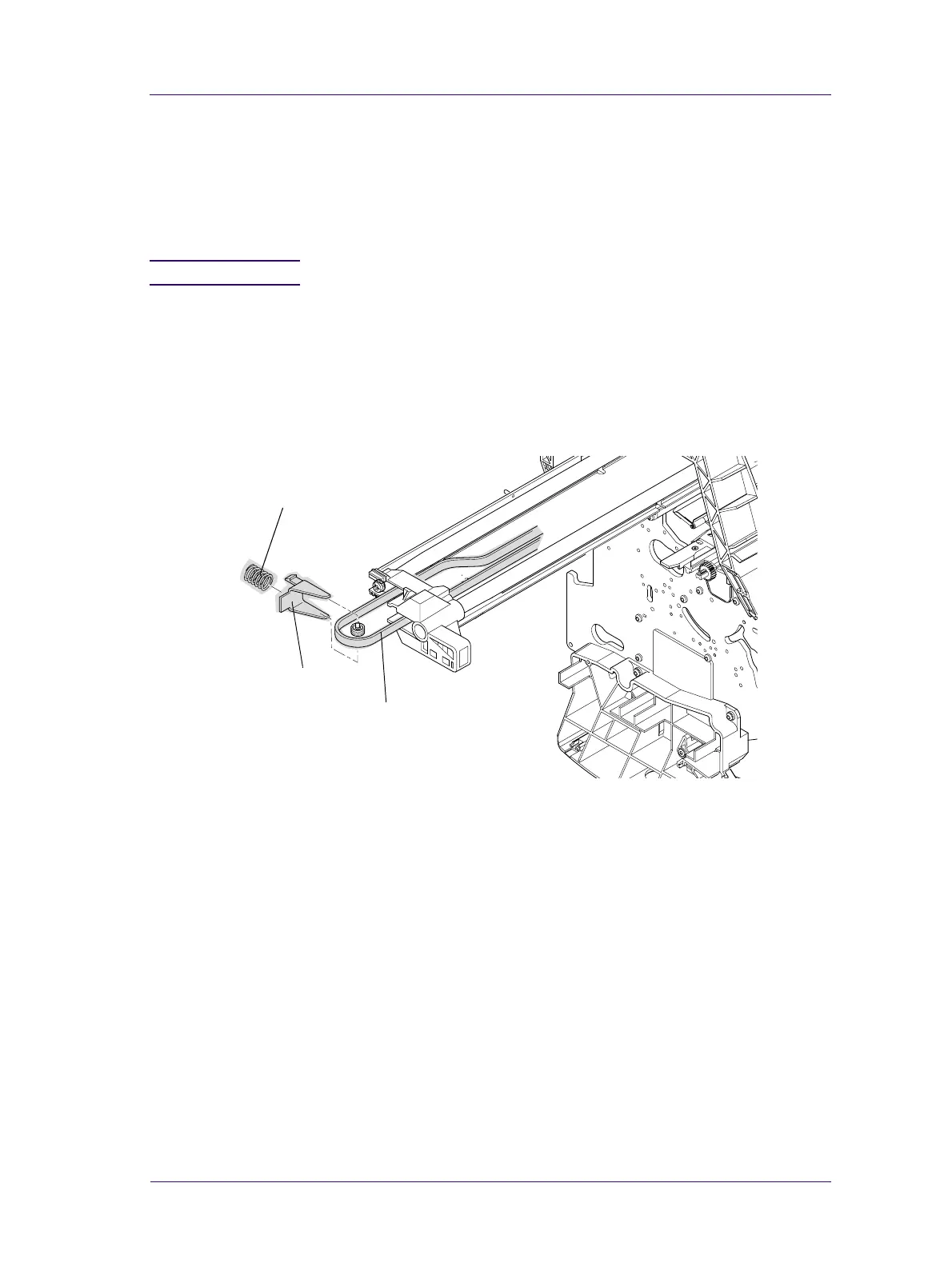

Figure 33: Tensioner Assembly
1
2
3
C607415
To Next Page
