Removal and Installation
8-13
HP DesignJets 1050C and 1055CM Printers Service Manual
Left Hand Cover
Refer to Figure 8 to Figure 15.
Removal
1. Remove the Ink Cartridges (Refer to the User Guide).
WARNING Switch off the printer and remove the power cord.
NOTE Working from the rear of the printer.
1. Open the door at the back of the left hand cover by removing the
two T-15 screws (item 1) (refer to Figure 8).

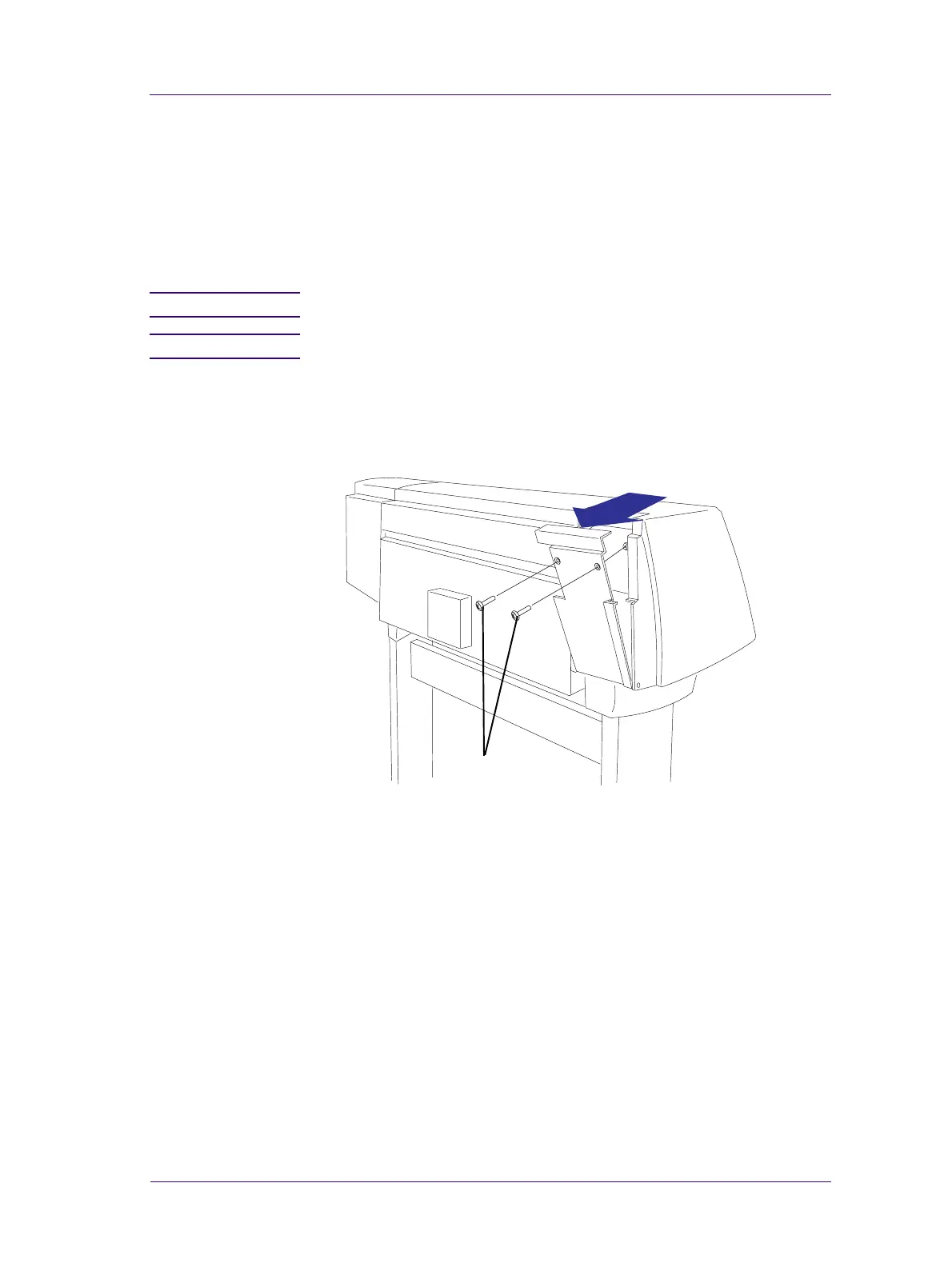

Figure 8: Left Hand Cover
1
