NOTE In the following steps, refer to Figure 15.
8. Remove two T-15 screws (item 1) from the left hand trim.
9. Remove two T-15 screws (item 2) from the rear of the left hand
cover which are securing the cover to the left hand side chassis.
NOTE Be careful not to drop the cover once the securing fasteners have
been removed.
10. Remove the left hand cover (item 3) from the printer.

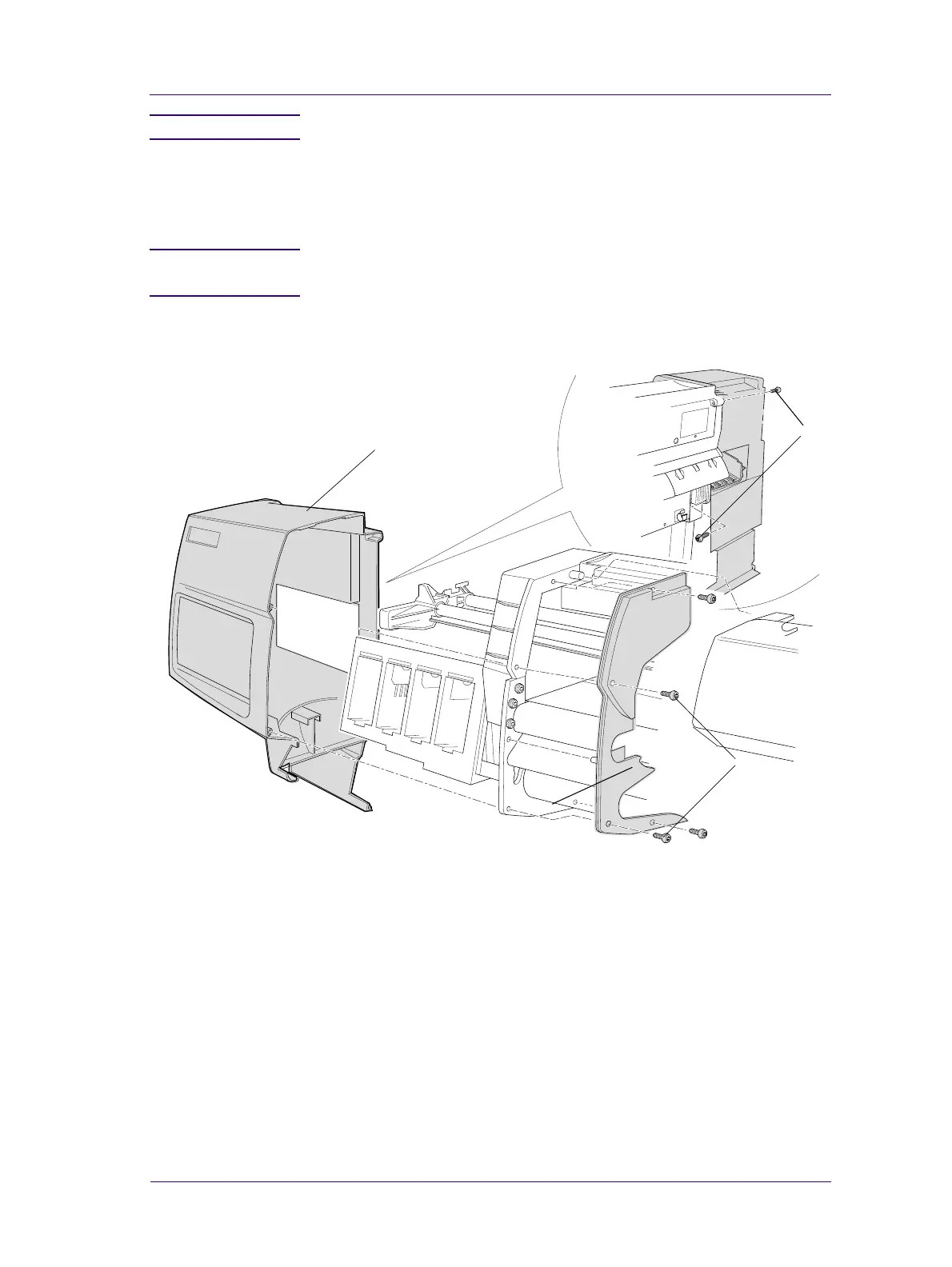

Figure 15: Left Hand Cover
1
2
3
4
C607406
