HP Designjet 1050c Service Manual

Removal and Installation
8-73
HP DesignJets 1050C and 1055CM Printers Service Manual
Pinch-Wheel Assembly and Cam
Refer to Figure 81 and Figure 82.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Right Hand Cover" see page 8-4.
3. "Electronics Module" see page 8-25.
4. "Ink Supply System Assembly" see page 8-19.
5. "Clutch assembly" see page 8-21.
6. "Roller Guide" see page 8-66.
2. Remove the T-10 screw (item 1) which secures the linkage rod (item
2) to the pinch-wheel cam (item 3)(refer to Figure 81).

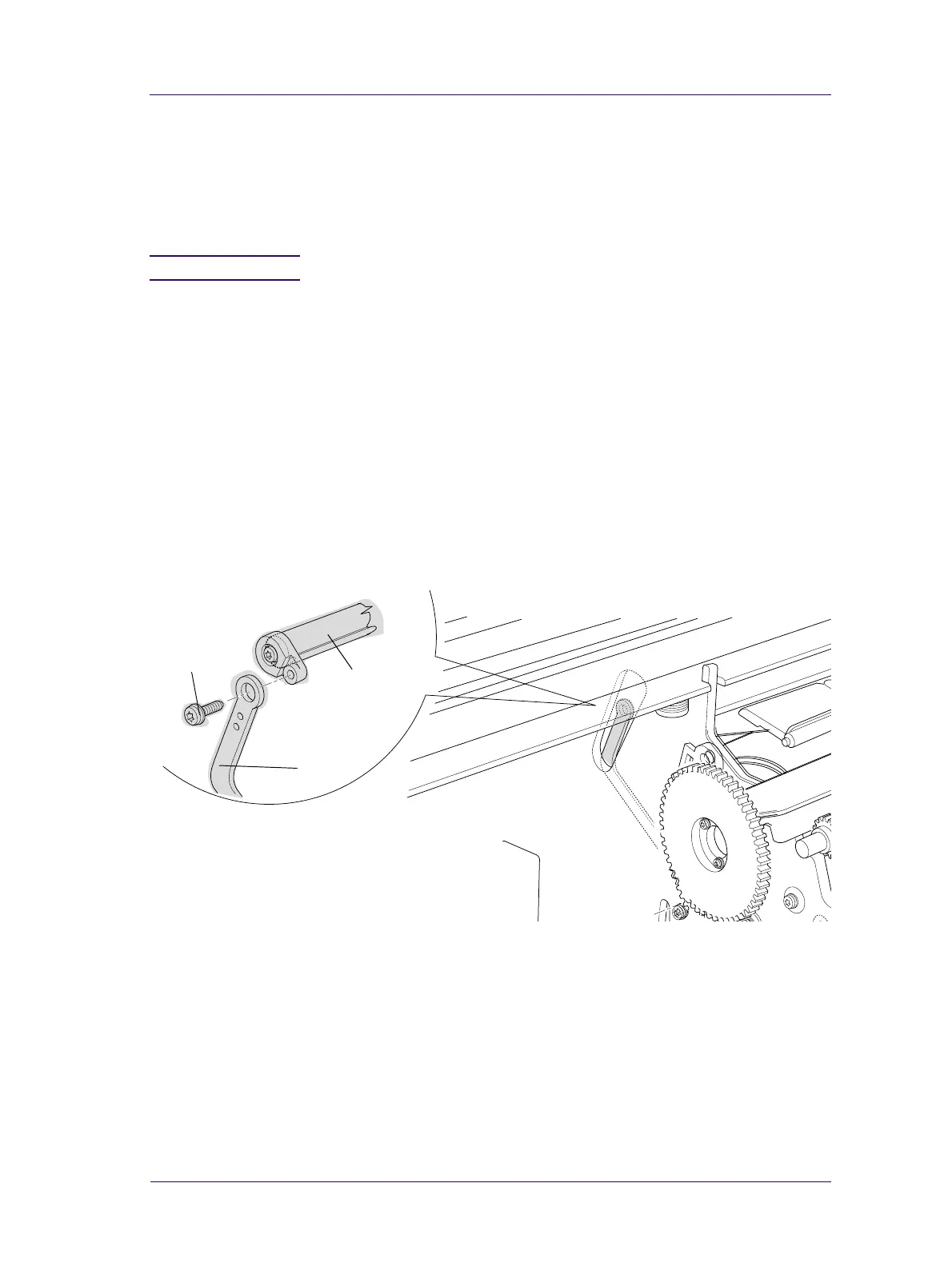

Figure 81: Pinch Wheel Cam
C607420c
1
2
3

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
