HP Designjet 1050c Service Manual

Removal and Installation
8-11
HP DesignJets 1050C and 1055CM Printers Service Manual
Vacuum Fan
Refer to Figure 6.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Right Hand Cover" see page 8-4.
2. "Service Station Assembly" see page 8-8.
2. Disconnect the vacuum fan cable from position P7 VACUUM FAN
on the electronics module.
3. Remove the four T-15 screws (item 1) securing the vacuum fan
assembly (item 2) to the right hand side chassis and remove the
assembly.

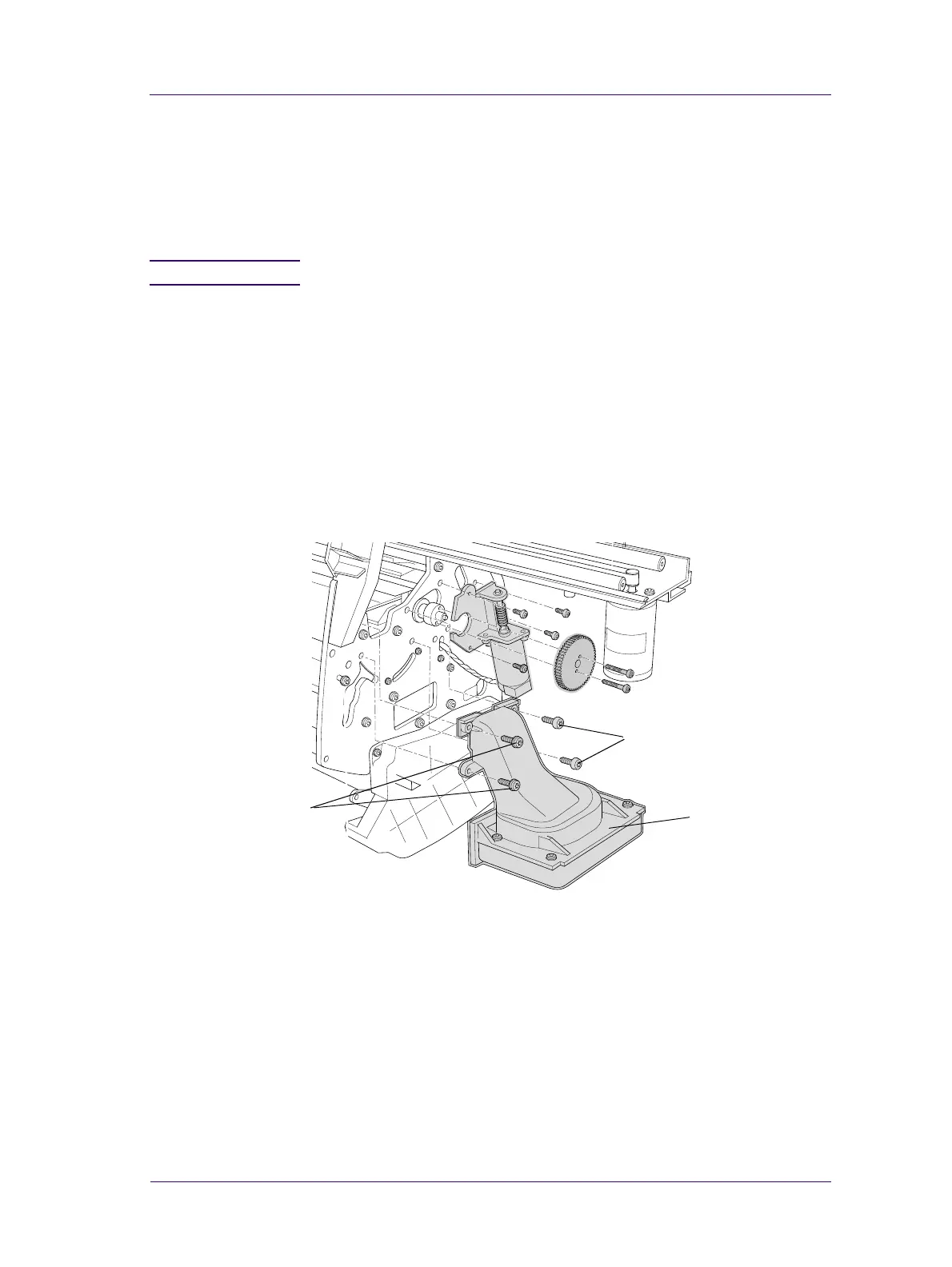

Figure 6: Vacuum Fan
C607421
1
1
2

HP Designjet 1050c Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Resolution	1200 x 600 dpi
Number of Ink Cartridges	4 (Cyan, Magenta, Yellow, Black)
Media Types Supported	Coated, glossy, plain, film, vellum, translucent bond
Maximum Media Size	36 in (914 mm) roll
Ink Types	Dye-based
Connectivity	Parallel
Memory	64 MB
Hard Drive	Not available
Media Sizes Supported	A4, A3, A2, A1, A0, B4, B3, B2, B1, B0
Roll Width	24 in, 36 in
Operating Systems Supported	Windows 2000, XP
Power Requirements	100 to 240 VAC (+/- 10%), 50/60 Hz
