Removal and Installation
8-71
HP DesignJets 1050C and 1055CM Printers Service Manual
Center Guide
Refer to Figure 78 to Figure 80.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Right Hand Cover" see page 8-4.
3. "Electronics module" see page 8-25.
4. "Ink Supply System Assembly" see page 8-19.
5. "Clutch assembly" see page 8-21.
6. "Service Station" see page 8-8.
7. "Vacuum Fan" see page 8-11.
2. Lift up the paper entry assembly.
3. Remove the two T-15 screws from the left hand side plate securing
the left side of the center guide (refer to Figure 78).

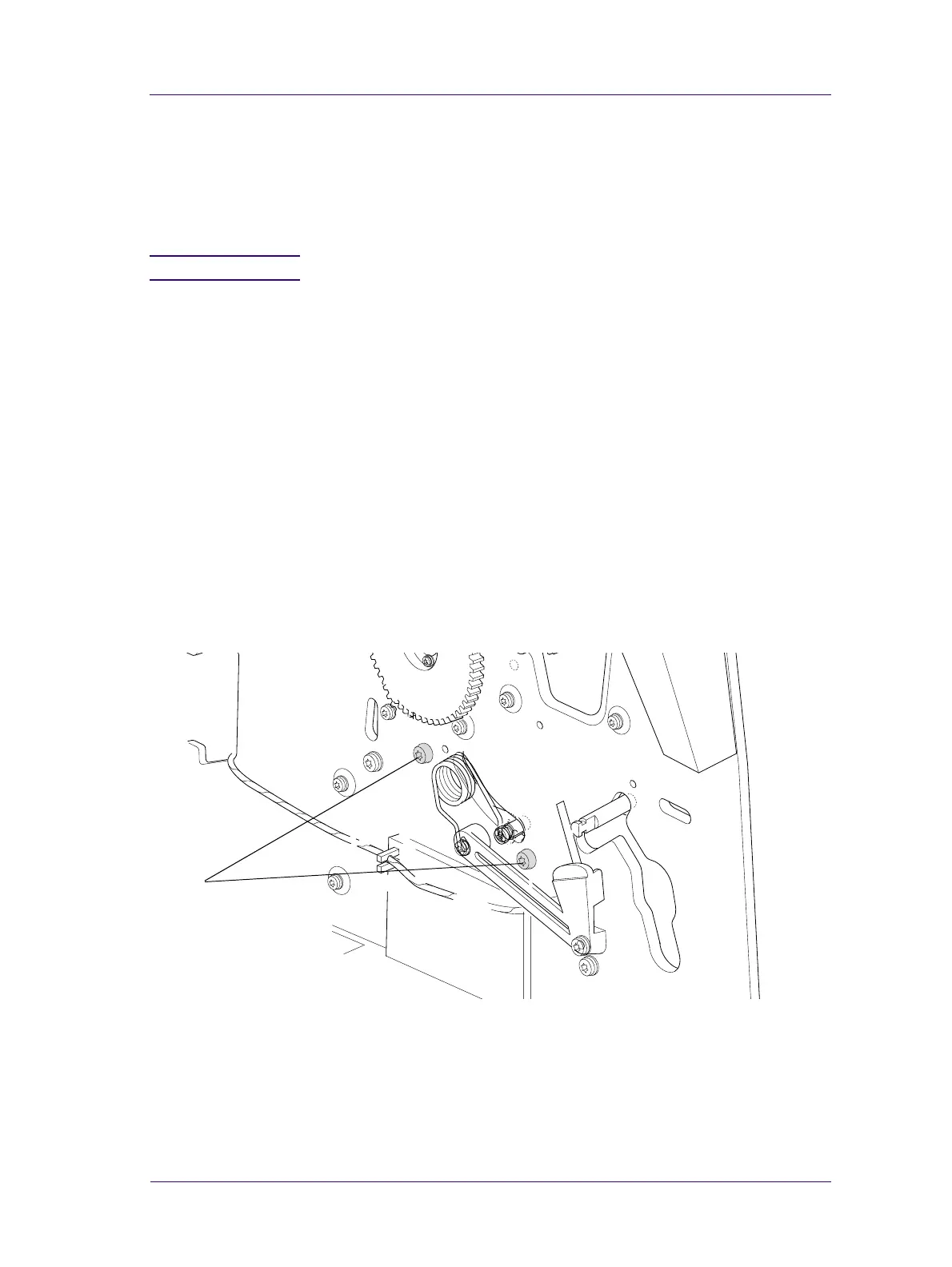

Figure 78: Left Hand Center Guide Screws
C607433
1
