HP Designjet 1050c

Removal and Installation
8-62
HP DesignJets 1050C and 1055CM Printers Service Manual
Front Platen Assembly
Refer to Figure 67.
Removal
WARNING Switch off the printer and remove the power cord.
1. Open the window.
NOTE In the following steps, please treat the screws with great care as
they can easily be damaged.
2. Remove the nine T-10 screws (item 1) from the front platen
assembly (item 2) and remove the front platen.

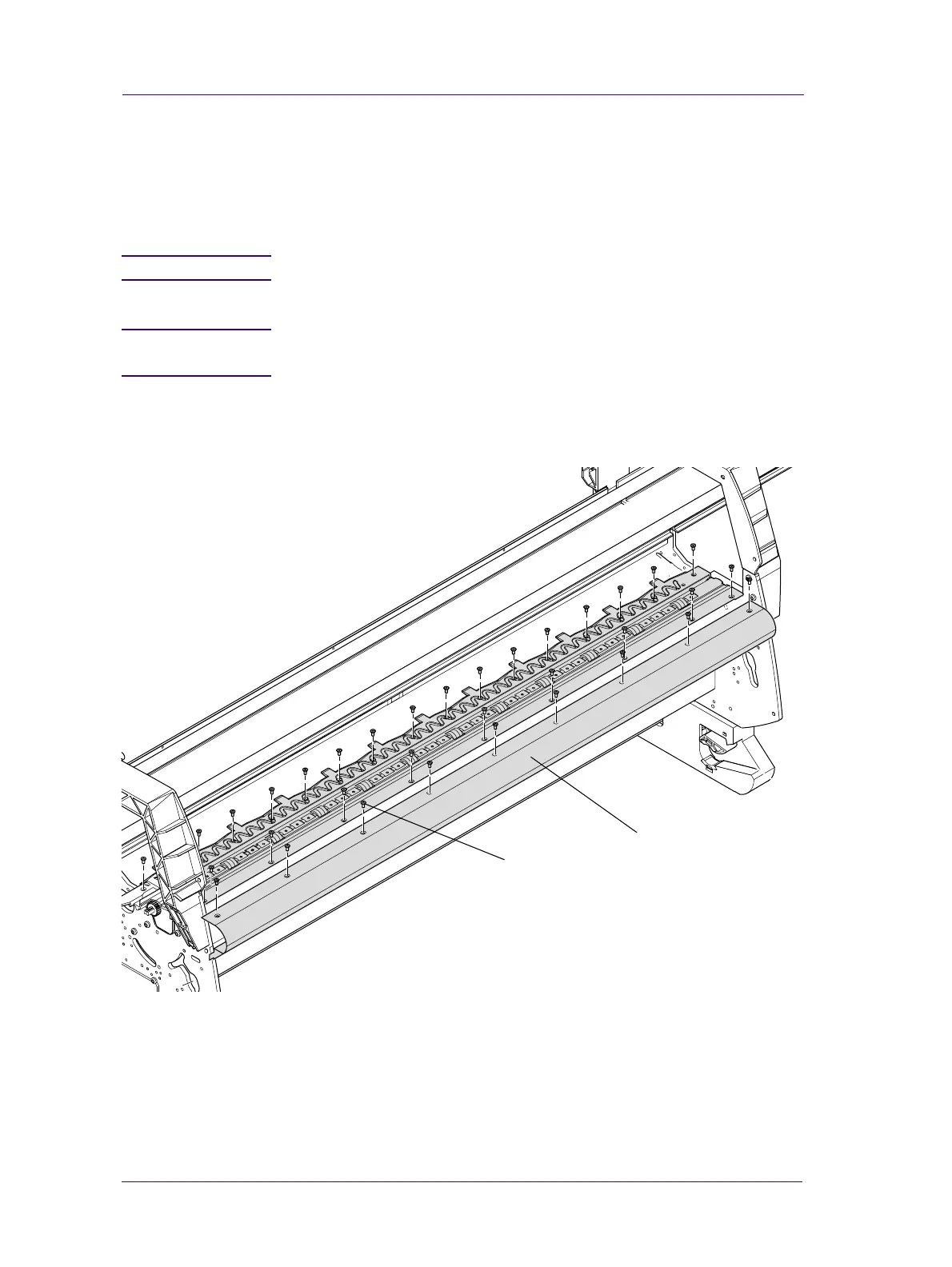

Figure 67: Front Platen Assembly
C607421
2
1
