Removal and Installation
8-33
HP DesignJets 1050C and 1055CM Printers Service Manual
Scan-axis Motor Assembly
Refer to Figure 29.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Right Hand Cover" see page 8-4.
2. "Left Rear Cover" see page 8-24.
2. Disconnect the scan motor cable from position P3 SCAN MOTOR
in the electronics module.
3. Remove the two T-15 screws (item 1) that attach the Scan-axis
motor (item 2) to the Chassis.
4. Hold the Scan-axis motor at an angle, just enough so that the belt
(item 3) can be taken off.
5. Remove the Scan-axis Motor from the printer.

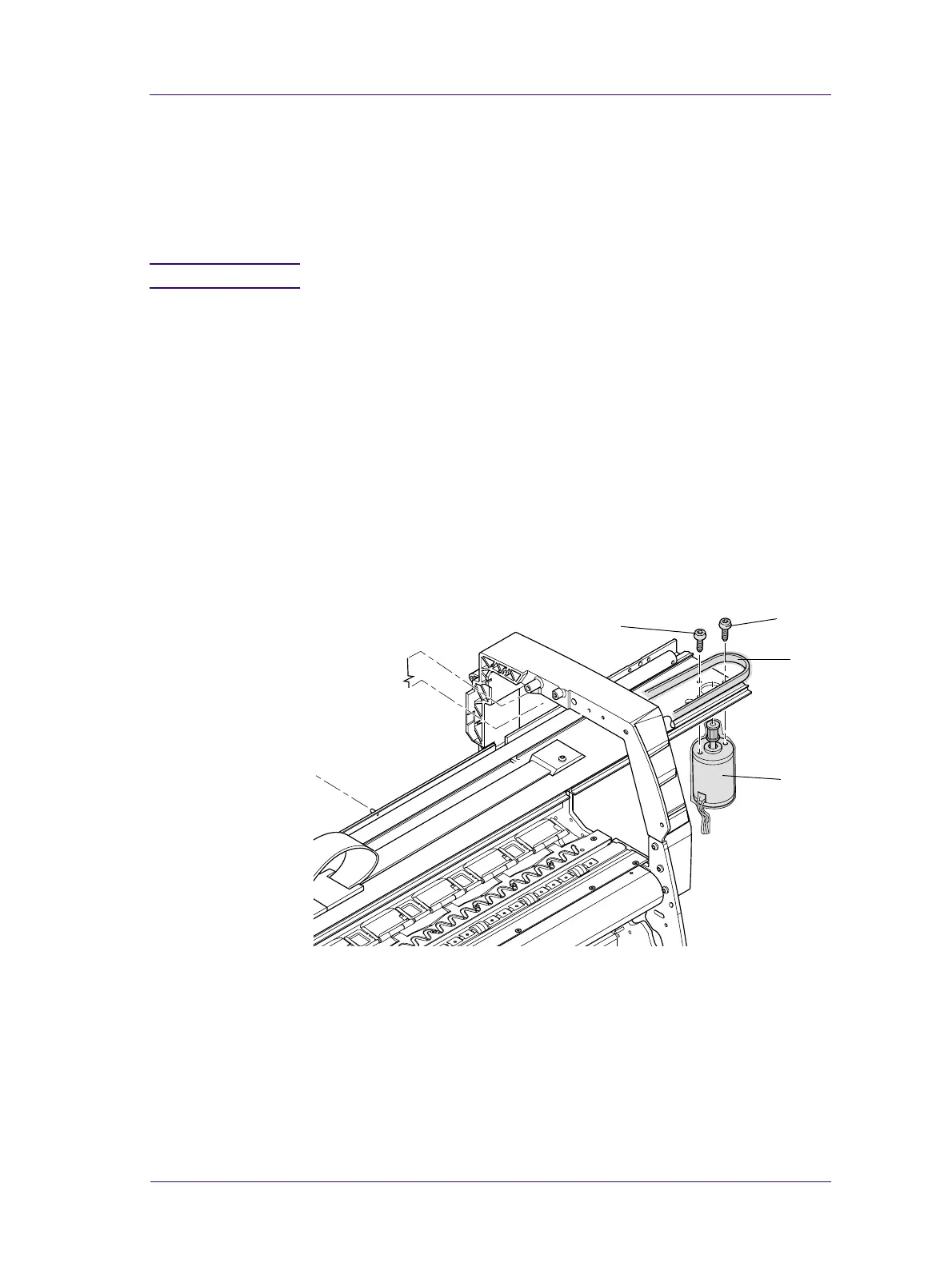

Figure 29: Scan-axis Motor Assembly
C60718
1
1
3
2
