HP Designjet 1050c Service Manual

Removal and Installation
8-19
HP DesignJets 1050C and 1055CM Printers Service Manual
Ink Supply Station Assembly (ISS)
Refer to Figure 17.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the Ink Cartridges (Refer to the User Guide).
2. Remove the following:
1. "Left Hand Cover" see page 8-13.
2. "Left Rear Cover" see page 8-24.
NOTE Working from the rear of the printer.
3. Disconnect all the cables from the right hand side of the electronics
module.
NOTE Working from the front of the printer.
4. Unclip the latch and lift up the front of the assembly to release the
front support of the ISS from a hole in the side chassis.
5. Push the ISS away from you to release the back support of the ISS
from a second hole in the side chassis.
6. Move the ISS to the left to remove completely.

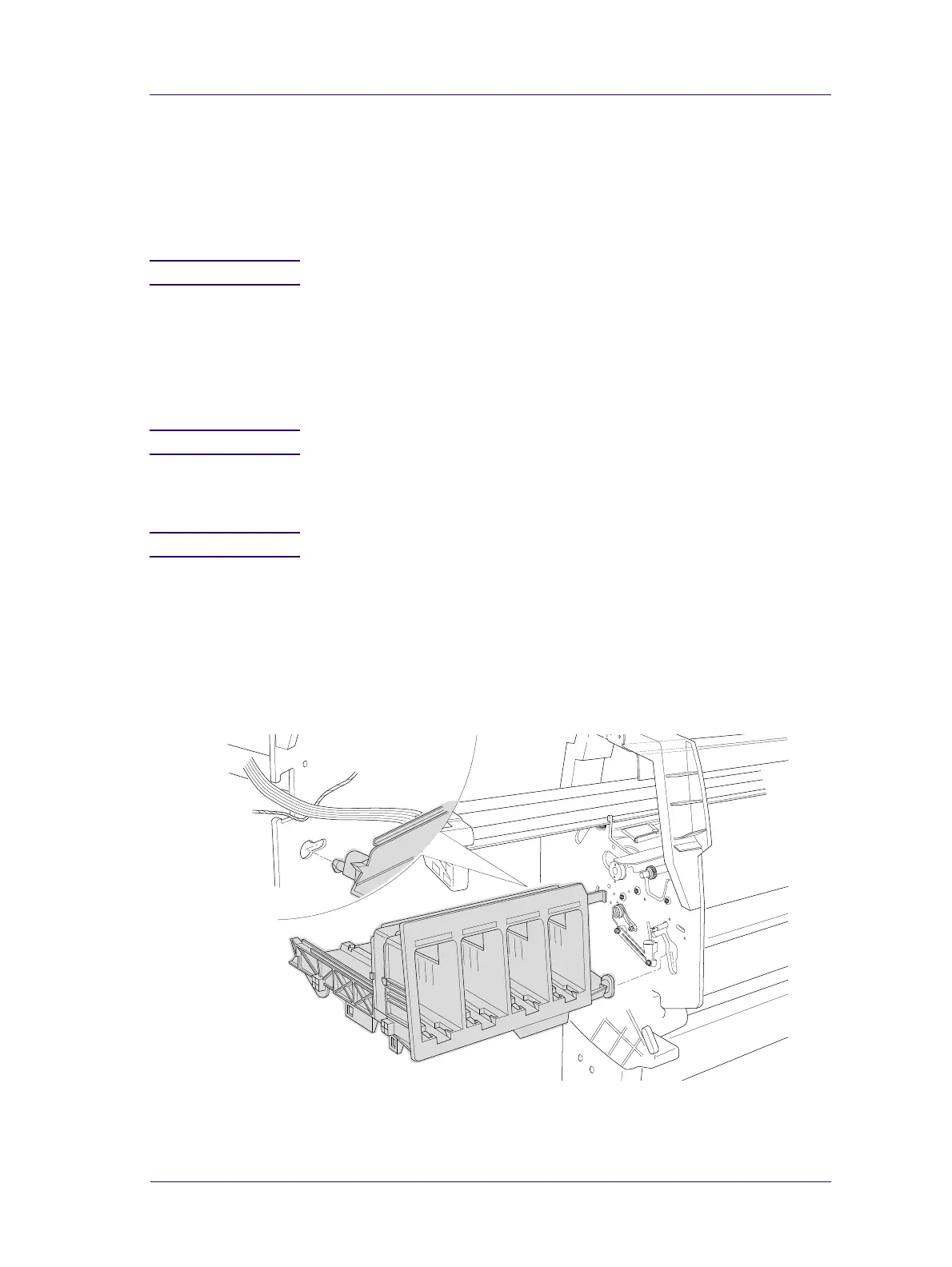

Figure 17: Ink Supply System
