Removal and Installation
8-44
HP DesignJets 1050C and 1055CM Printers Service Manual
Carriage Assembly and Belt
Refer to Figure 41 to Figure 51.
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Top Cover" see page 8-31.
2. "Right Hand Cover" see page 8-4.
3. "Left Hand Cover" see page 8-13.
2. Move the carriage to a position where you can access the printhead
tube connector (refer to Figure 41).

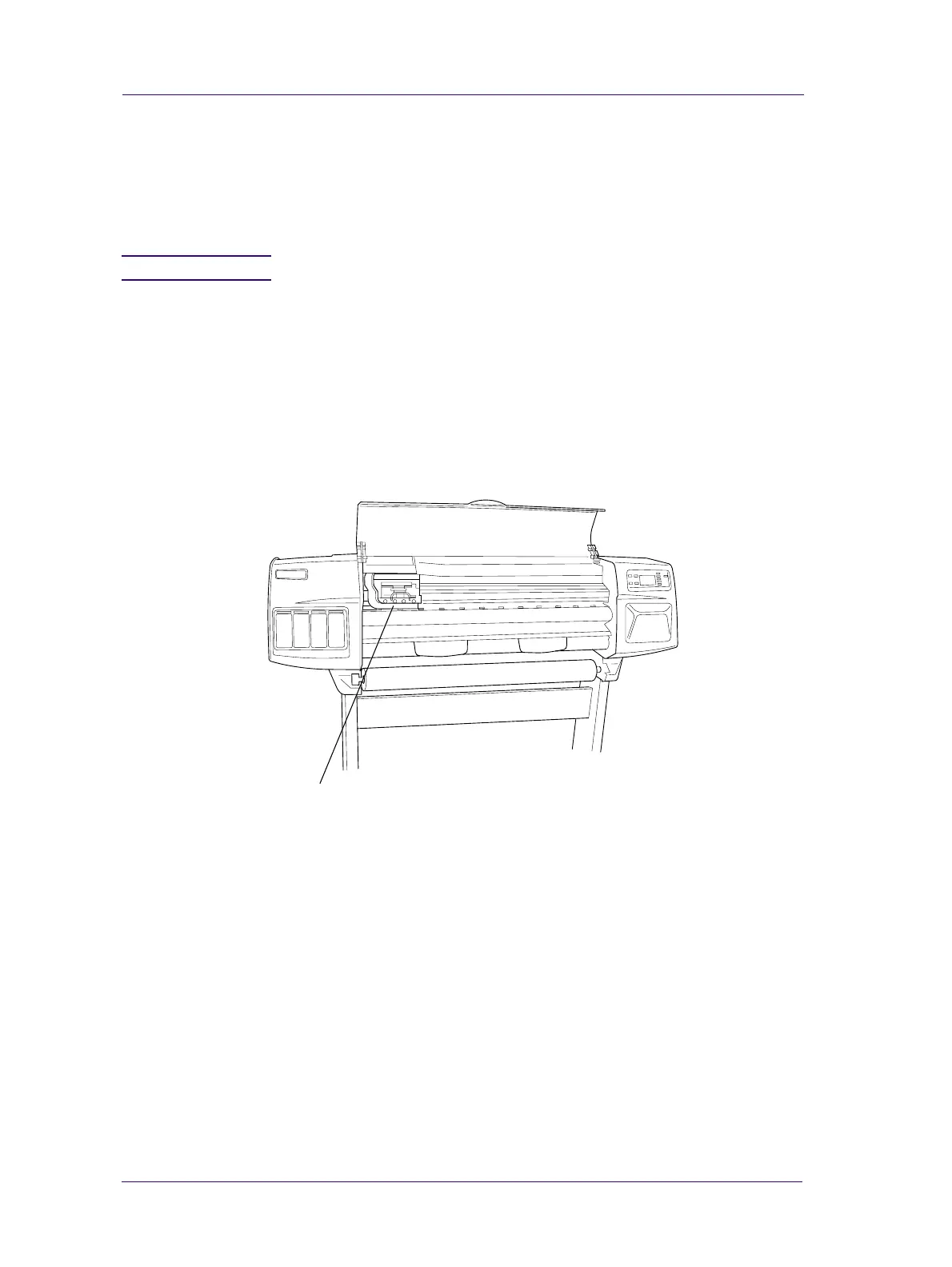

Figure 41: Carriage Assembly and Belt
Printhead tube connector
