Removal and Installation
8-52
HP DesignJets 1050C and 1055CM Printers Service Manual

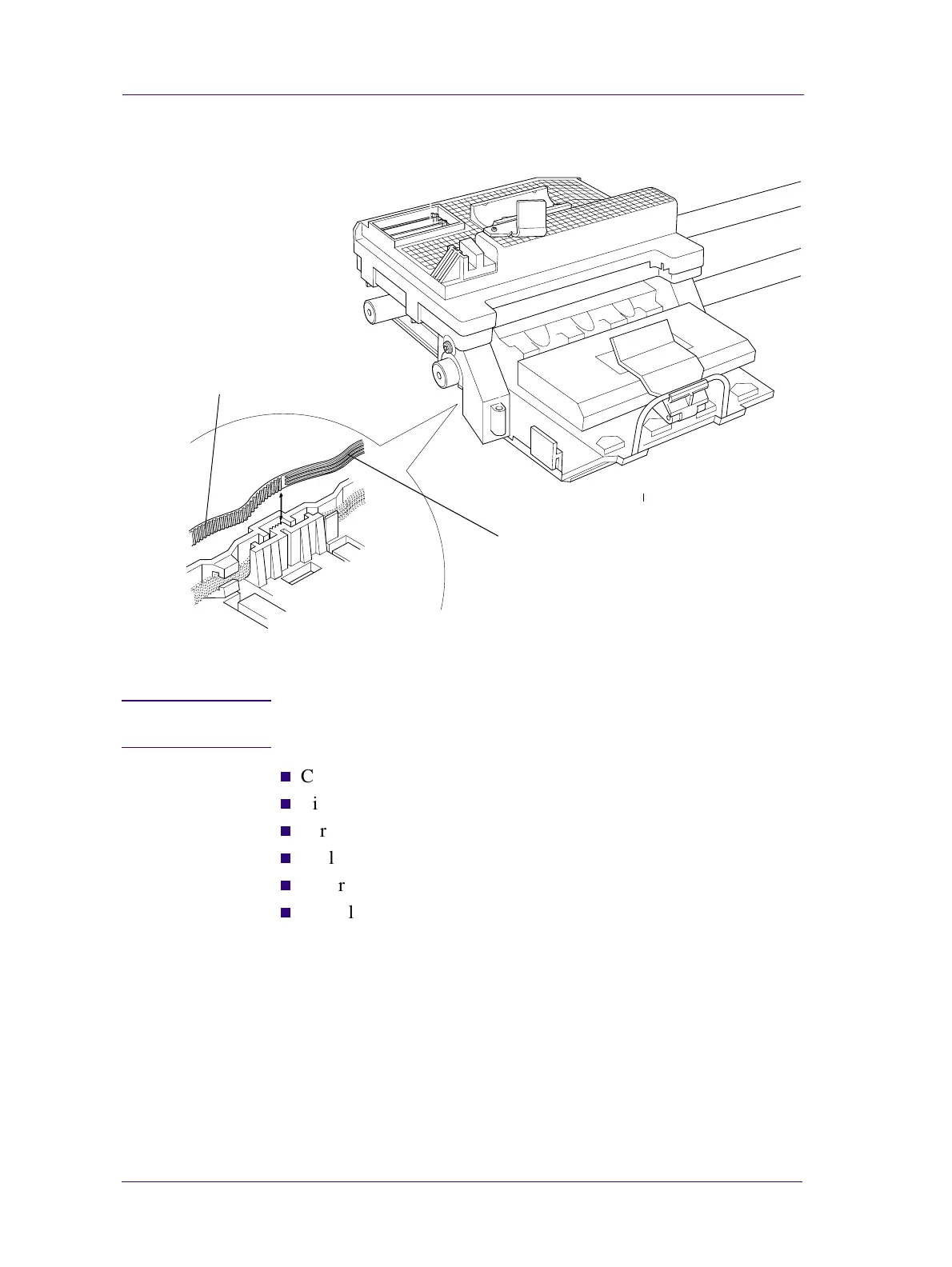

3. When installing the belt, make sure it is not twisted and is installed
in the correct orientation as shown in Figure 51.
Figure 51: Belt Installation
NOTE You must perform the following Service Calibrations after the
installation of the Carriage Assembly.
n
Carriage Height Calibration ⇒ Page 5-24.
n
Line Sensor ⇒ Page 5-9.
n
Service Station ⇒ Page 5-11.
n
Roller Mark Position ⇒ Page 5-13.
n
Color to Color Calibration ⇒ Page 5-16.
n
Pen Alignment ⇒ Page 5-22.
Installed in the direction
of the Scan-Axis Motor
Installed in the direction
of the Tensioner Assembly
C607442
